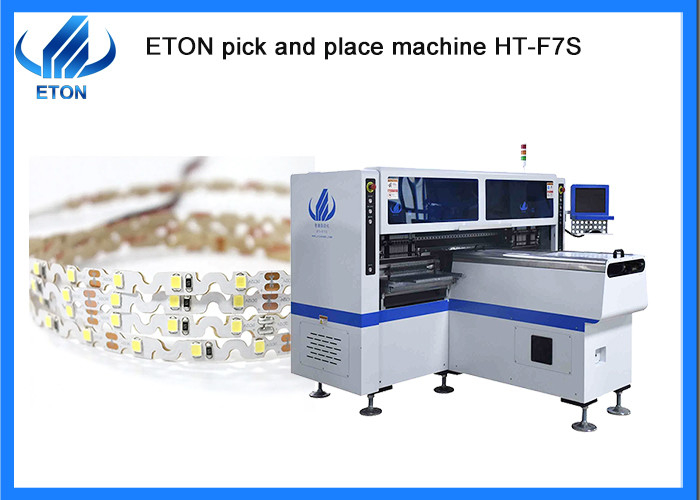

LED Chip Resistor Group Mounting 180000CPH SMT Placement Machine

Large Image : LED Chip Resistor Group Mounting 180000CPH SMT Placement Machine

Product Details:

Place of Origin:	China
Brand Name:	ETON
Certification:	CE,CCC,SIRA,ISO
Model Number:	HT-F7S
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Packing in film package and foam cotton, and covering vacuum bag within sturdy wooden boxes.
Delivery Time:	30 working days
Payment Terms:	T/T
Supply Ability:	50 sets per month

Contact Now

Detailed Product Description

Warranty:	1 Year	Applicable Components:	0603
Name:	SMT Pick And Place Machine	Application:	SMD Production Line
Power Supply:	380AC 50HZ	Condition:	New
Weight:	1700KG	Mounting Speed:	150000-180000 CPH
Highlight:	180000 CPH SMT placement machine , Group Mounting SMT Placement Machine , Resistor SMT Placement Machine

LED chip resistor group mounting 180000CPH SMT placement machine

Production description

Dual arm professional high-speed mounter, mounting 2-4 types of materials at the same time capacity reach 180000 CPH.

Features

Apply to the 0.6m, 0.9m, 1.2m rigid PCB and 0.5m, 1m LED flexible strip, producing with 4 types materials at the same time with high capacity, available for board with any proportion of LED chip and resistor.
Dual arm four module, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
Calibration automatically, high precision, available for RGB.
Exclusive patent technology: Group picking and group mount placing.
IPC9850 capacity: 150000-180000 CPH

Machine parameter

Model	HT-F7S
Dimension	270023001550mm
Total weight	1700kg
PCB length width	Max: 1200330mm Min: 100100mm
PCB thickness	0.5-5mm
PCB clamping	Adjustable pressure pneumatic
Mounting mode	Group picking and group placing
Mounting precision	±0.02mm
Mounting speed	150000-180000 CPH
No. of feeders station	68 PCS
No. of head	34PCS

Machine main part

LED Chip Resistor Group Mounting 180000CPH SMT Placement Machine 0

Service

Free Installation: provide free installation machine to ensure smooth production

Free Warranty:1 year warranty factory service, free replacement of space parts

Free Training: Professional training of operating and maintenance

Free Technical Support: 7*24 technical online support

Free Software Upgrade: Offer free software upgrade whole lifetime

LED Chip Resistor Group Mounting 180000CPH SMT Placement Machine 1

Shipping and Delivery

Land transportation: suitable for inland countries and it is affordable;

Air freight: for urgent good, and it is the most expensive transportation way;

Shipping: It’s suitable for heavy goods, and the convenience and lower cost of shipping which is easy for clients to accept the arrival time of the goods.

LED Chip Resistor Group Mounting 180000CPH SMT Placement Machine 2
