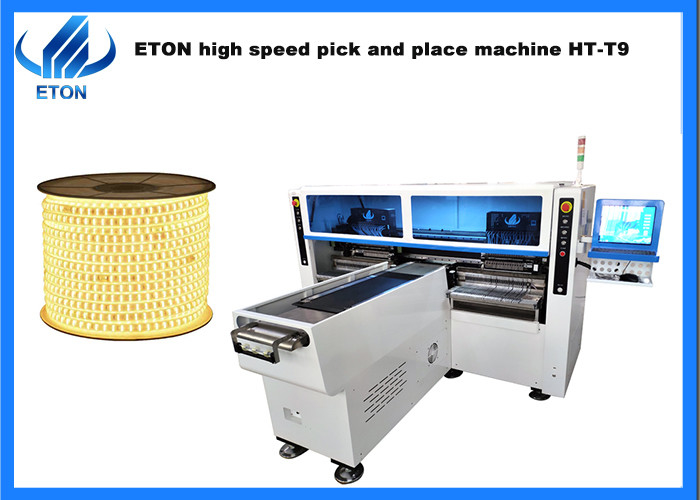

68 Heads Any Length Flexible Strip Mounting Machine SMT Placement Machine

Large Image : 68 Heads Any Length Flexible Strip Mounting Machine SMT Placement Machine

Product Details:

Place of Origin:	China
Brand Name:	ETON
Certification:	CE,CCC,SIRA,ISO
Model Number:	HT-T9
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Packing in film package and foam cotton, and covering vacuum bag within sturdy wooden boxes.
Delivery Time:	30 working days
Payment Terms:	T/T
Supply Ability:	50 sets per month

Contact Now

Detailed Product Description

Power Consmption:	6kw	Software:	R&D Independently
Feeders Station:	68PCS	Power:	380AC 50HZ
Warranty:	1 Year	Name:	SMT Pick And Place Machine
Application:	LED Strip	Condition:	100% Original
Weight:	3100 Kg	Mounting Speed:	200000-250000 CPH
Highlight:	Any Length Flexible Strip Mounting Machine , 68 heads Flexible Strip Mounting Machine , Flexible Strip Mounting SMT Placement Machine

SMT 68 heads any length flexible strip mounting placement machine

Description

Features

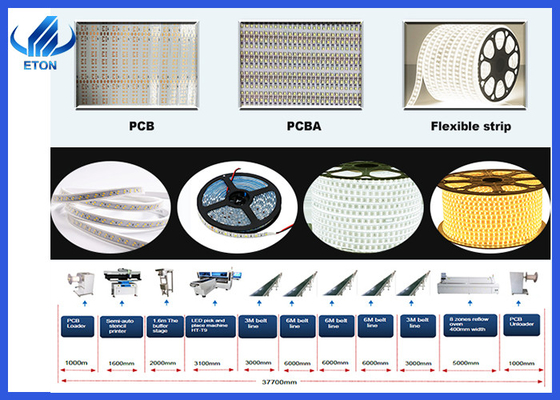

Producing with Producing 4 types materials at the same time with high capacity, available for 5M, 50M or any length of Flexible strip and Roll to roll.
Dual arm four modul, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
Calibration automatically, high precision, available for RGB.
Exclusive patent technology: Group to pick and group to mount.

IPC9850 Capacity: 200000~250000 CPH

Patent number: ZL 2011 2 0237740.9/ ZL 2011 2 0334606.0/ ZL 2012 20178869.1/ ZL 2012 2 0415505.0/ZL 2012 20415044.7/ZL 2012 2 0415356.8/ ZL 2012 2 0415061.0

Technical parameter

Model	HT-T9
Dimension
Length	3100mm
Width	2300mm
Height	1550mm
Total Weight	1700kg
PCB
PCB Length Width	250mm*any length
PCB Thickness	0.5-1.5mm
PCB Clamping	Adjustable pressure pneumatic
Mounting Mode	Group to take and group to mount
O.S.
System	Windows7
Software	R&D independently
Display	Touch screen monitor
Input Device	Keyboard, Mouse
Vision System
No. of Camera	5 PCS ( Digital camera)
No. of Camera	Vision alignment, MARK correction
Mounting Precision	±0.02mm
Mounting Height	≦5mm
Mounting Speed	200000~250000 CPH
Components	LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc.
Components Speed	0.5mm
No. of Feeders Station	68 PCS
No. of nozzles	68 PCS
Power	380AC 50 HZ
Power Consumption	6kw
Operating Environment	23℃±3℃
Conveyor transmission	Max Length :1000 mm
Electrical control	Independent research and development by ETON
Motion control card module 1 set	Independent research and development by ETON
X,Y,Z Axis Drive way	High-end magnetic linear motor+ servo motor
Feeding way	Electric feeder with double motor

Service

Professional solutions: Provide professional SMT Full line solutions
Free Warranty: One-year warranty factory service. All parts damaged within the warranty period shall be replaced free of charge
Free Installation: On-site free installation to ensure smooth production.
Free Technical Training: Professional training of operating and maintenance.
Free Technical Support: 7 * 24 technical online support.
Free Software Upgrade: Offer free software upgrade whole lifetime

68 Heads Any Length Flexible Strip Mounting Machine SMT Placement Machine 0

Shipping and Delivery

Land transportation: suitable for inland countries and it is affordable;

Air freight: for urgent good, and it is the most expensive transportation way;

Shipping: It’s suitable for heavy goods, and the convenience and lower cost of shipping which is easy for clients to accept the arrival time of the goods.

68 Heads Any Length Flexible Strip Mounting Machine SMT Placement Machine 1

Related machine

68 Heads Any Length Flexible Strip Mounting Machine SMT Placement Machine 2
