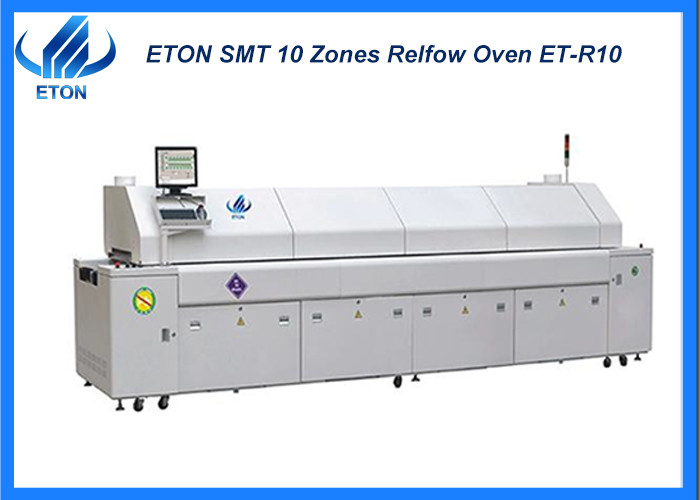

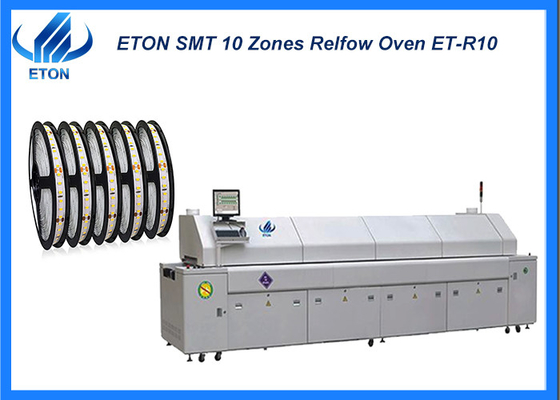

10 Heating Zones 50-700mm PCB Reflow Oven SMT Production Machine

10 Heating Zones 50-700mm PCB Reflow Oven SMT Production Machine
10 Heating Zones 50-700mm PCB Reflow Oven SMT Production Machine

Large Image :  10 Heating Zones 50-700mm PCB Reflow Oven SMT Production Machine

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CE,CCC,SIRA,ISO
Model Number: ET-R8
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Packing in film package and foam cotton, and covering vacuum bag within sturdy wooden boxes.
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Usage: SMT Rflow Oven Machine Operating Environment: 7KW
Applly: SMT Production Line Dimension: 5000mm*1000mm*1500mm
Model: ET-R8 Machine Weight: 1200kg
Power: 380V 50/60Hz Three-phase Five-wire AC:380V 50Hz Heating Time: Around 15 Mins
Highlight:

SMT production machine pcb reflow oven

,

10 heating zones pcb reflow oven

,

700mm pcb reflow oven

10 heating zones for 50-700mm pcb reflow oven SMT production machine



Description

Unique advanced long-life heating system

Adopt American HELLER world leading hot air circulation heating method, high-efficiency pressurized accelerating air duct, greatly increase circulating hot air flow, rapid temperature rise (about 20 minutes), high thermal compensation efficiency, high temperature welding and curing can be carried out; each temperature zone is set There are independent temperature sensing sensors, real-time monitoring and compensation of the temperature balance of each temperature zone; special pressurized air transport structure and special-shaped heating wire design, no noise, no vibration, with high heat exchange rate, The temperature difference it is extremely small between BGA bottom and PCB board, which is most in line with the strict requirements of lead-free process, especially for lead-free products with difficult soldering requirements.



Technical parameter:

NO. of heating zone

10 hot air circulation heating zones on the top and 10 hot air circulation heating zones on the bottom.

heating method

Flat-wound heating wire on both sides, pressurized air duct, point-to-point variable frequency motor heat exchange method, variable frequency motor drive

Length of heating zone

3900MM

NO. of cooling zone

2(Natural air cooling system)

Length of cooling zone

1100MM

Conveyor belt width

700MM

PCB size

50-700mm

PCB height

Up:25mm down:20mm max:45mm

Transport direction

left-right(right-left) Optional

Delivery method

Mesh belt +Chain

Conveyor belt height

900±20MM

PCB transportation speed

0～1.8m/min

Market

ETON is a leading SMT high speed pick and place machine manufacturer in China, and we also provide whole line solution with peripheral devices as stencil printer, conveyor, glue dispenser, transitional and reflow oven etc.

10 Heating Zones 50-700mm PCB Reflow Oven SMT Production Machine 0

Related machine

ETON is a leading SMT high speed pick and place machine manufacturer in China, and we also provide whole line solution with peripheral devices as stencil printer, conveyor, glue dispenser, transitional and reflow oven etc.

10 Heating Zones 50-700mm PCB Reflow Oven SMT Production Machine 1

Exhibition

Our company has participated in various exhibitions in foreign countries, including India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc.

10 Heating Zones 50-700mm PCB Reflow Oven SMT Production Machine 2
