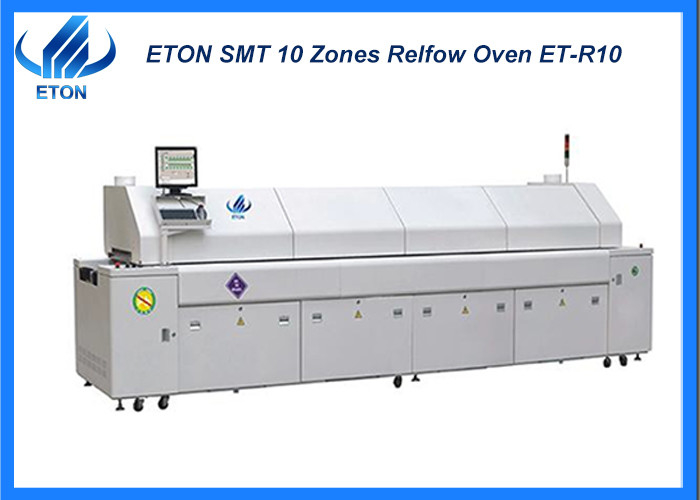

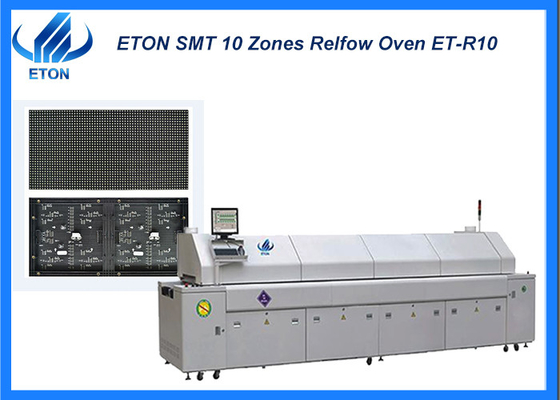

SMT line 10 zones for PCB soldering reflow 10 zones oven machine
Description
Cooling and convenient flux recovery system
1. The forced cooling system adopts two-stage forced air cooling temperature zone to meet the lead-free process; the cooling curve is smooth, without abrupt change, full heat exchange, the slope can be controlled by frequency conversion, the tin point is smooth and bright, and the maximum cooling rate can reach -5℃ /S.
2. The flux collection system can keep the furnace clean for a long time, and the exhaust gas emission is more environmentally friendly. The gas separated in the nitrogen furnace can be recycled to save nitrogen.
3. No filter element design, easy to clean.
| Technical parameter: |
| NO. of heating zone |
10 hot air circulation heating zones on the top and 10 hot air circulation heating zones on the bottom. |
| heating method |
Flat-wound heating wire on both sides, pressurized air duct, point-to-point variable frequency motor heat exchange method, variable frequency motor drive |
| Length of heating zone |
3900MM |
| NO. of cooling zone |
2(Natural air cooling system) |
| Length of cooling zone |
1100MM |
| Conveyor belt width |
700MM |
| PCB size |
50-700mm |
| PCB height |
Up:25mm down:20mm max:45mm |
| Transport direction |
left-right(right-left) Optional |
| Delivery method |
Mesh belt +Chain |
| Conveyor belt height |
900±20MM |
| PCB transportation speed |
0～1.8m/min |
| PCB temperature deviation |
±2℃ |
| Temperature control method |
±1-2℃(Static) |
| Temperature control range |
Room temperature～350℃ can be set |
| Applicable solder type |
Lead-free solder/leaded solder |
| Temperature control method |
PID+SSR |
| Types of components used |
CSP,BGA,μBGA,0201chip Single/double panel |
