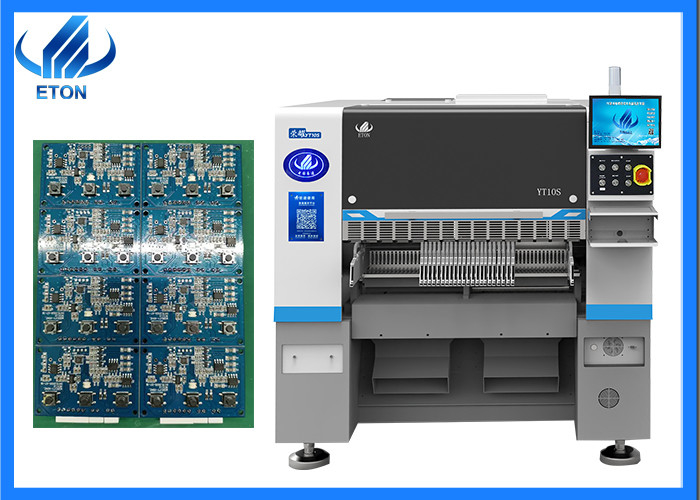

2024 New model Min 0201 components LED driver SMT placing machine
Machine main features
1.X,Y,and Z axis all adopt self-developed high-end magnetic linear motor
2.Flexible PCB handling capabilities, multi-station,multi-material mounting
3.Y axis adopts double drive gantry structure
4.Support automatic replacement nozzle function(option)
5.Apply to 0201~35*35mm tape reel package and IC tray feeder
● Brand new self-developed high-precision placement head.
● Combining high-accuracy mark recognition camera with a fixed-flight vision camera to ensure placement accuracy.
● The placement head adopt independent vacuum detection,improve placement performance.
● Off-line programming,saves time during changeover cycles.
● The software includes Al Deep Learning and Automatic Optimization functions.
● Supports providing an MES system interface.
● Equipped with coordinate import function.
Machine main parameter
| Model |
YT10S |
| Dimension |
| Length |
1480mm |
| Width |
2020mm |
| Height |
1650mm |
| Total Weight |
2380kg |
| PCB |
| PCB Length Width |
Max:500*450mm(1200*450 option) Min:50*50mm |
| PCB Thickness |
0.5-5mm |
| PCB Clamping |
Cylinder clamping, track width adjustable |
| Mounting Mode |
Group picking and separate placingseparate picking and separate placing |
| O.S. |
| System |
Windows7 |
| Software |
R&D independently |
| Display |
LED monitor |
| Input Device |
Keyboard, Mouse |
| Vision System |
| No. of Camera |
1 PCS (Head flight vision camera) |
| 2 PCS Mark camera |
| Mounting Precision |
CHIP±0.03mm QFP±0.025mm Cpk ≧1.0 (3σ) |
| Mounting Height |
≦16mm(Other height can be customized) |
| Mounting Speed |
48000 CPH(Under best condition) |
| Components |
0201~15MM packaging material and IC material(Optional fixed camera for 0201~35*35MM), Other component size can be customized |
| Components Space |
0.2mm |
| No. of Feeders Station |
52 PCS (104 PCS option) |
| No. of nozzles |
10 PCS |
| Power |
220AC 50HZ |
| Power Consumption |
1.5kw |
| Operating Environment |
23℃±3℃ |
| Transmission Speed |
＞1000mm/sec |
| Transmission Direction |
Single(left→ right or right→ left) |
| Transmission Mode |
Online drive |
| Position Mode |
Optical |
| Gas consumption |
0.4-0.6mpa (4-6kgf/cm2)600N/min |
| Electrical control |
Independent research and development by ETON |
| Motion control card module 1 set |
Independent research and development by ETON |
| X,Y,Z Axis Drive way |
High-end magnetic linear motor |
| Feeding way |
Intelligent feeder with double motor |
| Production management MES system interface |
Customized |
Our advantage
ETON is the pioneer of SMT machine field in China which have more than 20 years experiences. And owned CCC, SIRA, CE certificates with 14 invention patents, 135 practical patents, 55 software copyrights of intellectual property technologies.
Related machine

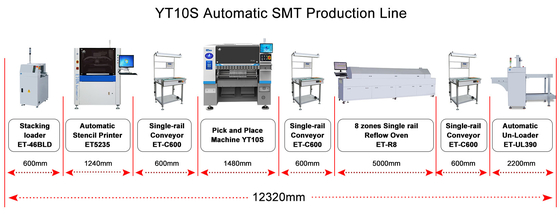

We can provide a whole SMT production line,led light production line:
