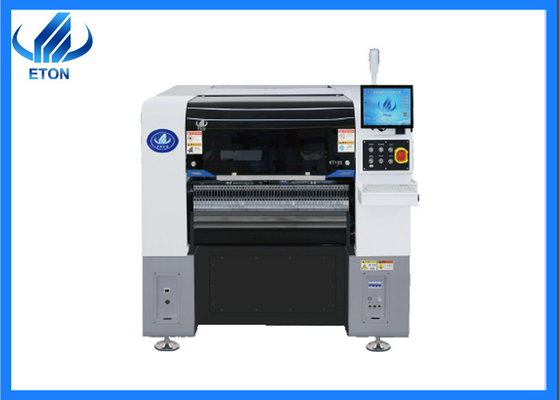

SMT Mounting Machine KT10S Precsion CHIP±0.03mm & Speed 48000CPH pick and place machine
Machine main parameter
| Model |
KT10S |
| Dimension |
1490*2020*1650mm |
| Total weight |
2080kg |
| PCB size |
Max:500*470mm(Length can be customized) Min:50*50mm |
| PCB thickness |
0.5-5mm |
| Mounting precision |
CHIP±0.03mm, QFP±0.025mm, Cpk≧1.0(3σ) |
| Mounting speed |
48000 CPH(Optimal speed) |
| Components |
LED, capacitor, resistors, shaped components,etc |
| Power consumption |
220AC 50HZ 1.5KW |
| Feeder station |
52 PCS(option 104 PCS), IC tray option |
| No. of head |
10 PCS |
Machine main features
Single module X,Y,Z axis high-end magnetic linear motor, high precision than classic model
Y axis double drive gantry, higher speed more stability
The placement head adopt independent vacuum detection, improve the placement performance
Off-line programming, save time of changeover cycle
Equipped coordinate import function, more intelligent
DOB Bulb making machine line
The equipment required for the semi-automatic production line includes:
Semi-automatic printing machine: the solder paste is printed on the PCB pad through the stencil;
Pick and place machine: mount the led chips or other components on the designated position on the PCB board;
Reflow oven: melting the solder paste to make it adhere to the mounting components;
Conveyor: inspect the placement and soldering quality, and also play a role in transferring PCB boards and buffering on the SMT production line
Company Information
✬Our company ETON is the largest manufacturer of high speed pick and place machine.We start from 2011,around 8 years.ETON’s original manufacturing plan, the pursuit of rigorous quality management and perfect after-sales service, provide customers with professional production lines and provide technical support.
✬Our company has obtained CCC, CE, SIRA certificates, and not only these, our company has successively won the National High-tech Enterprise, 2015 LED Technology Innovation Award, Industry Special Contribution Award and so on.
Service
※ Maintenance period 1year
One year warranty, during warranty, any parts need to be repaired and replaced will be free.
※ Software and hardware lifetime maintenance
Free upgrade software, software is Reach and develop by ETON, so we support whole lifetime free upgrade updates.
※ Visit customers regularly and gather information
Visit clients regularly. We attend different exhibition in different cities every year, at the same time, we will visit local clients and support our service and collect and feedback customer suggestions in time.
※ Provide latest information about technology and equipment
We give professional technology suggestion with our clients.And share the updates news to our clients
FAQ
Q:Is it safe during the delivery?
A:All the machine is packed safely,by standard strong wooden carton with vacuum package.
Q:What is your transportation?
A:Sea transportation,land carriage and air transportation is OK.
Q:4.How is your training?
A:We will send our engineer to your factory to install machine and training freely.If client is India,we have service office in India,can support quickly.
Q:If I have no experience,The machine is easy to use?
A:Yes,our machine is designed to use easily,usually 3 to 5 days to learn how to operate.
