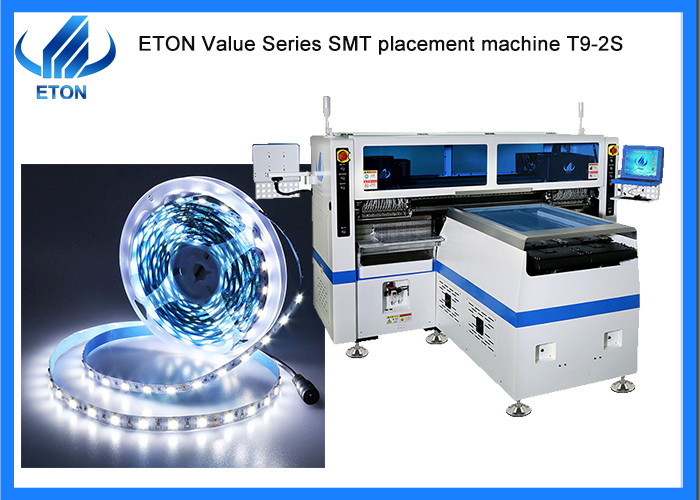

Factory direct delivery SMT strip roll to roll whole line solution machine

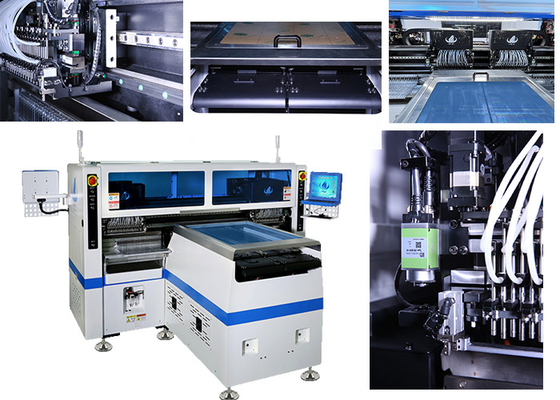

Machine main features

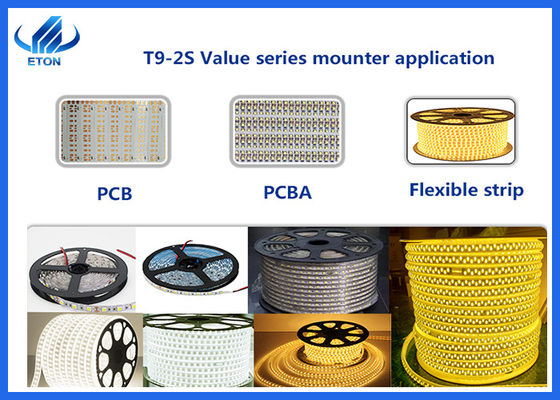

- Wide components range: High speed modular heads apply to LED 3014/3020/2835/5050 and resistors, capacitors, bridge rectifiers etc.
- Unique design component leaking detection and individual component refill function. Recognition camera record the component leaking position of PCB, and fill the missing component accordingly.
- Ultra high speed capacity: 500,000 CPH
- Intelligent electric feeder,supporting high-speed machine series.
- Adjust the conveying platform according to various roll to roll strip, range 250±10 mm, the max length range is 1M per cycle.
- The distance of feeder station can be flexibly adjusted to achieve group picking and group placing, so as to realize the function of two time picking and once placing.
- The range of feeder station is double of placement four kinds of materials at the same time.
- Automatic production with identification date, correction and fill missing component automatically.
- Flight recognition camera, no pause to detect the presence or absence of components, component adsorption state, prevent placement errors.
- The clamping rod is driven by the air cylinder to correct the materials taken by mounting head.
- With the function of filling missing component automatically, realize industry 4.0 Unmanned Workshop.
- Complaint with CE standards.
Machine main parameter
| Model |
T9-2S |
| Dimension |
(L)3454*(W)3035*(H)1777 mm |
| Total weight |
3100 kg |
| PCB size |
250(±10)mm* Any length |
| PCB thickness |
0.1-0.5 mm |
| PCB clamping |
Vacuum adsorption, cylinder clamping, track width adjustable |
| Mounting way |
Group picking and group placing |
| Mounting mode |
Double rail + Four groups of placement heads |
| No. of camera |
10 sets (Digital camera) |
| Software |
R&D independently |
| Repeat precision |
±0.05 mm |
| Mounting height |
≦5 mm |
| Mounting speed |
Double side: 500,000 CPH
Single side: 250,000 CPH (Optimum speed)
|
| Components range |
LED 3014/3020/2835/5050 and resistors, capacitors, bridge rectifiers etc. |
| Power consumption |
9.6 KW |
| No. of feeder station |
Double side: 136 PCS (Single side: 68 PCS) |
| No. of nozzles |
Double side: 136 PCS (Single side: 68 PCS) |
SMT Line solution
Our Exhibitions
As an experienced company of trading SMT pick and place machine with more than 30 countries and regions aboard, Eton has participated in many exhibitions of foreign countries, such as India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc. And also we have took part in our domestic exhibition, like Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED light Exhibition, etc.
Service
Visit customers regularly and gather information
Visit clients regularly. We attend the different exhibitions in different cities every year, at the same time, we will visit local clients and support our service and collect feedback on customer suggestions in time.
Provide the latest information about technology and equipment
We give professional technology suggestions to our clients. And share the updated news with our clients
On-site service
We have some official site in India as Mumbai and New Delhi, also have site in Egypt, Turkey that can provide service timely with our engineers.
According to your needs, dedicated senior engineer will come to your factory for free install and training you how to operate the machine.
FAQ
Q. What components is your machine mainly mounted?
A. For the multifunctional pick and place machine that can mount IC, LED chip, resistors, capacitors and shaped components like lens. High speed mounter machine mounting components are LED3014/3020/35285050, resistors, capacitors and rectifiers.
Q. How is the differences of your multifunctional machine and high-speed machine?
A. The mounting mode of multifunctional and high speed machine which decides the range of their mounting products, and the mounting capacity is to distinguish this two types of the machine, such as multifunctional pick and place machine KT10S with capacity of 48000 CPH, while high speed mounter machine T9-2S with 500000 CPH capacity.
Q.How can I make inspection when something wrong with the machine?
A. Well, the inspection is taken by our professional engineer to check and modulate the machine, if you counter any problem of our machine please contact us, and we will arrange our engineer to solve it.
