Smt Pick And Place Machine 10 head 48000cph in Led Light Assembly production line
Features of smt machine

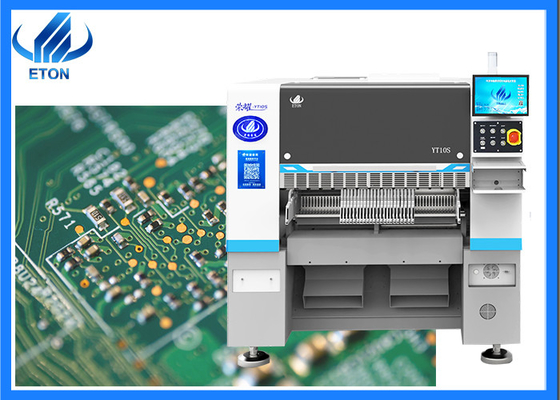

YT10S pick and place machine in full automatic smt line
● Brand new self-developed high-precision placement head.
● Combining high-accuracy mark recognition camera with a fixed-flight vision camera to ensure placement accuracy.
● The placement head adopt independent vacuum detection,improve placement performance.
● Off-line programming,saves time during changeover cycles.
● The software includes Al Deep Learning and Automatic Optimization functions.
● Supports providing an MES system interface.
● Equipped with coordinate import function.
| PCB Size |
500*450mm |
| heads |
10PCS |
| Feeder station |
52PCS |
| Components |
0201~15MM packaging material and IC material(Optional fixed camera for 0201~35*35MM), Other component size can be customized |
| X,Y,Z Axis Drive way |
High-end magnetic linear motor |
| Mounting Speed |
48000 CPH(Under best condition) |
The pictures of SMT machine
Full automatic SMT Line

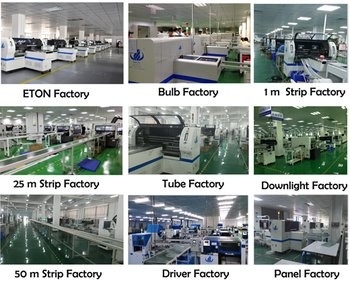

Company Introduction
Efficient team: The best suggestions of full SMT lineequipment according to your budget and site.
Competitive price: We are directly manufacture of the ETON pick and place machine, so we can give you the best competitive price with high quality materials.
High quality: We have strictly quality control during allproduction from raw materials to the finished machine.
High efficiency: Allmachines parts are made byourselves, so it" s convenient to control the timeschedule and quality timely
Service ETON
We can provide you with excellent service, we also have professional overseas engineers to your factory provide install, training service until you can operate the machine adroitly.
1.We can provide you with the whole production line.
2.Our software is R&D independently.We can offer software upgrade for lifetime for free
3.We have 50,000 square meters of industrial park. The production strength is abundant, occupies the first place in the domestic profession.
4.If you have any problem with the product, we will have overseas engineers come to your home for free repair or replacement within one year. Because we have offices overseas and local engineers.
Reasons for PCB board bending
In the SMT process, the circuit board is prone to warping when it is reflowed, and in severe cases, it may even cause defects such as empty soldering of components and tombstones.
The reasons for the warping of the PCB board may be different, but in the end, it should be attributed to the fact that the stress applied to the PCB board is greater than the stress that the board material can withstand. When the ability of a place to resist stress is not uniform, the result of PCB board warpage will occur.
NO.1 The copper surface area on the circuit board is not uniform, which will worsen the warpage of the PCB board
NO.2 The vias on each layer of the circuit board will limit the expansion and contraction of the board
NO.3 The weight of the circuit board itself will cause the board to warp and deform
NO.4 The depth of V-Cut and the connecting strip will affect the amount of panel deformation
