High efficiency Full-automatic 250000 CPH pick and place machine for Led tube/strip /panel lamp
The function of highspeed led mounting machine
The function of led chip mounter machine is mounting the components(led chip/ resistor/ capacitor/ ic/ shaped components etc) on the PCB. The led chip mounter machine is the main equipment in the SMT line, and also it influence whole SMT line capacity.
The features of ETON highspeed led mounting machine
Apply to the 0.6m, 0.9m,1.2m rigid PCB and 0.5m,1mLED flexible strip. Producing with 4 types materials at the same time with high capacity, available for board with any proportion of LED chip and resistor.
Dual arm four module, 17 nozzles for each mounting part, part A/B/C/D can be mounted separately or synchronously.
Calibration automatically, high precision, available for RGB.
Exclusive patent technology:Group to take and group to mount. smt assembly equipment
Machine parameter
| Model |
HT-F9 |
| Dimension(L*W*H) |
2700*2300*1550mm |
| Weight |
1700kg |
| PCB length width |
Max:1200*330mm;Min:100*100mm |
| PCB thickness |
0.5~5mm |
| Mounting precision |
±0.02mm |
| Mounting mode |
Group to take and group to mount |
| Mounting height |
≤5mm |
| Mounting speed |
250000 CPH |
| Power consumption |
6KW |
| No. Of feeders station |
68 PCS |
| No. Of head |
68 PCS |
Application
Apply to the 0.6m,0.9m,1.2m rigid PCB and 0.5m,1m Led flexible strip.

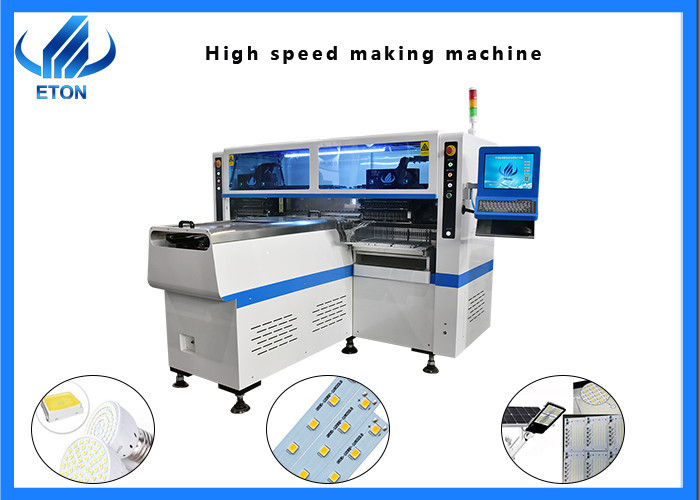

F9 as the high speed mounter machine , widely apply to many kind of led linear module, such as the strip light, panel light, tube light, etc.
ETON Advantages
1. SMT equipment: Pick and place machine/reflow oven/stencil printer/pcb conveyor/SPI/AOI.etc
2. Light Factory for :led bulbs,DOB,lens,panel light,downlight,streetlight,tube,0.5m,1m strip light,etc.
3. Provide Overseas engineers for Free installation and free training.
4. TOP brand of China SMT machine manufacturer,500 employees for ETON
5. Oversea market:The products exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc.
Shipping and Delivery
※ By air, for sample and small package
※ By sea, for large package and quantity;
※ Other ways as customer requested.
Delivery Time:
※ Within 30 Days.
Related machine
We can provide a whole SMT production line,led light production line:
1.Pick and place machine
2. Loader machine
3. Conveyor machine
4. Stencil printer machine
5. Reflow oven machine
6. Unloader machine
7. Solder paste mixer
8. Roll to roll led strip light assembly machine
Certificates
ETON s not only in the leading position in the field of photoelectric high speed placement machines, but also has made breakthrough progress in the field of smt high speed placement machine, it has successfully developed a variety of cost effective smt high speed universal placement machines.
ETON has obtained a number of intellectual property technologies,total 133 patents, including 9 invention patents, 112 practical patents, 12 software copyrights, also earned the oversea certificates as CE, CCC, SIRA,etc.
FAQ
1. What are the main components the pick and place machine can mount?
It is available for all kinds of components, including LED chip, resistors, capacitors, IC,shaped component and so on.
2. Do you provide the complete production line machine?
Yes, of course. We provide the whole production line machine, including solder paste printer machine, conveyor, pick and place machine reflow oven.
3. How about the operating software?
Our software is R&D independently by ourselves.
4. Do you provide personal customization?
Yes, of course. contact the sales specialist to customize the equipment for you.
5. If I don't know how to operate the machine what should I do?
Don't worry about it. We will provide the detailed operation instructions, and part of area will provide oversea engineer teaches the operation door-to-door.
