1. X,Y,Z axis all adopt self-developed high-end magnetic linear motor,Dual track and dual gantry,built-in monorail transplanting module
2. Total 20 heads,each nozzle can independently test CPK;and the optimum speed 98000CPH.
3. Apply to 0201~40*40mm tape reel package and IC tray feeder
4. Option function:support automatic nozzle change function;Support IC Cabinet&Feeder cart.
| PCB Size |
500*450mm |
| heads |
20PCS |
| Feeder station |
104PCS |
|
Components
|
0201~15MM packaging material and IC material(Optional fixed camera for 0201~40*40MM), Other component size can be customized
|
|
X,Y,Z Axis Drive way
|
High-end magnetic linear motor
|
|
Mounting Speed
|
98000 CPH(Under best condition)
|
International Invention Patent:Placement Head
Integrated Placement head
Light weight,with an integrated head design,and 10 sets of Z axis independently controlled by modular magnetic linear motors,resulting in significant improvements in speed ,accurary,and stability.
Precise Corner System
The modular corner system independently controls the angle of each component to ensure high precision placement.there are 10 suction nozzles per head,with a center distance of 16mm.
Vision System
The integrated high speed and precise flying recognition camera enhances recognition accuracy,recognize during X and Y axis movement to once again improve placement efficiency.
Ultra-high speed Capability
Adopting high-end magnetic linear motors and a multi-function modular head,the placement capability has increased 25% compared to traditional machines,with an optimum placement speed reaching 98000CPH

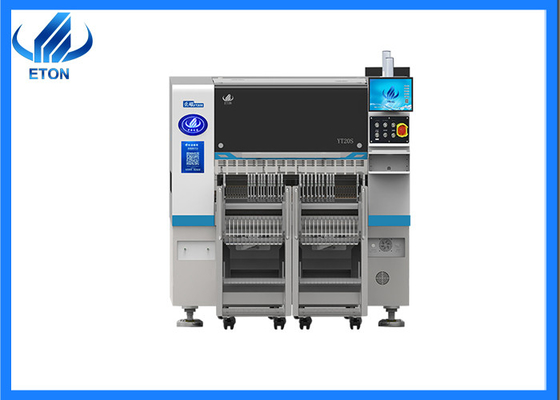

Application of YT20S SMT machine
Full Automatic SMT line Solution suitable for Power drver,3C products,electric board,led lighting,etc
Service ETON
※ Maintenance period 1year
One year warranty, during warranty, any parts need to be repaired and replaced will be free.
※ Software and hardware lifetime maintenance
Free upgrade software, software is Reach and develop by ETON, so we support whole lifetime free upgrade updates.
※ Visit customers regularly and gather information
Visit clients regularly. We attend different exhibition in different cities every year, at the same time, we will visit local clients and support our service and collect and feedback customer suggestions in time.
※ Provide latest information about technology and equipment
We give professional technology suggestion with our clients.And share the updates news to our clients
