5m 10m 20m 50m LED flexible strip solution SMT placement machine
Description
- Producing with Producing 4 types materials at the same time with high capacity, available for 5M, 50M or any length of Flexible strip and Roll to roll.
- Dual arm four module, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
- Calibration automatically, high precision, available for RGB.
- Exclusive patent technology: Group to pick and group to mount.
IPC9850 Capacity: 200000~250000 CPH
Patent number: ZL 2011 2 0237740.9/ ZL 2011 2 0334606.0/ ZL 2012 20178869.1/ ZL 2012 2 0415505.0/ZL 2012 20415044.7/ZL 2012 2 0415356.8/ ZL 2012 2 0415061.0
Technical parameter
| Model |
HT-T9 |
| Dimension |
| Length |
3100mm |
| Width |
2300mm |
| Height |
1550mm |
| Total Weight |
1700kg |
| PCB |
| PCB Length Width |
250mm*any length |
| PCB Thickness |
0.5-1.5mm |
| PCB Clamping |
Adjustable pressure pneumatic |
| Mounting Mode |
Group to take and group to mount |
| O.S. |
| System |
Windows7 |
| Software |
R&D independently |
| Display |
Touch screen monitor |
| Input Device |
Keyboard, Mouse |
| Vision System |
| No. of Camera |
5 PCS ( Digital camera) |
| Vision alignment, MARK correction |
| Mounting Precision |
±0.02mm |
| Mounting Height |
≦5mm |
| Mounting Speed |
200000~250000 CPH |
| Components |
LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc. |
| Components Speed |
0.5mm |
| No. of Feeders Station |
68 PCS |
| No. of nozzles |
68 PCS |
| Power |
380AC 50 HZ |
| Power Consumption |
6kw |
| Operating Environment |
23℃±3℃ |
| Conveyor transmission |
Max Length :1000 mm |
| Electrical control |
Independent research and development by ETON |
| Motion control card module 1 set |
Independent research and development by ETON |
| X,Y,Z Axis Drive way |
High-end magnetic linear motor+ servo motor |
| Feeding way |
Electric feeder with double motor |
Machine application

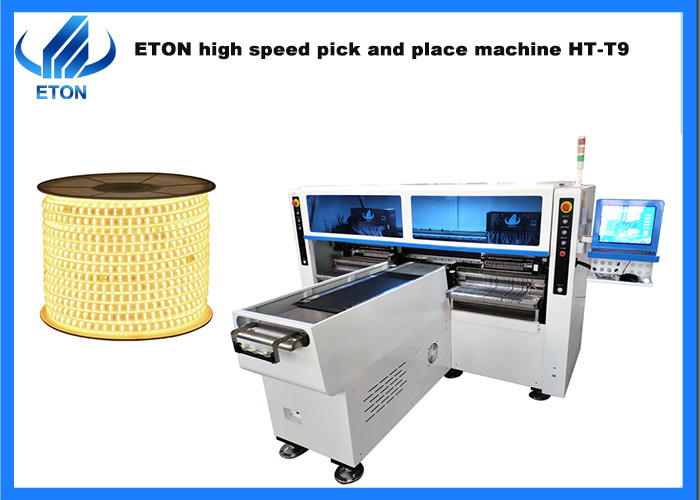

HT-T9 is a high speed pick and place machine, which is apply for flexible light strips of any length

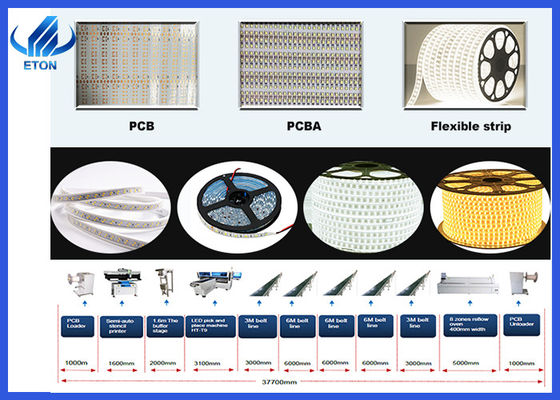

PCB Size:250mm*any length, suitable for 5m, 10m, 50m, 100m or flexible light strips of any length, RGB can be mounted.
Certificates
As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA,etc.
FAQ
Q. Can you accept CIF as the quoted price?
A. We usually accept EXW as the quoted price.
Q.Whether you have professional engineers for installation of the machine in India?
A. Yes, we have professional engineers in India with local office site in Delhi and Dammam to provide considerable service to our clients.
Q. What is your actual speed of your products?
A. For the actual speed of the machine which is constrained by many factors, that related to the number of the components, the time to send PCB board and receive the board, etc. And is decide for the actual products and needs.
Q. How many components can your pick and place machine mount in a PCB board?
A. While this is for our clients needs and the size of the PCB board.
Q. What components is your machine mainly mounted?
A. For the multifunctional pick and place machine that can mount IC, LED chip, resistors, capacitors and shaped components like lens. High speed mounter machine mounting components are LED3014/3020/35285050, resistors, capacitors and rectifiers.
