LED Chips Resistor SMT Mounter 68 Nozzle Pick And Place Machine

LED chips resistor mounting SMT 68 nozzle pick and place machine

Description

Features

• Producing with Producing 4 types materials at the same time with high capacity, available for 5M, 50M or any length of Flexible strip and Roll to roll.
• Dual arm four modul, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
• Calibration automatically, high precision, available for RGB.
• Exclusive patent technology: Group to pick and group to mount.

IPC9850 Capacity: 200000~250000 CPH

Patent number: ZL 2011 2 0237740.9/ ZL 2011 2 0334606.0/ ZL 2012 20178869.1/ ZL 2012 2 0415505.0/ZL 2012 20415044.7/ZL 2012 2 0415356.8/ ZL 2012 2 0415061.0

Technical parameter

Machine application

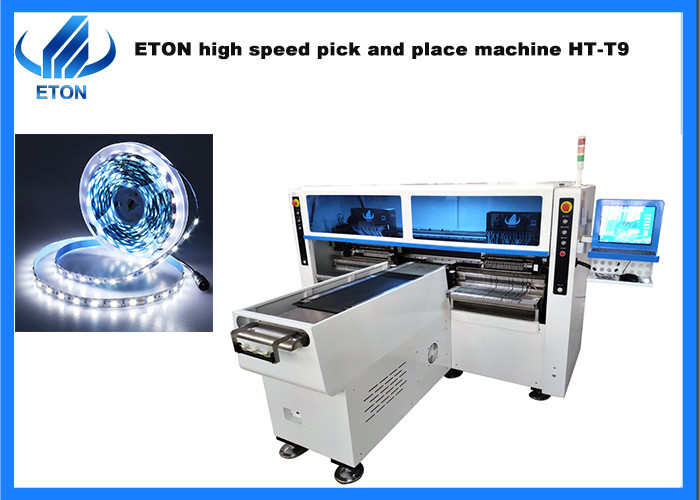

HT-T9 is a high speed pick and place machine, which is apply for flexible light strips of any length

PCB Size:250mm*any length, suitable for 5m, 10m, 50m, 100m or flexible light strips of any length, RGB can be mounted.

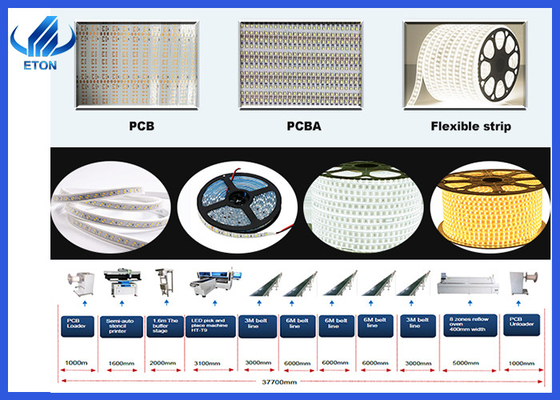

SMT Line solution

The equipment required for the semi-automatic production line includes:

• Semi-automatic printing machine: the solder paste is printed on the PCB pad through the stencil;
• Pick and place machine: mount the led chips or other components on the designated position on the PCB board;
• Reflow oven: melting the solder paste to make it adhere to the mounting components;
• Conveyor: inspect the placement and soldering quality, and also play a role in transferring PCB boards and buffering on the SMT production line

Our advantage

• Focusing on SMT high speed pick and place machine more than 20 years
• The products exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc.
• ETON obtained 9 invention patents, 112 practical patents, 12 software copyrights of intellectual property technologies, to be a leading manufacturer of SMT trade.
