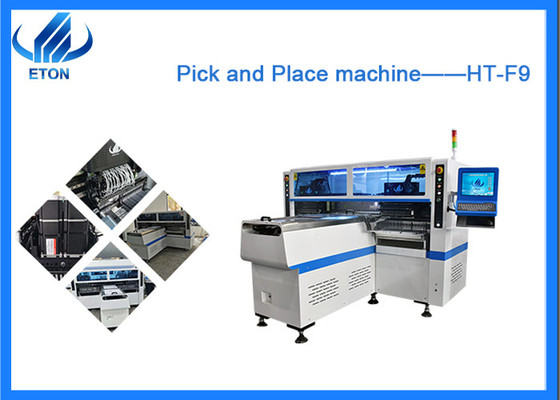

High efficiency Full-automatic 250000 CPH pick and place machine for Led tube/strip /panel lamp
The function of highspeed led mounting machine
The function of led chip mounter machine is mounting the components(led chip/ resistor/ capacitor/ ic/ shaped components etc) on the PCB. The led chip mounter machine is the main equipment in the SMT line, and also it influence whole SMT line capacity.
The features of ETON highspeed led mounting machine
Apply to the 0.6m, 0.9m,1.2m rigid PCB and 0.5m,1mLED flexible strip. Producing with 4 types materials at the same time with high capacity, available for board with any proportion of LED chip and resistor.
Dual arm four module, 17 nozzles for each mounting part, part A/B/C/D can be mounted separately or synchronously.
Calibration automatically, high precision, available for RGB.
Exclusive patent technology:Group to take and group to mount. smt assembly equipment
Machine parameter
| Model |
HT-F9 |
| Dimension(L*W*H) |
2700*2300*1550mm |
| Weight |
1700kg |
| PCB length width |
Max:1200*330mm;Min:100*100mm |
| PCB thickness |
0.5~5mm |
| Mounting precision |
±0.02mm |
| Mounting mode |
Group to take and group to mount |
| Mounting height |
≤5mm |
| Mounting speed |
250000 CPH |
| Power consumption |
6KW |
| No. Of feeders station |
68 PCS |
| No. Of head |
68 PCS |
Company information
ETON: Set up in 2011 and More than 11 years experience. Jiangxi intelligent manufacturing Park was completed in 2020. focusing on R&D, production, sales and service of SMT high-speed pick and place machines and SMT peripheral automation.
INDUSTRIAL PARK
We have our own industrial park,equipped with and advanced processing and manufacturing center,strict quality control,and standardize production,streamline production processes.and there is the fastest machine in the world,the capacity reach 50W CPH.
Shipping and Delivery
- By sea: it’s convenience,cheapness,and strong carrying capacity
- By railway: it’s economical and affordable,with large transportation capacity,which is more suitable for inland countries.
- By air: it’s convenient and fast,which is more suitable for urgent items.
Related machine
We can provide you a whole SMT line solution and equipment, you can look this picture, we have semi-auto/full-automatic stencil printer, glue dispenser(this machine is mainly for making led lens), conveyor, reflow oven, etc.
We can meet your any demands for equipment, and pursue quality higher than price for machine manufacturing
Client factory
We have helped local people set up production lines in more than 20 countries, such as India, Egypt, Turkey and Pakistan, and received good reviews. In addition, 80% of LED factories in China are our customers. We will also help more factories set up production lines, and strive to provide better service.
Service
FAQ
1.Why should you buy from us not from other suppliers?
We are high-tech professional manufacturer of SMT machine with more than 10 years with good quality and reputation. We have rich experience in helping client to start new factory and new line. "Professional, high-effective, cost-saving" are our advantages.
Q2:Is your machine difficult to master?
A:No, it's not difficult at all. Take our previous customers for example. They can learn it in five days at most.
Q3: Why are your products more expensive than others?
A:I am more expensive than others because we use imported brand parts to ensure the quality. I think we should see the longer-term value brought by our products, such as the market occupied by the increase of output.
