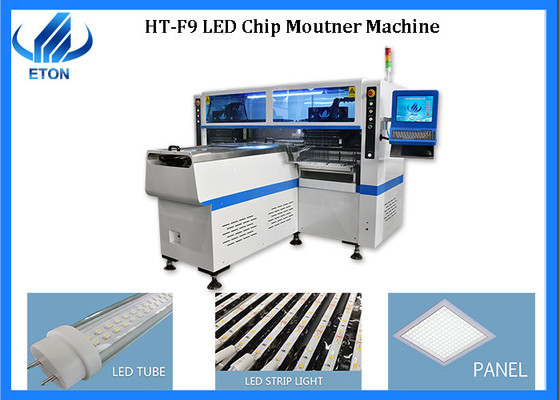

High efficiency Full-automatic 250000 CPH pick and place machine for Led tube/strip /panel lamp
The function of highspeed led mounting machine
The function of led chip mounter machine is mounting the components(led chip/ resistor/ capacitor/ ic/ shaped components etc) on the PCB. The led chip mounter machine is the main equipment in the SMT line, and also it influence whole SMT line capacity.
Machine parameter
| Model |
HT-F9 |
| Dimension(L*W*H) |
2700*2300*1550mm |
| Weight |
1700kg |
| PCB length width |
Max:1200*330mm;Min:100*100mm |
| PCB thickness |
0.5~5mm |
| Mounting precision |
±0.02mm |
| Mounting mode |
Group to take and group to mount |
| Mounting height |
≤5mm |
| Mounting speed |
250000 CPH |
| Power consumption |
6KW |
| No. Of feeders station |
68 PCS |
| No. Of head |
68 PCS |
Company information
ETON: Set up in 2011 and More than 11 years experience. Jiangxi intelligent manufacturing Park was completed in 2020. focusing on R&D, production, sales and service of SMT high-speed pick and place machines and SMT peripheral automation.
INDUSTRIAL PARK
We have our own industrial park,equipped with and advanced processing and manufacturing center,strict quality control,and standardize production,streamline production processes.and there is the fastest machine in the world,the capacity reach 50W CPH.
Shipping and Delivery
Step 1: Wrap with stretch film to prevent the equipment from.
Step 2: Vacuum paper packaging and moisture-proof bag, so that the machine can be kept dry during transportation to prevent moisture.
Step 3: Use straps and triangular wood to fix the machine to prevent damage to the machine during transportation.
Step 4: Each exported machine will be equipped with sturdy export wooden boxes, to ensure that the delivered product is good.
Related machine
We can provide you a whole SMT line solution and equipment, you can look this picture, we have semi-auto/full-automatic stencil printer, glue dispenser(this machine is mainly for making led lens), conveyor, reflow oven, etc.
We can meet your any demands for equipment, and pursue quality higher than price for machine manufacturing
Precautions for reflow soldering
1. In order to ensure personal safety, the operator must take off the label and decorations, the sleeves can not be too loose.
2. Operation should pay attention to high temperature, avoid scald maintenance.
3. Do not set the temperature zone and speed of reflow soldering.
4. Make sure the room is well ventilated and that the chimney leads out of the window.
Service
Free Installation: provide free installation machine to ensure smooth production
Free Warranty:1 year warranty factory service, free replacement of space parts
Free Training: Professional training of operating and maintenance
Free Technical Support: 7*24 technical online support
Free Software Upgrade: Offer free software upgrade whole lifetime
FAQ
Q.What is your merits of the machine to others production?
A. Initially, we have a strong R&D department for studying our productions, and our clients can enjoy free up-grade of the machine to get latest information about technology and equipment, besides, we have a 52000 square meters industrial park to serve the production, assembly, and commissioning of our machines.
Q. How long is the machine maintenance period, whether it is free?
A. The maintenance period of our machine is 1 year and its free for our clients, after the maintenance period we will arrange our engineers to check and test the machine one or two times a year freely.
Q. What is your actual speed of your products?
A. For the actual speed of the machine which is constrained by many factors, that related to the number of the components, the time to send PCB board and receive the board, etc. And is decide for the actual products and needs.
