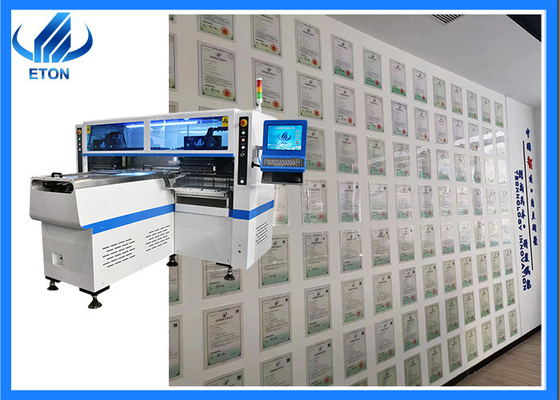

High efficiency Full-automatic 250000 CPH pick and place machine for Led tube/strip /panel lamp
The function of highspeed led mounting machine
The function of led chip mounter machine is mounting the components(led chip/ resistor/ capacitor/ ic/ shaped components etc) on the PCB. The led chip mounter machine is the main equipment in the SMT line, and also it influence whole SMT line capacity.
Machine parameter
| Model |
HT-F9 |
| Dimension(L*W*H) |
2700*2300*1550mm |
| Weight |
1700kg |
| PCB length width |
Max:1200*330mm;Min:100*100mm |
| PCB thickness |
0.5~5mm |
| Mounting precision |
±0.02mm |
| Mounting mode |
Group to take and group to mount |
| Mounting height |
≤5mm |
| Mounting speed |
250000 CPH |
| Power consumption |
6KW |
| No. Of feeders station |
68 PCS |
| No. Of head |
68 PCS |
SMT production line
The whole SMT production line machine mainly include stencil printer, pick and place machine, conveyor and reflow oven.
Stencil printer:Put the solder paste on the PCB board
Conveyor: transmission the PCB board to pick and place machine
Pick and place machine:mounting the components on the PCB board
reflow oven:heating the PCB board
