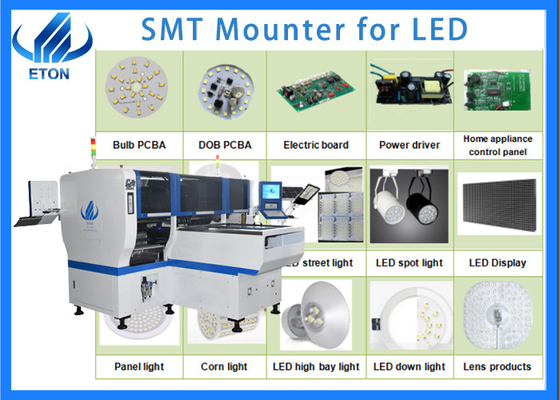

HT-E8D-1200 Dual System Multi-functional Mounter with 90000 CPH Speed and 0402 Min. Size Capacity
Description
- E8D-1200 multi-functional pick and place machine taking the mounting mode of group picking and separately placing, separately picking and separately placing, with 24 PCS of head capacity reaches 90000 CPH.
Dual system, dual module multi-functional mounter to produce two different products at the same time.
- Mounting components:LED chip, capacitors, resistors, lens, IC, shaped components, etc.
- Component: Min. Size 0402, Max. Height 15 mm.
- Application: Power driver, electric board, lens, DOB bulb, linear bulb, household appliance etc.
| Model |
HT-E8D-1200 |
| Dimension |
3150 mm*2250 mm*1650 mm |
| Total weight |
2500 kg |
| PCB length width |
Max:1200*300 mm
Min:100*100 mm
|
| PCB thickness |
0.5-5 mm |
| PCB clamping |
Adjustable pressure pneumatic |
| Mounting mode |
Group picking and separately placing, Separately picking and separately placing |
| Mounting precision |
±0.04 mm |
| Mounting speed |
90000 CPH |
| No. of feeders station |
48 PCS single module |
| No. of head |
24 PCS single module |
Our advantages:
Rich experience in SMT Industry Line. ETON set up more than 10 years, we are leading manufacturer of SMT machine in China.
Our machines are of better quality, more accurate and faster to mount. We also have our own exclusive patented technology such as dual motor electronic Feeder feeding system, flight identification visual alignment, group picking and group placing and so on.
Certificates
As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection.
DOB bulb
The bulb lamp is a new energy-saving lamp which replaces the traditional incandescent bulb.
Core parts
Driving power supply, without this drive, the beads will not light. And if for the quality of a bulb, the most important is the radiator, and drive power and led chips.
Product features
1.Convenience
2.safety: LED as a light source, with professional cooling structure, working temperature is very low (40-60 ° C) , even if the hand will not burn.
3.energy-saving: energy-saving Lamp Power 5W-65W range
4.environmental protection: the use of LED as a light source, led work completely without IR (infrared) and UV (ultraviolet) radiation
5.response time is short:the bubble will not change with the environmental temperature, its normal operating temperature in -35 ° C-80 ° C, so it does not need to consider the general working environment temperature. 5.Long Life: Bulb LED light source life of 50000 hours.
Company information
FAQ
Q: How is the training?
A: After purchasing our machines, you can send your engineers to our factory, or we send our engineers to your factory, and then we will train your personnel to operate these machines. Online training and video tutorials. During the epidemic, if our engineers can't make it through, we also have special one-on-one online training and video tutorials.
Q: What is your actual speed of your products?
A: For the actual speed of the machine which is constrained by many factors,that relatedto the number of the components, the time to send PCB board and receive the board that will have influence on the speed when in production, and is decide for the actual products and needs.
