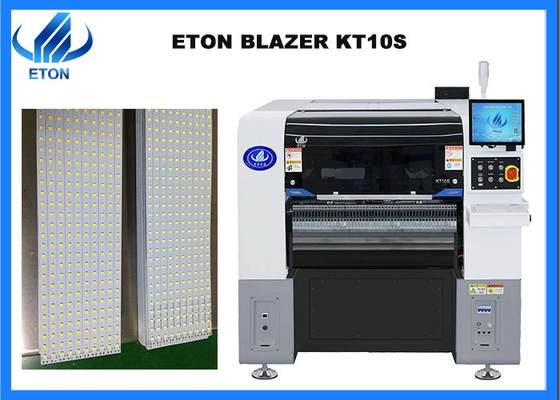

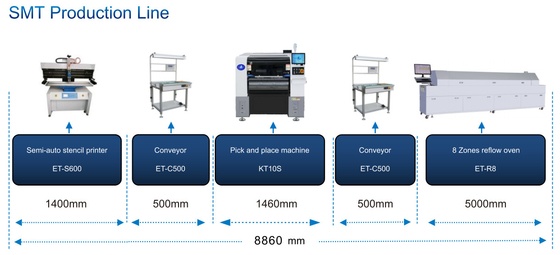

Economic price SMT pick and place machine for LED lighting driver production
Description
Machine main features
- Single module X,Y,Z axis high-end magnetic linear motor, high precision than classic model
- Y axis double drive gantry, higher speed more stability
- The placement head adopt independent vacuum detection, improve the placement performance
- Off-line programming, save time of changeover cycle
- Equipped coordinate import function, more intelligent
Machine main parameter
| Model |
KT10S |
| Dimension |
| Length |
1490mm |
| Width |
2020mm |
| Height |
1650mm |
| Total Weight |
2080kg |
| PCB |
| PCB Length Width |
Max:500*450mm(1200*450 option) Min:50*50mm |
| PCB Thickness |
0.5-5mm |
| PCB Clamping |
Cylinder clamping, track width adjustable |
| Mounting Mode |
Group picking and separate placingseparate picking and separate placing |
| O.S. |
| System |
Windows7 |
| Software |
R&D independently |
| Display |
Touch screen monitor |
| Input Device |
Keyboard, Mouse |
| Vision System |
| No. of Camera |
1 PCS (Head flight vision camera) |
| 1PCS Mark camera |
| Mounting Precision |
CHIP±0.03mm QFP±0.025mm Cpk ≧1.0 (3σ) |
| Mounting Height |
≦16mm |
| Mounting Speed |
48000 CPH(Under best condition) |
| Components |
LED , capacitors, resistors, shaped components, etc. |
| Components Speed |
0.2mm |
| No. of Feeders Station |
52 PCS (104 PCS customize, IC tray/nozzle change option) |
| No. of nozzles |
10 PCS |
| Power |
220AC 50HZ |
| Power Consumption |
1.5kw |
| Operating Environment |
23℃±3℃ |
| Transmission Speed |
＞1000mm/sec |
| Transmission Direction |
Single(left→ right or right→ left) |
| Transmission Mode |
Online drive |
| Position Mode |
Optical |
| Gas consumption |
0.4-0.6mpa (4-6kgf/cm2)600N/min |
| Electrical control |
Independent research and development by ETON |
| Motion control card module 1 set |
Independent research and development by ETON |
| X,Y,Z Axis Drive way |
High-end magnetic linear motor |
| Feeding way |
Intelligent feeder with double motor |
| Production management MES system interface |
Customized |
