Technical Paremeter
| PCB Size |
500*450mm |
| heads |
10PCS |
| Feeder station |
52PCS |
| Components |
0201~15MM packaging material and IC material(Optional fixed camera for 0201~35*35MM), Other component size can be customized |
| X,Y,Z Axis Drive way |
High-end magnetic linear motor |
| Mounting Speed |
48000 CPH(Under best condition) |

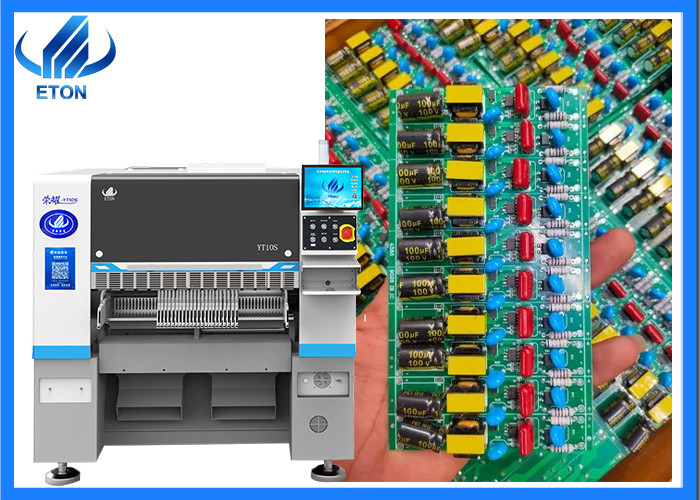

Application
Method of maintaining SMT Mounter electromagnetic valve
1. During manual operation, first confirm the safety.
2.Regularly discharge the condensed water accumulated in the air filter.
3.Reduce the use of electromagnetic valves. Check the operation of electromagnetic valves switch once a month to avoid failure.
4.When disassembling the mounter, please have the necessary equipment to prevent the driven object from falling and unable to operate normally. After this process, please cut off the air source and power supply and pay attention to the residual air pressure.
5.The maintenance process of the mounter shall be carried out in the order of the
operation as far as possible.
Introduction to our company
• Today, ETON Automation has successfully developed LED patch equipment that can quickly improve assembly production efficiency and reduce labor costs, and a complete after-sales service system has won the recognition of the market and the majority of customers, and has stabilized its leading position in the patch industry.
Our Services
Exhibition
ETON committed to creating an international pick and place machine brand. We have participated in many exhibitions every year. Including domestic exhibitions and foreign exhibitions(except the epidemic period).Not only in China, India Delhi, Indian Mumbai, Pakistan Karachi, Turkey Istanbul etc.
Packaging
Step 1: Wrap the machine with film first
Step 2: Pack with foam cotton
Step 3: Vacuum bag packaging and vacuuming
Step 4: The film is then wrapped around and fixed
Step 5: Fix the four feet with foot cups to prevent them from slipping during transportation
Step 6: Start packing in wooden boxes, one machine and one wooden box.
FAQ
Q:How long is the time of delivery?
Generally, the test delivery period is one month.
Q:If my order is very urgent, how long you can proceed?
We have helped many clients with their urgent demand. If your order is urgent, please check with our specialists to see if we can help.
Q:How are the products packed for sea shipment?
Most of the products have their unique packing, Then we put them into a carton. The cartons are sealed with tape.
Q:How can you make sure that the products won't be damaged or wet?
We take multiple measures to protect the products. They are first packing with individual. We put them into a carton and wrapped with plastic film and sealed with tape to keep the cartons in position and protect them from water.
Related SMT machine
We can provide you a whole SMT line solution and equipment, you can look this picture, we have semi-auto/full-automatic stencil printer, glue dispenser(this machine is mainly for making led lens), conveyor, reflow oven, etc.
We can meet your any demands for equipment, and pursue quality higher than price for machine manufacturing.
