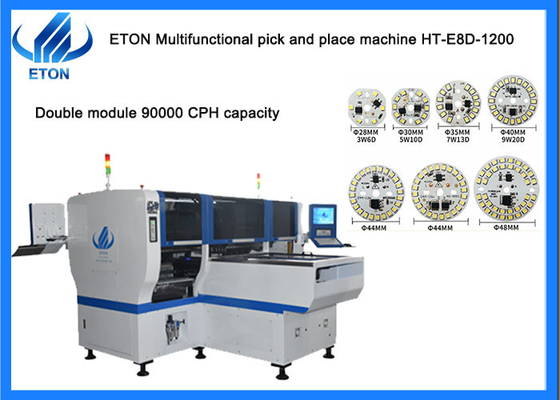

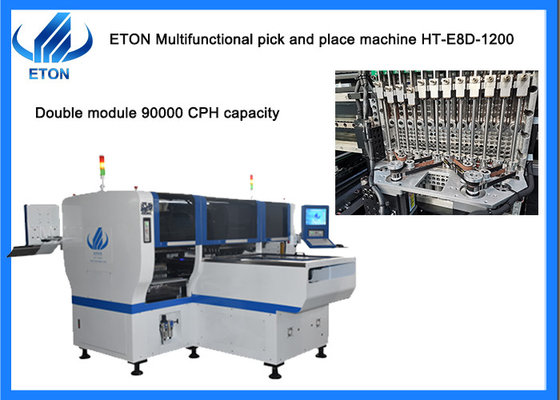

Max 1.2 PCB any LED lighting driver board production SMT machine
Description
Features
- Dual system, dual module multifunctional mounter. To produce two different products at same time.
- Mounting components: LED chips/capacitors/resistors/IC/shaped components/etc.
- Component: Min. size 0402 Max. height 15mm
- Application: Power driver. electric board. lens. linear bulb. DOB, household appliance etc.
Exclusive patented technology
- Electronic feeder feeding system.
- Vision alignment flight identifications, Mark correction.
- Non-stop material re-loading function
- Auto-optimization after coordinates generated, etc.
Technical parameter
| Model |
HT-E8D-1200 |
| Total Weight |
2500kg |
| PCB Length Width |
Max:1200*300mm Min:100*100mm |
| PCB Thickness |
0.5-5mm |
| PCB Clamping |
Adjustable pressure pneumatic |
| Mounting Mode |
Group picking and separate placingseparate picking and separate placing |
| Software |
R&D independently |
| Mounting Speed |
90000 CPH(The optimum speed ) |
| Components |
LED , capacitors, resistors, IC, shaped components, etc. |
| Components Space |
0.2mm |
| No. of Feeders Station |
48 PCS |
| No. of nozzles |
24 PCS |
| Power |
380AC 50HZ |
| Power Consumption |
8 KW |
| Operating Environment |
23℃±3℃ |
| Conveyor transmission |
Max length :1200 mm |
| Transmission Speed |
＞1000mm/sec |
| X,Y,Z Axis Drive way |
High-end magnetic linear motor + Servo motor |
| Feeding way |
Electric feeder with double motor |

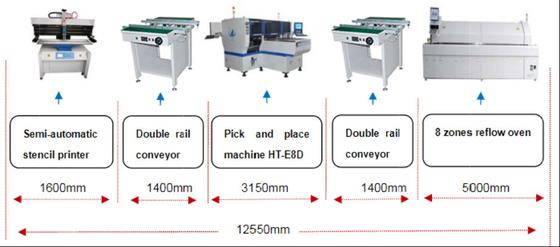

SMT Line solution
The SMT production line has two schemes: semi-automatic and fully automatic line. If you are just starting to do it, I suggest you do a semi-automatic production line, which can effectively save your cost.
Our advantage
ETON is the pioneer of SMT machine field in China which have more than 11 years experiences. And owned CCC, SIRA, CE certificates with 14 invention patents, 135 practical patents, 55 software copyrights of intellectual property technologies.
Market
ETON company which not only provide our high speed SMT machine in Chinese market, but also overseas market to let our customer enjoy one site service, efficient production and low consumption.
Here are some of our big customers:
SURYA, POLYCAB, FIEM, RK, GK, TECHNO LED, CALCOM, ACK , KENDAL, RangDong, UNISTAR, and so on.
FAQ
Q: How is the training?
A: After purchasing our machines, you can send your engineers to our factory, or we send our engineers to your factory, and then we will train your personnel to operate these machines. Online training and video tutorials.
Q: It’s hard to use the machine?
A: Machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company, so we know how to make it more intelligent and operate friendly.
Q: Does your machines have quality certificates?
A: We are high-tech enterprise with CE, SIRA, CCC , ISO awarded as "Well-know brand" and many technology patents, and have rich experience (more than 12 years) in LED light production line program.
Q: why should you buy from us not from other suppliers?
A: We are high-tech professional manufacturer of SMT machine with more than 12 years with good quality and reputation. We have rich experience in helping client to start new factory and new line. "Professional, high-effective, cost-saving" are our advantages.
