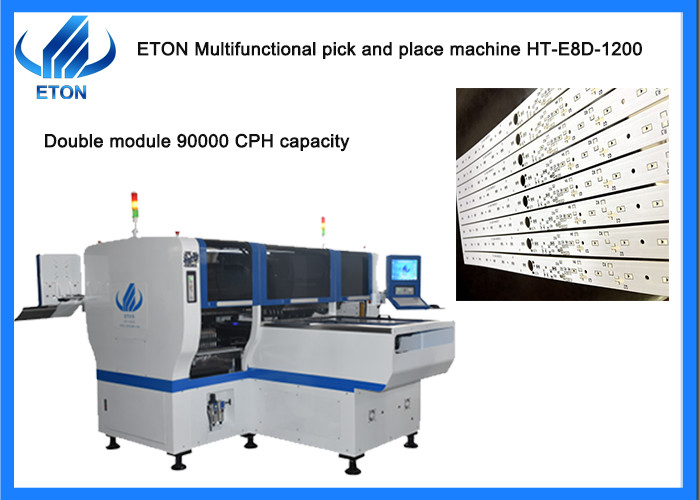

48 feeder station led tube display board SMT middle speed machine
Description
Features
- Dual system, dual module multifunctional mounter. To produce two different products at same time.
- Mounting components: LED chips/capacitors/resistors/IC/shaped components/etc.
- Component: Min. size 0402 Max. height 15mm
- Application: Power driver. electric board. lens. linear bulb. DOB, household appliance etc.

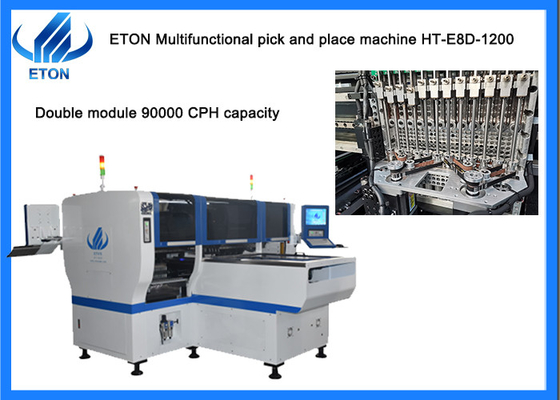

Exclusive patented technology
- Electronic feeder feeding system.
- Vision alignment flight identifications, Mark correction.
- Non-stop material re-loading function
- Auto-optimization after coordinates generated, etc.
Technical parameter
| Model |
HT-E8D-1200 |
| Total Weight |
2500kg |
| PCB Length Width |
Max:1200*300mm Min:100*100mm |
| PCB Thickness |
0.5-5mm |
| PCB Clamping |
Adjustable pressure pneumatic |
| Mounting Mode |
Group picking and separate placingseparate picking and separate placing |
| Software |
R&D independently |
| Mounting Speed |
90000 CPH(The optimum speed ) |
| Components |
LED , capacitors, resistors, IC, shaped components, etc. |
| Components Space |
0.2mm |
| No. of Feeders Station |
48 PCS |
| No. of nozzles |
24 PCS |
| Power |
380AC 50HZ |
| Power Consumption |
8 KW |
| Operating Environment |
23℃±3℃ |
| Conveyor transmission |
Max length :1200 mm |
| Transmission Speed |
＞1000mm/sec |
| X,Y,Z Axis Drive way |
High-end magnetic linear motor + Servo motor |
| Feeding way |
Electric feeder with double motor |
Machine application

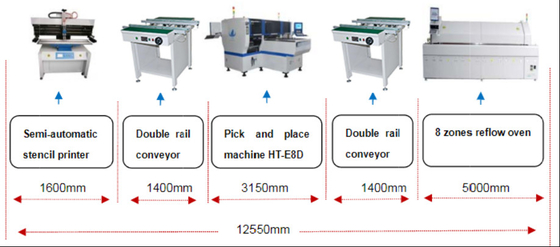

HT- E8D - 1200 Semi - automatic production line is suitable for mounting all kinds of LED lights and circuit boards For example: LED bulb, DOB bulb Panel lamp, Down-light, Lamp tube, Street lamp, Display screen, Circuit board and Other products.
The maximum PCB size of HT-E8D-1200 SMT Line is 1200 * 300mm.
Packages
Step 1: Packing in film package to prevent dust and water to the machine
Step 2: Packing in foam cotton to protect the outside of the machine
Step 3: Packing in vacuum package to keep dry of the machine during transportation
Step 4: Transportation by truck to specified port
Service
Pre-sale service
Provide suitable production plan
Advise on plant electrical equipment and layout
Sale service
Report machine status in time
Follow up and send test machine video
After-sales service
Software lifetime upgrade
24 hours to deal with problems online
Engineers can arrive on site to teach operation and debug the machine
Regular visit (one year warranty period, spare parts repair free; Once or twice a year after warranty)
