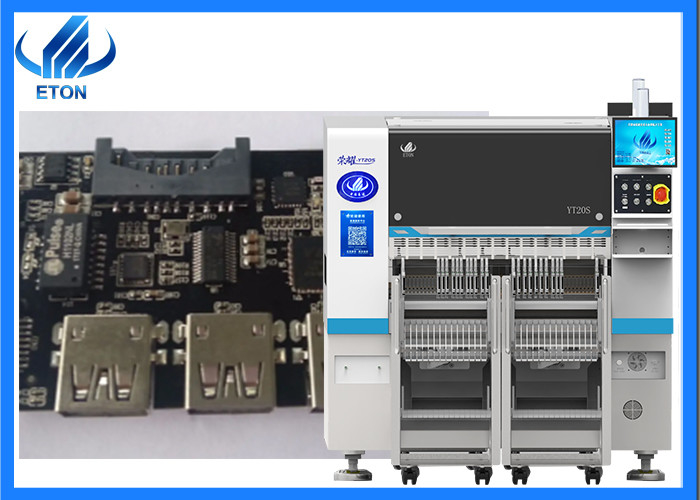

Machine main features
Integrated Placement Head
Lightweight, head is integrally formed, the 10 sets of Z axes are independently controlled by modular magnetic linear motor, which greatly improves the speed, accuracy and stability
Precision Corner System
The modular corner system independently controls the angle of each component to ensure high-precision placement. 10 suction nozzles per head, with a center distance of 16mm.
Vacuum Sensing Device
Each placement head with independent detection function, which improves the stability of the equipment and the reliability of the product.
Ultra-high-speed Capability
Adopting high-end magnetic linear motors and a multi-function Modular head, the placement capability has increased by 25% compared to traditional machines,with an optimum speed reaching 98000CPH
Machine main parameter
| Model |
YT20S |
| Dimension |
| Length |
1480mm |
| Width |
2680mm |
| Height |
1650mm |
| Total Weight |
2380kg |
| PCB |
| PCB Length Width |
Max:500*300mm(1200*450 option) Min:50*50mm |
| PCB Thickness |
0.5-5mm |
| PCB Clamping |
Cylinder clamping, track width adjustable |
| Mounting Mode |
Group picking and separate placingseparate picking and separate placing |
| O.S. |
| System |
Windows7 |
| Software |
R&D independently |
| Display |
LED monitor |
| Input Device |
Keyboard, Mouse |
| Vision System |
| No. of Camera |
1 PCS (Head flight vision camera) |
| 2 PCS Mark camera |
| Mounting Precision |
CHIP±0.03mm QFP±0.025mm Cpk ≧1.0 (3σ) |
| Mounting Height |
≦16mm (Other height can be customized) |
| Mounting Speed |
98000 CPH(Under best condition) |
| Components |
0201~12MM packaging material and IC material(Optional fixed camera for 0201~35*35MM),Other component size can be customized |
| Components Space |
0.2mm |
| No. of Feeders Station |
104 PCS |
| No. of nozzles |
20 PCS |
| Power |
220AC 50HZ |
| Power Consumption |
1.5kw |
| Operating Environment |
23℃±3℃ |
| Transmission Speed |
＞1000mm/sec |
| Transmission Direction |
Single(left→ right or right→ left) |
| Transmission Mode |
Online drive |
| Position Mode |
Optical |
| Gas consumption |
0.4-0.6mpa (4-6kgf/cm2)600N/min |
| Electrical control |
Independent research and development by ETON |
| Motion control card module 1 set |
Independent research and development by ETON |
| X,Y,Z Axis Drive way |
High-end magnetic linear motor |
| Feeding way |
Intelligent feeder with double motor |
| Production management MES system interface |
Customized |

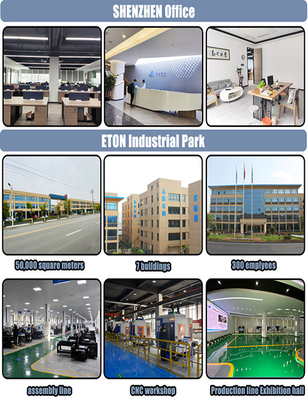

Company Profile
In 2020, ETON Jiangxi Industrial Park was successfully completed, equipped with an advanced processing and manufacturing center, strict quality control, and standardize production, streamline production processes. ETON advanced technology and innovation drives the revolution of market rapidly, and obtains a number of intellectual property technologies, including 9 invention patens, 112 practical patents, 12 software copyrights, moreover, ETON has invented the fastest automatic pick and place machine with speed 170000 CPH, which save much labors and space of production, got large market share in USA, KOREA, INDIA, GERMANY, EGYPT, TURKEY, VIETNAM, TUNISIA, THAILAND more than 30 counties.
Exhibition
Our company participates in many exhibitions at home and abroad every year,
You will see ETON's booth in some well-known large-scale exhibitions in China, including large-scale exhibitions held in Shenzhen, Guangzhou, Chongqing, Shanghai and other places.
Foreign exhibitions include exhibitions in more than 20 countries including Mumbai, Delhi, Egypt, Turkey, and Vietnam.
Shipping and package
Packaging: standard is plastic film wrap the LED SMT machine, then load into one 20" container; Wooden box packing can be customized.
Delivery: 35-40 days after 30% T/T prepayment, buyer should come to inspect when we do test running, after testing, pay the 70% balance before delivery
FAQ
Q:This is the first time I use this kind of machine, is it easy to operate?
A: There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
Q:If machine have any problem after I receive it, how can I do ?
A: Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage
Q: Does your machines have quality certificate?
A: All of the machines have passed CE,SIRA and CCC certificate and have own patent.
Q: What is the payment method?
A: We support T/T payment.
Q: When is the delivery time?
A: Delivery within 30 days after payment.
