600KG SMT printing solder paste on PCB full automatic printer
Machine configuration
● Programmable suspension printing head;
*Two sets of stepping motor drive, the pressure of front and rear scraper can be adjusted separately to ensure the inconsistency of front and rear printing caused by fatigue deformation of scraper material;
*Effectively control the stroke, improve the printing efficiency, and prevent the leakage of solder paste;
● Standard stainless steel scraper, unique design, improve the service life of the blade;
● Downward vision alignment system;
● CNC guide rail adjustment;
● Industrial controlled computer,Windows XP interface operating system;
● Built-in software diagnostic system;
● SMEMA interface.
Technical parameter
| Screen Frames |
Min Size |
850mm |
| Max Size |
550mm |
| Thickness |
25~45mm |
| FPCB Min Size |
50mm |
| FPCB Max Size |
260mm |
| FPCB Thickness |
0.5~5mm |
| FPCB Warpage |
Max. FPCB diagonal 1％ |
| Transport Height |
900±40mm |
| Transport Direction |
Left-Right |
| Transport Speed |
Max 1000mm/S Programmable (Adjustable) |
| Board Location |
Support System |
Platform jacking tension |
| Clamping System |
Edge clamp fixed |
| Print head |
Two independent motorized print heads |
| Squeegee Speed |
6~300mm/sec |
| Squeegee Pressure |
0~10Kg/cm2 |
| Squeegee Angle |
55°(Standard) |
| Squeegee Type |
Stainless steel(Standard), plastic |
| Stencil Separation Speed |
0.1~20mm/sec Programmable |
| Cleaning System |
Manual cleaning |
| Table Adjustment ranges |
X:±5mm;Y:±5mm;θ:±2° |
| Machine |
| Repeat Position Accuracy |
±0.01mm |
| Printing Accuracy |
±0.025mm |
| Cycle Time |
≤9s (Exclude Printing & Cleaning) |
| Air Required |
4.5~6Kg/cm2 |
| Power Input |
AC:220±10%,50/60HZ 1Φ 1.5KW |
| Control Method |
PC Control |
| Machine Dimensions |
1754(L)X1249(W)X1600(H)mm |
| Machine Weight |
Approx:600Kg |
| FPCB transport over plate height |
20mm |
Market
Our products had exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc. And here are some of our big customers:
SURYA, POLYCAB, FIEM, RK, GK, TECHNO LED, CALCOM, ACK , KENDAL, RangDong, UNISTAR, and so on.
Our Exhibitions
Participate in various exhibitions at home and abroad every year (except during the epidemic period)
Domestic exhibitions: Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED Light Exhibition, etc.
Foreign exhibitions: India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, Thailand Exhibition, etc.
Related machine

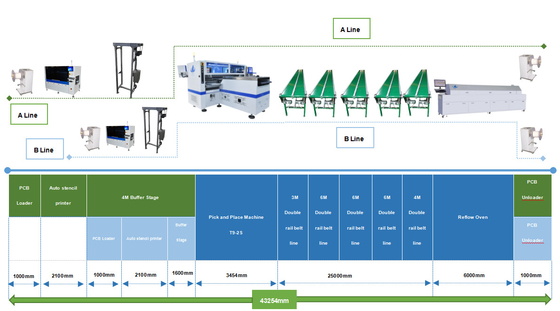

We can provide a whole SMT production line,led light production line:
1.Pick and place machine
2. Loader machine
3. Conveyor machine
4. Stencil printer machine
5. Reflow oven machine
6. Unloader machine
7. Solder paste mixer
8. Roll to roll led strip light assembly machine
FAQ
Q. Does your machines have quality certificates?
A. We are high-tech enterprise with CE, SIRA, CCC , ISO awarded as "Well-know brand" and many technology patents, and have rich experience (more than 11 years) in LED light production line program.
Q. What is your actual speed of your products?
A. For the actual speed of the machine which is constrained by many factors,
that related to the number of the components, the time to send PCB board
and receive the board that will have influence on the speed when in production, and is decide for the actual products and needs.
