Machine main features
Integrated Placement Head
Lightweight, head is integrally formed, the 10 sets of Z axes are independently controlled by modular magnetic linear motor, which greatly improves the speed, accuracy and stability
Precision Corner System
The modular corner system independently controls the angle of each component to ensure high-precision placement. 10 suction nozzles per head, with a center distance of 16mm.
Vacuum Sensing Device
Each placement head with independent detection function, which improves the stability of the equipment and the reliability of the product.
Ultra-high-speed Capability
Adopting high-end magnetic linear motors and a multi-function Modular head, the placement capability has increased by 25% compared to traditional machines,with an optimum speed reaching 98000CPH
Machine main parameter

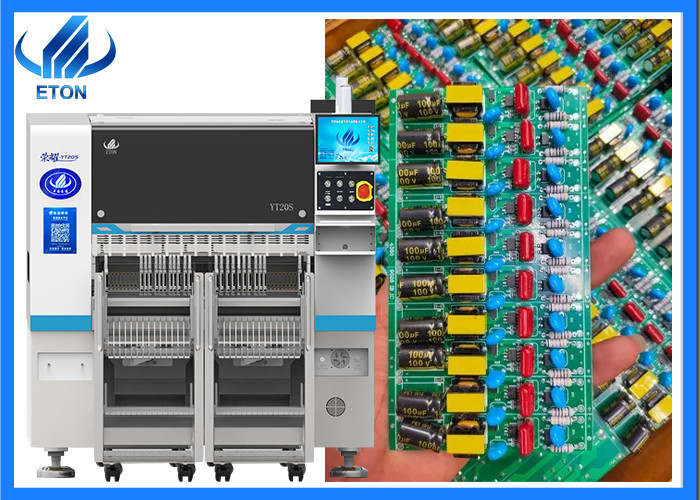

| Model |
YT20S |
| Dimension |
| Length |
1480mm |
| Width |
2680mm |
| Height |
1650mm |
| Total Weight |
2380kg |
| PCB |
| PCB Length Width |
Max:500*300mm(1200*450 option) Min:50*50mm |
| PCB Thickness |
0.5-5mm |
| PCB Clamping |
Cylinder clamping, track width adjustable |
| Mounting Mode |
Group picking and separate placingseparate picking and separate placing |
| O.S. |
| System |
Windows7 |
| Software |
R&D independently |
| Display |
LED monitor |
| Input Device |
Keyboard, Mouse |
| Vision System |
| No. of Camera |
1 PCS (Head flight vision camera) |
| 2 PCS Mark camera |
| Mounting Precision |
CHIP±0.03mm QFP±0.025mm Cpk ≧1.0 (3σ) |
| Mounting Height |
≦16mm (Other height can be customized) |
| Mounting Speed |
98000 CPH(Under best condition) |
| Components |
0201~12MM packaging material and IC material(Optional fixed camera for 0201~35*35MM),Other component size can be customized |
| Components Space |
0.2mm |
| No. of Feeders Station |
104 PCS |
| No. of nozzles |
20 PCS |
| Power |
220AC 50HZ |
| Power Consumption |
1.5kw |
| Operating Environment |
23℃±3℃ |
| Transmission Speed |
＞1000mm/sec |
| Transmission Direction |
Single(left→ right or right→ left) |
| Transmission Mode |
Online drive |
| Position Mode |
Optical |
| Gas consumption |
0.4-0.6mpa (4-6kgf/cm2)600N/min |
| Electrical control |
Independent research and development by ETON |
| Motion control card module 1 set |
Independent research and development by ETON |
| X,Y,Z Axis Drive way |
High-end magnetic linear motor |
| Feeding way |
Intelligent feeder with double motor |
| Production management MES system interface |
Customized |
Company Profile
Shenzhen ETON Automation Equipment Co. LTD. is a leading manufacturer of automatic high-speed pick and place machine focusing on “High efficiency Low consumption” in the world, meanwhile ETON is also the largest high-tech manufacturer in China with strong capability of design, R&D manufacturing, sales and service, and rated as “Shenzhen high-tech enterprise” “China high-tech enterprise” “Shenzhen top brand” “2019 LED Technology innovation Award” “The 4th China LED First Innovation Award” “Industry Special Contribution Award” “Double soft enterprise” etc.
Shenzhen ETON Automation Equipment Co., Ltd. has been committed to the development and manufacture of placement machine equipment, insisting on the concept of "serving customers" and establishing the market trend.
Exhibition
Service
1. Before order:
We will support professional suggestion of SMT line
We will recommend the best module according to the products
We will supply best quotation with factory price
2. After order:
Machine will have good test and aging before shipping
We support machine free installation and training, special time we support online training, and video teaching.
We have Professional after-sales team, could solve problem as soon as possible
Machine warranty is one year, during warranty, any parts need to be repaired and replaced will be free for clients.
Shipping and package
All machines are packed with vacuum and wooden packing
Step1:Film packaging.
Step2:Vacuum packaging.
Step3:Wooden box packaging
You can trust us, because we have professional and standard packaging to protect the machine.
FAQ
1. Is engineer free for machine install ?
A: Yes, we will sent engineer to your factory for machine free install and training once you buy our machine.
2. Is your machine suitable for manufacturing LED Bulb/Panel light/Lens/Display/Flexible strip light/etc?
A: Yes, SMT Machine is widely applied to all kinds of led lighting and electrical board. Suitable for mounting/printing led
chip3014/3528/5050/etc,0402/0603/0805 resistor, capacitor, transformer, bridge, etc
3.Do you have led chip mounter machine?
A: Yes, ETON as the largest manufacturer of SMT Machine in China. We own more than 50000 square meters industry park in Jiangxi city, China. Set office in Shenzhen, Zhongshan, Zhejiang, India, Egypt, etc. We provide fellow machines:
1. High-speed pick and place machine for led lighting
2. Multifunctional pick and place machine for all kinds of lighting and electrical board
3. Automatic Stencil Printer machine
4. Semi-automatic Stencil Printer machine
5. Single conveyor machine
6. Double rail conveyor machine
7. Vibrator plate for lens/transformer/Capacitor/etc
8. 8mm/12mm/16mm/24mm electrical feeder
9. Eight zones reflow oven
10. PCB cleaning machine
11. Solder paste mixer
12. Loader machine
13. Unloader machine
14. Whole SMT Line solution
Etc……
4. How about the operating language ?
Our machine support Chinese/English language.
