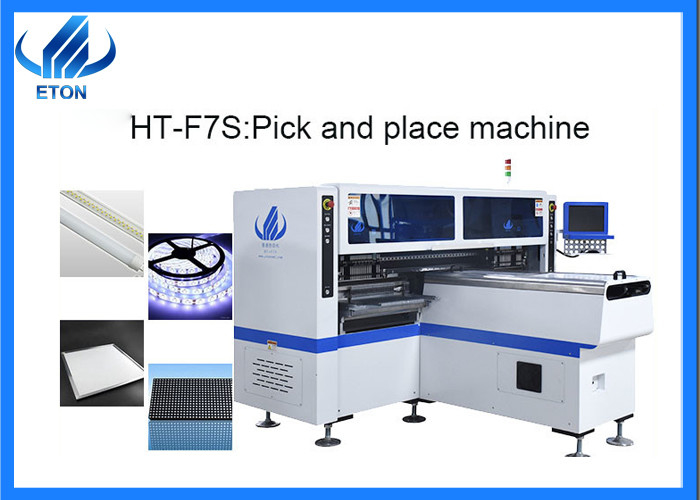

High Speed Chip Shooter LED SMT Machine SMD LED chip mounter
What is Pick and Place Machine?
Automatic Positioning Machine is used to realize high speed, high precision and automatic positioning of components. It is the most important and complex equipment in the whole SMT production. The machine position is really an industrial precision robot. Through the function of absorption-transfer-position-position, without damaging components and printed circuit boards, it realizes fast and accurate mounting of SMC/SMD components to the processes Specify the Pad position on the PCB Board.
l Apply to the 0.6m, 0.9m,1.2m(0~1.2m)LED hard light Board and LED Strip (Rope Light) etc.
l Apply to LED Strip flexible and hard tube board, panel etc.
Technical Parameter
| HT-F7S |
Specifications |
| Length Width Height |
2700*2450*1530mm |
| PCB Length Width |
MAX:1200*330mm
MIN:50*50mm
|
| PCB Thickness |
0.5 ~ 5mm |
| Mount Mode |
Group to have and group to bond |
| Not available. of Camera |
5 sets of imported cameras |
| System Vision |
Vision link, Mark correction |
| Precise Mounting |
± 0.02mm |
| Installation Height |
15±2Mm |
| Mounting Speed |
150000 ~ 170000CPH |
| Element |
LED30140/3528/5050/3030/5630/5730/4014/2835 and resistor etc. |
| Speed Components |
0.2mm |
| Eat Station |
68PCS |
| Not available. of the Nozzles |
34PCS |
| Electrical control |
Independently researched and developed by ETON |
| Modular Motion Control Card 1 Set |
Independently researched and developed by ETON |
| XY Shaft Drive Way |
High-grade magnetic linear motor and servo motor |
| How to eat |
Power feeder with dual motors |
Efficient team: The best suggestions of full SMT lineequipment according to your budget and site.
Competitive price: We are directly manufacture of the ETON pick and place machine, so we can give you the best competitive price with high quality materials.
High quality: We have strictly quality control during allproduction from raw materials to the finished machine.
High efficiency: Allmachines parts are made byourselves, so it" s convenient to control the timeschedule and quality timely.
♦ Certificate Of Honor:
Eton advanced technology and innovation drive the market revolution rapidly, and obtain a number of intellectual property technologies, including 9 invention patents, 112 actual patents, 12 software copyrights.
♦ Our Office and Factory:
We have about 50000 square meters industrial production park and around 300 people in the company. In the market, about 80% of large LED factories are our customers.
FAQ
Q: How can I get to know you better?
A: You can have a specific understanding of our company through our company's official website. After the epidemic, you can come to our company to know offline under safe conditions. Off-line can make you have a deeper impression on our company.
Q: Are you a trade company or a manufacturer?
A:We are an experienced manufacturer of SMT. Our company has been established for ten years, the company has more than 300 employees, the company is a large-scale, is the top domestic enterprises
Q: What’s your operating system?
A: Our operating system is windows 7.
Q: If I have any questions that I don’t understand, can I ask you at any time?
A: Yes. If you have any questions, please don’t hesitate to ask me. We have local engineers and office in India and Egypt, can help u very convenient.
