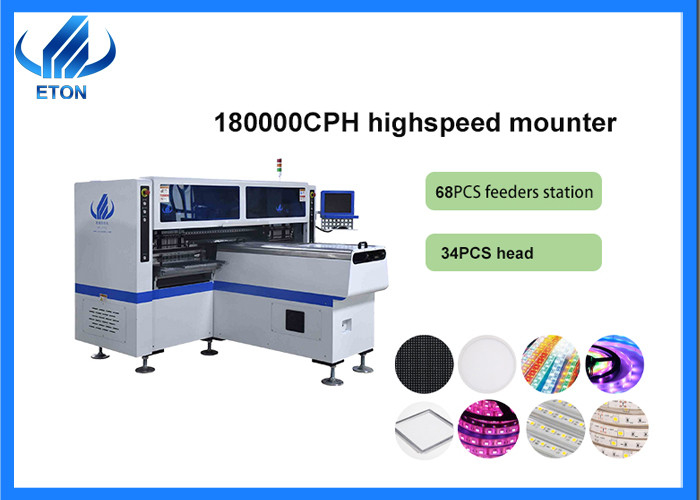

High Speed Chip Shooter LED SMT Machine SMD LED chip mounter
What is Pick and Place Machine?
Automatic Positioning Machine is used to realize high speed, high precision and automatic positioning of components. It is the most important and complex equipment in the whole SMT production. The machine position is really an industrial precision robot. Through the function of absorption-transfer-position-position, without damaging components and printed circuit boards, it realizes fast and accurate mounting of SMC/SMD components to the processes Specify the Pad position on the PCB Board.
l Apply to the 0.6m, 0.9m,1.2m(0~1.2m)LED hard light Board and LED Strip (Rope Light) etc.
l Apply to LED Strip flexible and hard tube board, panel etc.
Technical Parameter
| HT-F7S |
Specifications |
| Length Width Height |
2700*2450*1530mm |
| PCB Length Width |
MAX:1200*330mm
MIN:50*50mm
|
| PCB Thickness |
0.5 ~ 5mm |
| Mount Mode |
Group to have and group to bond |
| Not available. of Camera |
5 sets of imported cameras |
| System Vision |
Vision link, Mark correction |
| Precise Mounting |
± 0.02mm |
| Installation Height |
15±2Mm |
| Mounting Speed |
150000 ~ 170000CPH |
| Element |
LED30140/3528/5050/3030/5630/5730/4014/2835 and resistor etc. |
| Speed Components |
0.2mm |
| Eat Station |
68PCS |
| Not available. of the Nozzles |
34PCS |
| Electrical control |
Independently researched and developed by ETON |
| Modular Motion Control Card 1 Set |
Independently researched and developed by ETON |
| XY Shaft Drive Way |
High-grade magnetic linear motor and servo motor |
| How to eat |
Power feeder with dual motors |
In 2020, ETON Jiangxi Industrial Park was successfully completed, equipped with an advanced processing and manufacturing center, strict quality control, and standardize production, streamline production processes. ETON advanced technology and innovation drives the revolution of market rapidly, and obtains a number of intellectual property technologies, including 9 invention patens, 112 practical patents, 12 software copyrights, moreover, ETON has invented the fastest automatic pick and place machine with speed 170000 CPH, which save much labors and space of production, got large market share in USA, KOREA, INDIA, GERMANY, EGYPT, TURKEY, VIETNAM, TUNISIA, THAILAND more than 30 counties.
♦ Certificate Of Honor:
Eton advanced technology and innovation drive the market revolution rapidly, and obtain a number of intellectual property technologies, including 9 invention patents, 112 actual patents, 12 software copyrights.

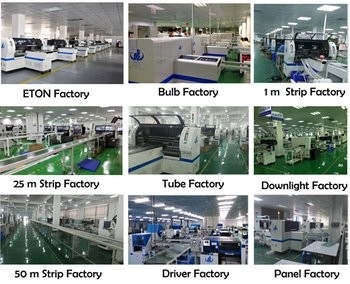

♦ Our Office and Factory:
We have about 50000 square meters industrial production park and around 300 people in the company. In the market, about 80% of large LED factories are our customers.
FAQ
Q: What is the payment method?
A: We support T/T payment.
Q: When is the delivery time?
A: Delivery within 30 days after payment.
Q: What is the shelf life?
A: 1 year warranty.
Q: What are the main LED products our machines for?
A: There are different machines in our company and different machines apply to different LED lights. The main products we can apply:bulb tube strip lamp panel. Down light,streetlight,ceiling light.wall washer light and so on.
