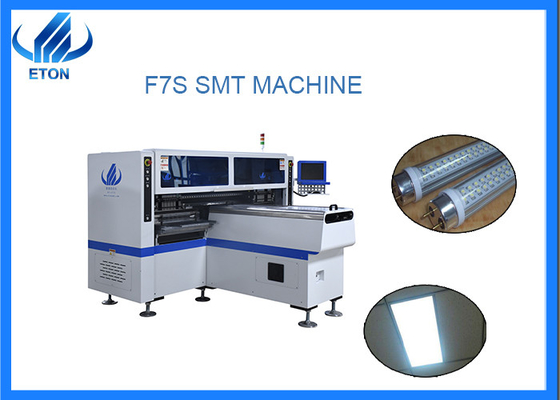

High Speed Chip Shooter LED SMT Machine SMD LED chip mounter
What is Pick and Place Machine?
Automatic Positioning Machine is used to realize high speed, high precision and automatic positioning of components. It is the most important and complex equipment in the whole SMT production. The machine position is really an industrial precision robot. Through the function of absorption-transfer-position-position, without damaging components and printed circuit boards, it realizes fast and accurate mounting of SMC/SMD components to the processes Specify the Pad position on the PCB Board.
l Apply to the 0.6m, 0.9m,1.2m(0~1.2m)LED hard light Board and LED Strip (Rope Light) etc.
l Apply to LED Strip flexible and hard tube board, panel etc.
Technical Parameter
| HT-F7S |
Specifications |
| Length Width Height |
2700*2450*1530mm |
| PCB Length Width |
MAX:1200*330mm
MIN:50*50mm
|
| PCB Thickness |
0.5 ~ 5mm |
| Mount Mode |
Group to have and group to bond |
| Not available. of Camera |
5 sets of imported cameras |
| System Vision |
Vision link, Mark correction |
| Precise Mounting |
± 0.02mm |
| Installation Height |
15±2Mm |
| Mounting Speed |
150000 ~ 170000CPH |
| Element |
LED30140/3528/5050/3030/5630/5730/4014/2835 and resistor etc. |
| Speed Components |
0.2mm |
| Eat Station |
68PCS |
| Not available. of the Nozzles |
34PCS |
| Electrical control |
Independently researched and developed by ETON |
| Modular Motion Control Card 1 Set |
Independently researched and developed by ETON |
| XY Shaft Drive Way |
High-grade magnetic linear motor and servo motor |
| How to eat |
Power feeder with dual motors |
ETON Automation Equipment Co., Ltd.is a professional manufacturer focusing in pick and place machine. Right now, we have integrated R&D, production and sales together.
With good quality, competitive price, easy operation and energy saving, our products are very popular in domestic and oversea market. And all of our machines are wildly used in electronic circuit, photovoltaic, LED industry, instruments and apparatuses.
Up to now, our products are already sold in many countries such as USA , KOREA , INDIA , GERMANY , EGYPT , TURKEY , VIETNAM , TUNISIA , THAILAND more than 30 countries.We will continue to make great efforts to satisfy the customers' requirement.
♦ Certificate Of Honor:
ETON obtains a number of intellectual property technologies, including 9 invention patents, 112 Practical patents, 12 software copyrights.ETON is rated as"Shenzhen high-tech enterprise" "Guangdong high-tech enterprise" "China high- tech enterprise""Shenzhen TOP Brand" "2015 LED Technology Innovation Award" "The 4th China LED First Innovation Award" "Industry Special Contribution Award" etc.
♦ Our Office and Factory:
We have about 50000 square meters industrial production park and around 300 people in the company. In the market, about 80% of large LED factories are our customers.
1. Before order:
We will support professional suggestion of SMT line
We will recommend the best module according to the products
We will supply best quotation with factory price
2. After order:
Machine will have good test and aging before shipping
We support machine free installation and training, special time we support online training, and video teaching.
We have Professional after-sales team, could solve problem as soon as possible
Machine warranty is one year, during warranty, any parts need to be repaired and replaced will be free for clients.
FAQ
Q1: What is your machine actual speed?
A1: The actual speed is influenced by many factors, such as the number of the components, the kind of products, the time of send board, etc. So we can’t give you the accurate actual production capacity. Such as for RT-1, the speed of led chip mainly around 23000-25000CPH. But for driver will be different.
Q2: Does the price include spare parts(nozzle and feeder)?
A2: Different client has different requirements on spare parts, it is not fair to clients to add in equivalent price for spare parts, so we don’t add the spare parts on price. And price is only for machine.
Q3: Can you support whole SMT line?
A3: Yes, we can provide whole line solution if you want. We are very professional on SMT field.
