High practicability LED soft strip light SMT production machine
Product Brief:

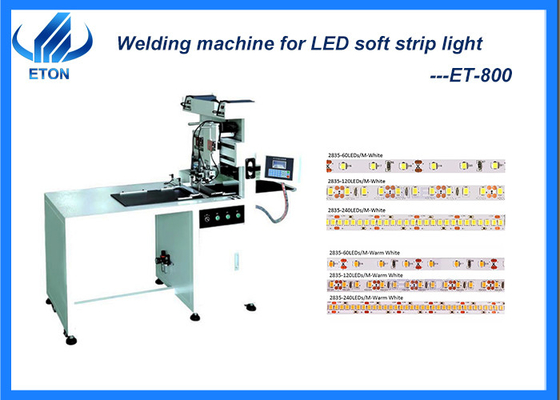

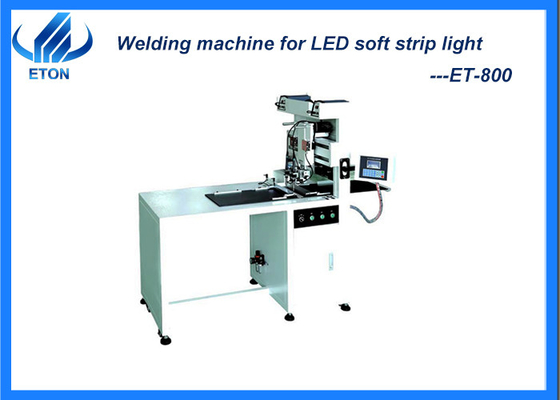

ET-800 LED Soft light strip plate Welding machine is a dedicated automatic welding equipment for 5 meter LED strip welding, according to the characteristics of LED equipment 5 meters depth of humanization design, engaged in a variety of different solder joints instead of manual soldering work, solve the manual welding of weld solder joint is not uniform, and other phenomena, and compatible with a variety of types of LED soft strip size of welding, simple operation and high practicability, quality stability, greatly enhance the efficiency.
Product advantages:
Simple programming, operation control box mobile head position.
Welding speed, high efficiency, a solder machine can save 5-6 people
Save tin wire, good consistency of solder joint
High power heating controller ensures the stability of continuous welding
The utility model relates to a double head fine tuning welding gun structure, which is convenient for regulating the welding torch spacing and synchronous operation
Multi axis manipulator, advanced motion control algorithm, to improve the kinematic positioning accuracy and repeatability accuracy
According to the professional design of the lamp batten, it is convenient for manual feeding and feeding
Production efficiency: 1800-2000 meters /H.
It can replace the manual process and optimize the quality control.
Improve efficiency, save manpower, simple operation, new staff can achieve the welding effect of skilled workers
|
Item
|
parameter
|
|
Device name
|
LED welding machine for soft light strip plate
|
|
Model
|
ET-800
|
|
control mode
|
32 position DSP
|
|
Welding head
|
2 iron heads work at the same time
|
|
Working stroke
|
X axis 350MM,Z axis 150MM,platform 1000MM
|
|
Repeatability accuracy
|
±0.05mm
|
|
Equipment power
|
600w
|
|
Power Supply
|
220V,50-60HZ
|
|
weight
|
100KG
|
|
Size
|
1600*1200*1400(Length*Width*Height)
|
Scope of application:
LED soft light plate soldering machine application range: suitable for LED monochromatic light, 5050 RGB lamp string, lamp belt, lamp strip and other products
Technical parameters:
