FPCB welding machine high efficient during SMT production line
Description
Product Brief:

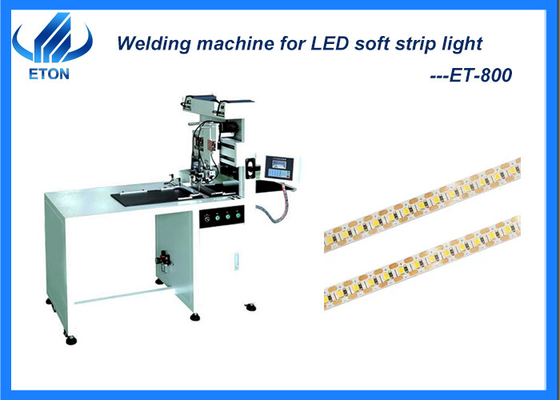

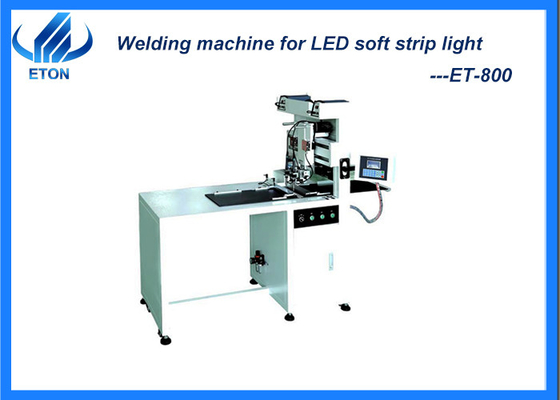

ET-800 LED Soft light strip plate Welding machine is a dedicated automatic welding equipment for 5 meter LED strip welding, according to the characteristics of LED equipment 5 meters depth of humanization design, engaged in a variety of different solder joints instead of manual soldering work, solve the manual welding of weld solder joint is not uniform, and other phenomena, and compatible with a variety of types of LED soft strip size of welding, simple operation and high practicability, quality stability, greatly enhance the efficiency.
Product advantages:
- Simple programming, operation control box mobile head position.
- Welding speed, high efficiency, a solder machine can save 5-6 people
- Save tin wire, good consistency of solder joint
- High power heating controller ensures the stability of continuous welding
- The utility model relates to a double head fine tuning welding gun structure, which is convenient for regulating the welding torch spacing and synchronous operation
- Multi axis manipulator, advanced motion control algorithm, to improve the kinematic positioning accuracy and repeatability accuracy
- According to the professional design of the lamp batten, it is convenient for manual feeding and feeding
- Production efficiency: 1800-2000 meters /H.
- It can replace the manual process and optimize the quality control.
- Improve efficiency, save manpower, simple operation, new staff can achieve the welding effect of skilled workers
Scope of application:
LED soft light plate soldering machine application range: suitable for LED monochromatic light, 5050 RGB lamp string, lamp belt, lamp strip and other products
Technical parameters:
| Item |
parameter |
| Device name |
LED welding machine for soft light strip plate |
| Model |
ET-800 |
| control mode |
32 position DSP |
| Welding head |
2 iron heads work at the same time |
| Working stroke |
X axis 350MM,Z axis 150MM,platform 1000MM |
| Repeatability accuracy |
±0.05mm |
| Equipment power |
600w |
| Power Supply |
220V,50-60HZ |
| weight |
100KG |
| Size |
1600*1200*1400(Length*Width*Height) |
Our advantage
Shenzhen ETON Automation Equipment Co., Ltd. was established in 2011, headquartered in Shenzhen, with its main production base located in Ruichang City, Jiujiang City, Jiangxi Province. It covers an area of 52,000 square meters and employs over 300 staff.
As a technology-driven enterprise, ETON specializes in SMT (Surface Mount Technology), new energy FPC (Flexible Printed Circuit), semiconductor IGBT, as well as aerospace and military industries. Committed to technological innovation and product development in the field of pick-and-place machines, the company adheres to the core philosophy of promoting the nation through hard work. It continuously enhances the technological content and competitiveness of its products, establishing a comprehensive system for technological innovation. ETON has been granted over 200 patents, including over 20 invention patents, more than 40 software copyrights, and several patents for international pioneering technologies
Packages
Step 1: Wrap with stretch film to prevent the equipment from.
Step 2: Vacuum paper packaging and moisture-proof bag, so that the machine can be kept dry during transportation to prevent moisture.
Step 3: Use straps and triangular wood to fix the machine to prevent damage to the machine during transportation.
Step 4: Each exported machine will be equipped with sturdy export wooden boxes, to ensure that the delivered product is good.
Certificates
As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 14 invention patents, 135 practical patents, 55software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA,
etc.
