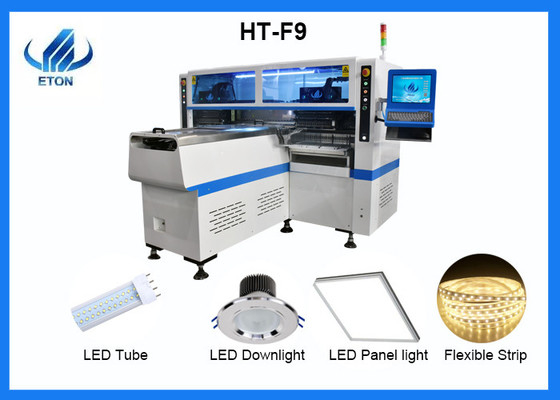

High efficiency Full-automatic 250000 CPH pick and place machine for Led tube/strip /panel lamp
The features of ETON highspeed led mounting machine
Apply to the 0.6m, 0.9m,1.2m rigid PCB and 0.5m,1mLED flexible strip. Producing with 4 types materials at the same time with high capacity, available for board with any proportion of LED chip and resistor.
Dual arm four module, 17 nozzles for each mounting part, part A/B/C/D can be mounted separately or synchronously.
Calibration automatically, high precision, available for RGB.
Exclusive patent technology:Group to take and group to mount. smt assembly equipment
Machine parameter
| Model |
HT-F9 |
| Dimension(L*W*H) |
2700*2300*1550mm |
| Weight |
1700kg |
| PCB length width |
Max:1200*330mm;Min:100*100mm |
| PCB thickness |
0.5~5mm |
| Mounting precision |
±0.02mm |
| Mounting mode |
Group to take and group to mount |
| Mounting height |
≤5mm |
| Mounting speed |
250000 CPH |
| Power consumption |
6KW |
| No. Of feeders station |
68 PCS |
| No. Of head |
68 PCS |

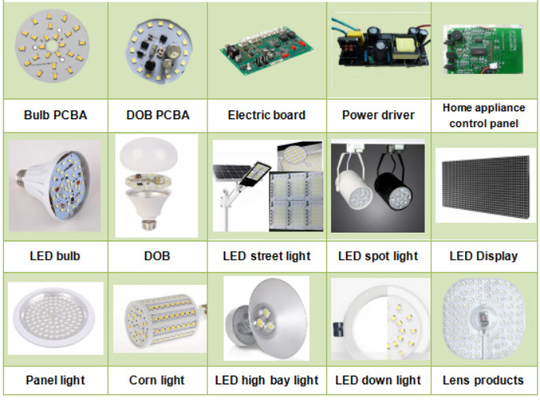

Application
Apply to the 0.6m,0.9m,1.2m rigid PCB and 0.5m,1m Led flexible strip.
F9 as the high speed mounter machine , widely apply to many kind of led linear module, such as the strip light, panel light, tube light, etc.
ETON Advantages
Our company was established in 2009, which is a high-tech enterprise specialized in R&D, production, sales of SMT production equipment.
With the trends of global green, energy-saving and the rapid development of LED industry and requirements of production process, our company independent research and develop, design, manufacture a set of the world's fastest, most stable, most complete high-speed LED automatic energy mounter, while also solve the offset, cast material problems of the production of 1.2m, 1.5m light panels and the headlights pearl and we received a number of patents issued by the state certificate and support.
Exhibition
Certification
Packaging
Service
After-sale
1)On-site Free installation.
2)One-year Warranty factory service.
3)Two regular visits customer one year.
4)Free technical training
Technical support
1)Free technical training of operating and maintenance.
2)7*24 hours technical online support.
3)Local engineer in India(Delhi, Mumbai and Daman), Turkey, Egypt.
Clients
ETON as the leading manufacturer of global photo electronic high speed pick and place machine, the products are exported more than 20 countries and regions, including India, Vietnam, Tunisia, Egypt, Turkey, Russia, Thailand, etc.Take India as an example,We have many big clients in India, Such as RK,SURYA,Fiem,Calcom,POLYCRB, etc. We have sold over a hundred machines to India.
FAQ
1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2.what can you buy from us?
Multi-functional pick and place machine,High-speed pick and place machine,Glue dispenser machine,Multifunctional Pick And Place Machine,High Speed Pick And Place Machine
3. why should you buy from us not from other suppliers?
We are high-tech professional manufacturer of smt machine with more than 10 years with good quality and reputation.We have rich experience in helping client to start new factory and new line."Professional,high-effective,cost-saving" are our advantages.
4. what services can we provide?
Accepted Delivery Terms:EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese,Japanese
