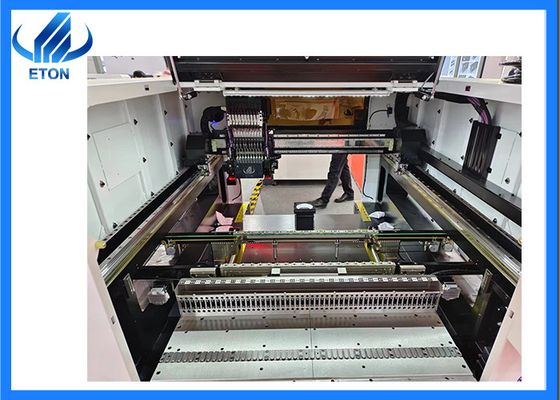

1.5w power LED electrical board 10 nozzle pick and place machine
Machine main features
1.X,Y,and Z axis all adopt self-developed high-end magnetic linear motor
2.Flexible PCB handling capabilities, multi-station,multi-material mounting
3.Y axis adopts double drive gantry structure
4.Support automatic replacement nozzle function(option)
5.Apply to 0201~35*35mm tape reel package and IC tray feeder
● Brand new self-developed high-precision placement head.
● Combining high-accuracy mark recognition camera with a fixed-flight vision camera to ensure placement accuracy.
● The placement head adopt independent vacuum detection,improve placement performance.
● Off-line programming,saves time during changeover cycles.
● The software includes Al Deep Learning and Automatic Optimization functions.
● Supports providing an MES system interface.
● Equipped with coordinate import function.
| Model |
YT10S |
| Dimension |
| Length |
1480mm |
| Width |
2020mm |
| Height |
1650mm |
| Total Weight |
2380kg |
| PCB |
| PCB Length Width |
Max:500*450mm(1200*450 option) Min:50*50mm |
| PCB Thickness |
0.5-5mm |
| PCB Clamping |
Cylinder clamping, track width adjustable |
| Mounting Mode |
Group picking and separate placingseparate picking and separate placing |
| O.S. |
| System |
Windows7 |
| Software |
R&D independently |
| Display |
LED monitor |
| Input Device |
Keyboard, Mouse |
| Vision System |
| No. of Camera |
1 PCS (Head flight vision camera) |
| 2 PCS Mark camera |
| Mounting Precision |
CHIP±0.03mm QFP±0.025mm Cpk ≧1.0 (3σ) |
| Mounting Height |
≦16mm(Other height can be customized) |
| Mounting Speed |
48000 CPH(Under best condition) |
| Components |
0201~15MM packaging material and IC material(Optional fixed camera for 0201~35*35MM), Other component size can be customized |
| Components Space |
0.2mm |
| No. of Feeders Station |
52 PCS (104 PCS option) |
| No. of nozzles |
10 PCS |
| Power |
220AC 50HZ |
| Power Consumption |
1.5kw |
| Operating Environment |
23℃±3℃ |
| Transmission Speed |
＞1000mm/sec |
| Transmission Direction |
Single(left→ right or right→ left) |
| Transmission Mode |
Online drive |
| Position Mode |
Optical |
| Gas consumption |
0.4-0.6mpa (4-6kgf/cm2)600N/min |
| Electrical control |
Independent research and development by ETON |
| Motion control card module 1 set |
Independent research and development by ETON |
| X,Y,Z Axis Drive way |
High-end magnetic linear motor |
| Feeding way |
Intelligent feeder with double motor |
| Production management MES system interface |
Customized |

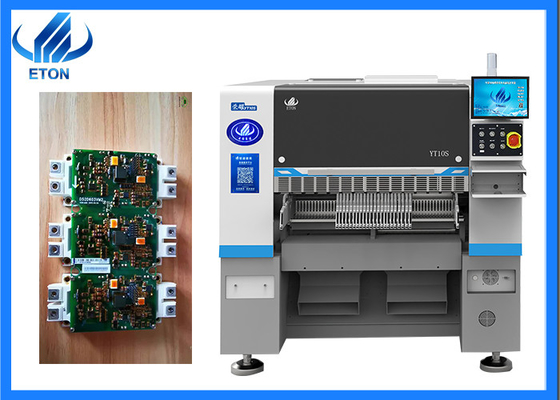

Machine application

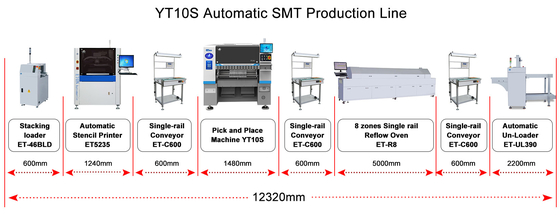

SMT Line solution
The SMT production line has two schemes: semi-automatic and fully automatic line. If you are just starting to do it, I suggest you do a semi-automatic production line, which can effectively save your cost.
The equipment required for the semi-automatic production line includes:
- Semi-automatic printing machine: the solder paste is printed on the PCB pad through the stencil;
- Pick and place machine: mount the led chips or other components on the designated position on the PCB board;
- Reflow oven: melting the solder paste to make it adhere to the mounting components;
- Conveyor: inspect the placement and soldering quality, and also play a role in transferring PCB boards and buffering on the SMT production line
Our Exhibitions
Participate in various exhibitions at home and abroad every year (except during the epidemic period)
Domestic exhibitions: Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED Light Exhibition, etc.
Foreign exhibitions: India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, Thailand Exhibition, etc.
Shipping and Delivery
Shipping Way:
※ By air, for sample and small package
※ By sea, for large package and quantity;
※ Other ways as customer requested.
Delivery Time:
※ Within 30 Days.
FAQ
Q. Can you accept CIF as the quoted price?
A. We only accept EXW as the quoted price for it is convenient and lower cost for both sides.
Q.Can I pay by L/C.
A.The procedure of L/C payment is complicated, which will waste a lot of time on payment. For more, you need to wait longer to get the machine, which will delay your production plan and delay the opportunity.
Q. How many products can your machine make per day?
A. The capacity of our machine is according to the real products, and the number of components on your PCB board that is important factor to figure out the actual speed of our machine with your products.
