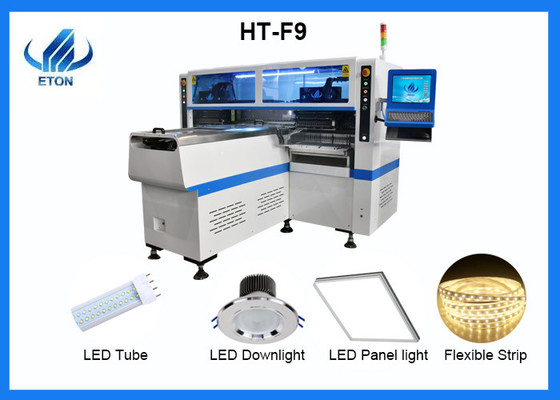

High efficiency Full-automatic 250000 CPH pick and place machine for Led tube/strip /panel lamp
The function of highspeed led mounting machine
The function of led chip mounter machine is mounting the components(led chip/ resistor/ capacitor/ ic/ shaped components etc) on the PCB. The led chip mounter machine is the main equipment in the SMT line, and also it influence whole SMT line capacity.
Machine parameter
| Model |
HT-F9 |
| Dimension(L*W*H) |
2700*2300*1550mm |
| Weight |
1700kg |
| PCB length width |
Max:1200*330mm;Min:100*100mm |
| PCB thickness |
0.5~5mm |
| Mounting precision |
±0.02mm |
| Mounting mode |
Group to take and group to mount |
| Mounting height |
≤5mm |
| Mounting speed |
250000 CPH |
| Power consumption |
6KW |
| No. Of feeders station |
68 PCS |
| No. Of head |
68 PCS |
SMT production line
ETON over 10 years experience in SMT machines, so we are very professional to provide whole line solution.
Automatic stencil printer machine with pick and place machine, loader, conveyor, unloader, reflow oven to be one automatic line.
Automatic line save much labor cost compared with the semiautomatic line, also with higher printing precision could produce high quality electrical products. Here are the automatic SMT line solution layout:
Company information
1.Our company has more than 15 years development history.
2.Independent R&D Exclusive Patented technology.
3.85% large and listed LED factory are our client.
4. Top 1 in highspeed pick and place machine in China.
INDUSTRIAL PARK
We have our own industrial park,equipped with and advanced processing and manufacturing center,strict quality control,and standardize production,streamline production processes.and there is the fastest machine in the world,the capacity reach 50W CPH.
Shipping and Delivery
All machines are packed with vacuum and wooden packing
Step1:Film packaging.
Step2:Vacuum packaging.
Step3:Wooden box packaging
You can trust us, because we have professional and standard packaging to protect the machine.
Related machine
We can provide you a whole SMT line solution and equipment, you can look this picture, we have semi-auto/full-automatic stencil printer, glue dispenser(this machine is mainly for making led lens), conveyor, reflow oven, etc.
We can meet your any demands for equipment, and pursue quality higher than price for machine manufacturing
Certificates
Patent number: ZL 2011 2 0237740.9 ZL 20 11 2 0334606.0
ZL 2012 2 0178869.1 ZL 2012 2 0415505.0
ZL 2012 2 0415044.7 ZL 2012 2 0415356.8
ZL 2012 2 0415061.0
ETON has obtained a number of intellectual property technologies,total 133 patents, including 9 invention patents, 112 practical patents, 12 software copyrights, also earned the oversea certificates as CE, CCC, SIRA,etc.
Service
Maintenance period 1 year
One year warranty. during warranty. any parts that need to be repaired and replaced will be free.
Software and hardware lifetime maintenance
Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates.
On-site service
We have some official site in India as Mumbai and New Delhi, also have site in Egypt, Turkey that can provide service timely with our engineers.
According to your needs, dedicated senior engineer will come to your factory for free install and training you how to operate the machine.
