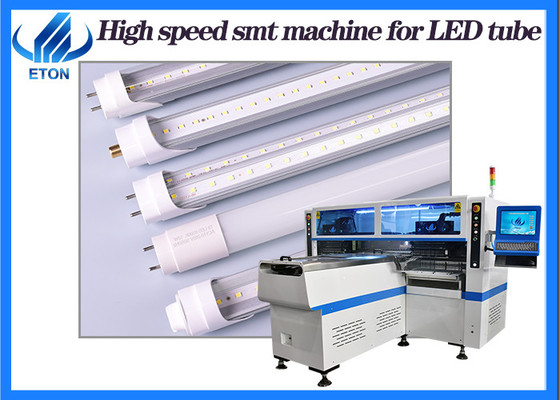

High efficiency Full-automatic 250000 CPH pick and place machine for Led tube/strip /panel lamp
The advantages of HT-F9 led tube light making machine
1. HT-F9, which has 68 heads, two mounting module, each mounting module has 34 heads;
2. HT-F9, which has 68 PCS of feeder station, adopt electric feeder with double motor feeding way
3. HT-F9, which Adopts group picking and group placing mounting mode, achieve high mounting speed;
4. HT-F9, which has uesd the high-end magnetic linear motor and servo motor, stepper motor to ensure the mounting speed and mounting precision
5. HT-F9, which has produced 4 types materials at the same time, for the Optimum mounting speed, it can reach 250000 CPH.
Machine parameter
| Model |
HT-F9 |
| Dimension(L*W*H) |
2700*2300*1550mm |
| Weight |
1700kg |
| PCB length width |
Max:1200*330mm;Min:100*100mm |
| PCB thickness |
0.5~5mm |
| Mounting precision |
±0.02mm |
| Mounting mode |
Group to take and group to mount |
| Mounting height |
≤5mm |
| Mounting speed |
250000 CPH |
| Power consumption |
6KW |
| No. Of feeders station |
68 PCS |
| No. Of head |
68 PCS |
SMT production line
For production line:including semi-automatic stencil printer, pick and place machine, conveyor and reflow oven.
the total length of HT-F9 pick and place machine is about 12.1 meter.
Company information
1.Our company has more than 15 years development history.
2.Independent R&D Exclusive Patented technology.
3.85% large and listed LED factory are our client.
4. Top 1 in highspeed pick and place machine in China.
INDUSTRIAL PARK
We have our own industrial park,equipped with and advanced processing and manufacturing center,strict quality control,and standardize production,streamline production processes.and there is the fastest machine in the world,the capacity reach 50W CPH.
Shipping and Delivery
All machines are packed with vacuum and wooden packing
Step1:Film packaging.
Step2:Vacuum packaging.
Step3:Wooden box packaging
You can trust us, because we have professional and standard packaging to protect the machine.
Related machine
We can provide you a whole SMT line solution and equipment, you can look this picture, we have semi-auto/full-automatic stencil printer, glue dispenser(this machine is mainly for making led lens), conveyor, reflow oven, etc.
We can meet your any demands for equipment, and pursue quality higher than price for machine manufacturing
Certificates
As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA, etc.
Service
Maintenance period 1 year
One year warranty. during warranty. any parts that need to be repaired and replaced will be free.
Software and hardware lifetime maintenance
Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates.
On-site service
We have some official site in India as Mumbai and New Delhi, also have site in Egypt, Turkey that can provide service timely with our engineers.
According to your needs, dedicated senior engineer will come to your factory for free install and training you how to operate the machine.
FAQ
How to ensure the quality of the machine?
We have our own industrial park. There are production centre and R&D centre and quality inspection centre to guarantee the machines quality. Before shipping, we will test the machine again to make sure the quality of the machine is good.
Which countries are your machines mainly sold to?
Our products exported to more than 20 countries and regions, including Turkey, Egypt, India, Pakistan, South Africa, Brazil etc.
