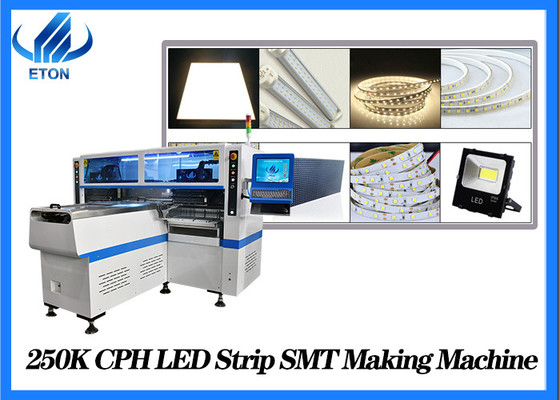

High efficiency Full-automatic 250000 CPH pick and place machine for Led tube/strip /panel lamp
The advantages of HT-F9 led tube light making machine
1. HT-F9, which has 68 heads, two mounting module, each mounting module has 34 heads;
2. HT-F9, which has 68 PCS of feeder station, adopt electric feeder with double motor feeding way
3. HT-F9, which Adopts group picking and group placing mounting mode, achieve high mounting speed;
4. HT-F9, which has uesd the high-end magnetic linear motor and servo motor, stepper motor to ensure the mounting speed and mounting precision
5. HT-F9, which has produced 4 types materials at the same time, for the Optimum mounting speed, it can reach 250000 CPH.
Machine parameter
| Model |
HT-F9 |
| Dimension(L*W*H) |
2700*2300*1550mm |
| Weight |
1700kg |
| PCB length width |
Max:1200*330mm;Min:100*100mm |
| PCB thickness |
0.5~5mm |
| Mounting precision |
±0.02mm |
| Mounting mode |
Group to take and group to mount |
| Mounting height |
≤5mm |
| Mounting speed |
250000 CPH |
| Power consumption |
6KW |
| No. Of feeders station |
68 PCS |
| No. Of head |
68 PCS |
SMT production line
For production line:including semi-automatic stencil printer, pick and place machine, conveyor and reflow oven.
the total length of HT-F9 pick and place machine is about 12.1 meter.
Company information
INDUSTRIAL PARK
We have our own industrial park,equipped with and advanced processing and manufacturing center,strict quality control,and standardize production,streamline production processes.and there is the fastest machine in the world,the capacity reach 50W CPH.
Shipping and Delivery
All machines are packed with vacuum and wooden packing
Step1:Film packaging.
Step2:Vacuum packaging.
Step3:Wooden box packaging
You can trust us, because we have professional and standard packaging to protect the machine.
Related machine
We can provide you a whole SMT line solution and equipment, you can look this picture, we have semi-auto/full-automatic stencil printer, glue dispenser(this machine is mainly for making led lens), conveyor, reflow oven, etc.
We can meet your any demands for equipment, and pursue quality higher than price for machine manufacturing
Certificates
As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA, etc.
Service
1. Before order:
We will support professional suggestion of SMT line
We will recommend the best model according to the products
We will supply best quotation with factory price
2. After order:
Machine will have good test and aging before shipping
We support machine free installation and training, special time we support online training, and video teaching.
We have Professional after-sales team, could solve problem as soon as possible
Machine warranty is one year, during warranty, any parts need to be repaired and replaced will be free for clients.
FAQ
How to ensure the quality of the machine?
We have our own industrial park. There are production centre and R&D centre and quality inspection centre to guarantee the machines quality. Before shipping, we will test the machine again to make sure the quality of the machine is good.
Which countries are your machines mainly sold to?
Our products exported to more than 20 countries and regions, including Turkey, Egypt, India, Pakistan, South Africa, Brazil etc.
Do you have oversea after sale service?
We can offer technical support abroad. If you have any technical problem, our engineers will support you promptly.
