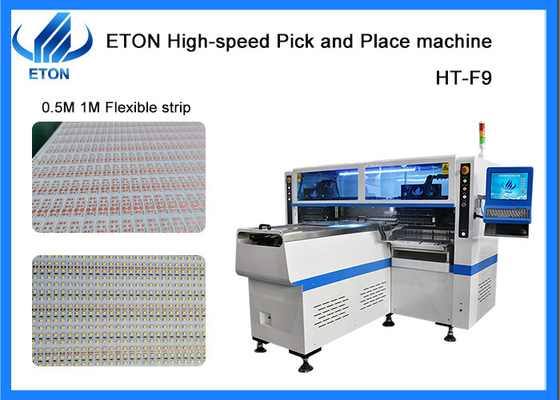

1200mm*330mm PCB SMT Pick And Place Machine For 0.5M 1M Strip Light

1200mm*330mm PCB SMT Pick And Place Machine For 0.5M 1M Strip Light
1200mm*330mm PCB SMT Pick And Place Machine For 0.5M 1M Strip Light

Large Image :  1200mm*330mm PCB SMT Pick And Place Machine For 0.5M 1M Strip Light

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CE,CCC,SIRA,ISO
Model Number: HT-F9
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Packing in film package and foam cotton, and covering vacuum bag within sturdy wooden boxes.
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Software: R&D Indepentently Positioning Accuracy: ±0.02 Mm
Model: HT-F9 Power Supply: 380AC 50 HZ
Mounting Mode: Group To Take And Group To Mount Optimum Mounting Speed: 250000CPH
Pcb Thinckness: 0.5-5mm Input Device: Keyboard,mouse
Highlight:

1200mm*330mm PCB pick and place machine

,

Pick Place Machine For 1M Strip

,

Pick Place Machine For 0.5M Strip

1200mm*330mm PCB for 0.5M 1M strip light SMT pick and place machine

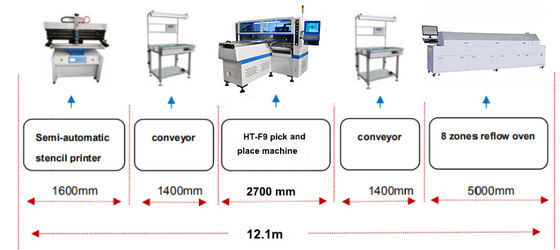

SMT Line solution

A whole semi automatic line which needs several devices for a whole semi production, as semi auto stencil printer machine, conveyor, pick and place machine and reflow oven etc.

The blowing is the function of each machine:

  • Semi auto stencil printer is aim of leaking solder paste or patching adhesive onto the solder pad of PCB to prepare for the welding of components;
  • Pick and place machine is to mount light beads or other surface mounted components at the designated position of PCB board；
  • Reflow oven is to melt the solder paste to fix and bond the components and PCB board.
  • Conveyor is used for the connection between SMT production lines, as well as buffering, testing, testing PCB boards or manual plug-in of electronic components;

1200mm*330mm PCB SMT Pick And Place Machine For 0.5M 1M Strip Light 0

Features

  • Apply to the 0.6 M, 0.9 M, 1.2 M rigid PCB and 0.5 M, 1 M LED flexible strip. Producing with 4 types of materials at the same time with high capacity. available for board with any proportion of LED chip and resistor.
  • Dual arm four module, 17 nozzles for each mounting part, part A/B/C/D can be mounted separately or synchronously.
  • Calibration automatically, high precision, available for RGB.
  • Exclusive patent technology: Group to take and group to mount.

1200mm*330mm PCB SMT Pick And Place Machine For 0.5M 1M Strip Light 1

Model HT-F9
Dimension
Length 2700mm
Width 2300mm
Height 1550mm
Total Weight 1700kg
PCB
PCB Length Width Max:1200*330mm Min:100*100mm
PCB Thickness 0.5-5mm
PCB Clamping Adjustable pressure pneumatic
Mounting Mode Group to take and group to mount
O.S.
System Windows7
Software R&D independently
Display Touch screen monitor
Input Device Keyboard, Mouse
Vision System
No. of Camera 5 PCS ( Digital camera)
Vision alignment, MARK correction
Repeat Mounting Precision ±0.02mm (Repeat precision)
Mounting Height ≦5mm
Optimal Mounting Speed 200000~250000 CPH
Components LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc.
Components Space 0.5mm
No. of Feeders Station 68 PCS
No. of head 68 PCS
Power 380AC 50 HZ
Power Consumption 6kw
Operating Environment 23℃±3℃
Conveyor Transmission Max Length :1200 mm
Transmission Speed >500 mm/sec
Transmission Direction Single(left→ right or right→ left)
Transmission Mode Online drive
Positioning way Optical
Air Supply 0.4-0.6mpa (4-6kgf/cm2)150N/min
Electrical control Independent research and development by ETON
Motion control card module 1 set Independent research and development by ETON
X,Y,Z Axis Drive way High-end magnetic linear motor+ servo motor
Feeding way Electric feeder with double motor

Certificates

1200mm*330mm PCB SMT Pick And Place Machine For 0.5M 1M Strip Light 2



Service

Free Installation: provide free installation machine to ensure smooth production

Free Warranty:1 year warranty factory service, free replacement of space parts

Free Training: Professional training of operating and maintenance

Free Technical Support: 7*24 technical online support

Free Software Upgrade: Offer free software upgrade whole lifetime



High service efficiency, there is service office in India. Besides India, we also have local engineers in Egypt, Turkey. Can provide you with timely services.

Chinese engineers provide online services. If necessary, Chinese engineers will come to your factory for free install and training.

Quality First, Client-oriented, Continuous Improvement.

24 hours online for you to answer.

1200mm*330mm PCB SMT Pick And Place Machine For 0.5M 1M Strip Light 3
