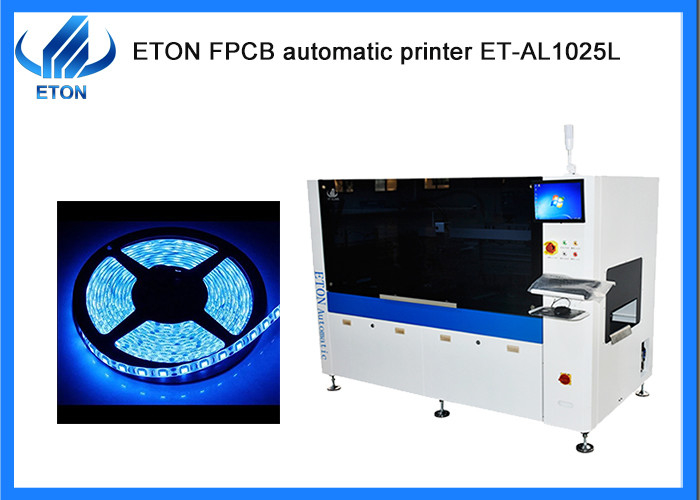

100m LED flexible strip SMEMA interface automatic printer SMT machine
Machine configuration
● Programmable suspension printing head;
● Standard stainless steel scraper, unique design, improve the service life of the blade;
● Downward vision alignment system;
● CNC guide rail adjustment;
● Industrial controlled computer,Windows XP interface operating system;
● Built-in software diagnostic system;
● SMEMA interface.
Technical parameter
| Screen Frames |
Min Size |
850mm |
| Max Size |
550mm |
| Thickness |
25~45mm |
| FPCB Min Size |
50mm |
| FPCB Max Size |
260mm |
| FPCB Thickness |
0.5~5mm |
| FPCB Warpage |
Max. FPCB diagonal 1％ |
| Transport Height |
900±40mm |
| Transport Direction |
Left-Right |
| Transport Speed |
Max 1000mm/S Programmable (Adjustable) |
| Board Location |
Support System |
Platform jacking tension |
| Clamping System |
Edge clamp fixed |
| Print head |
Two independent motorized print heads |
| Squeegee Speed |
6~300mm/sec |
| Squeegee Pressure |
0~10Kg/cm2 |
| Squeegee Angle |
55°(Standard) |
| Squeegee Type |
Stainless steel(Standard), plastic |
| Stencil Separation Speed |
0.1~20mm/sec Programmable |
| Cleaning System |
Manual cleaning |
| Table Adjustment ranges |
X:±5mm;Y:±5mm;θ:±2° |
| Machine |
| Repeat Position Accuracy |
±0.01mm |
| Printing Accuracy |
±0.025mm |
| Cycle Time |
≤9s (Exclude Printing & Cleaning) |
| Air Required |
4.5~6Kg/cm2 |
| Power Input |
AC:220±10%,50/60HZ 1Φ 1.5KW |
| Control Method |
PC Control |
| Machine Dimensions |
1754(L)X1249(W)X1600(H)mm |
| Machine Weight |
Approx:600Kg |
| FPCB transport over plate height |
20mm |
Market
Our products had exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc. And here are some of our big customers:
SURYA, POLYCAB, FIEM, RK, GK, TECHNO LED, CALCOM, ACK , KENDAL, RangDong, UNISTAR, and so on.
Shipping and Delivery
Land transportation: suitable for inland countries and it is affordable;
Air freight: for urgent good, and it is the most expensive transportation way;
Shipping: It’s suitable for heavy goods, and the convenience and lower cost of shipping which is easy for clients to accept the arrival time of the goods.
Packages
Step 1: Wrap with stretch film to prevent the equipment from.
Step 2: Vacuum paper packaging and moisture-proof bag, so that the machine can be kept dry during transportation to prevent moisture.
Step 3: Use straps and triangular wood to fix the machine to prevent damage to the machine during transportation.
Step 4: Each exported machine will be equipped with sturdy export wooden boxes, to ensure that the delivered product is good.
FAQ
Q. Can you accept CIF as the quoted price?
A. We only accept EXW as the quoted price for it is convenient and lower cost for both sides.
Q. Can I go and see if you have sold the equipment to India?
A. Yes, we have sold our machine in India, but for the fact we can't decide it for my customer, but I will try to contact my customer. Hope you can understand, because no one wants their competitors to visit their manufacturing site.
Q. How many products can your machine make per day?
A. The capacity of our machine is according to the real products, and the number of components on your PCB board that is important factor to figure out the actual speed of our machine with your products.
Q.What kind of machine you have?
A. We are the high speed SMT pick and place machine manufacturer, and also we build our brand to more efficient and convenient machine for our customers. We have multifunctional type, honor series, value series with high precision and high productivity.
