Machine main parameter

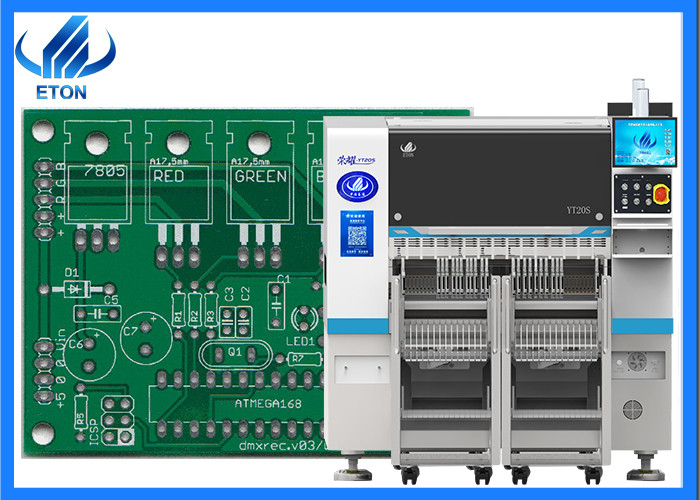

| Model |
YT20S |
| Dimension |
| Length |
1480mm |
| Width |
2680mm |
| Height |
1650mm |
| Total Weight |
2380kg |
| PCB |
| PCB Length Width |
Max:500*300mm(1200*450 option) Min:50*50mm |
| PCB Thickness |
0.5-5mm |
| PCB Clamping |
Cylinder clamping, track width adjustable |
| Mounting Mode |
Group picking and separate placingseparate picking and separate placing |
| O.S. |
| System |
Windows7 |
| Software |
R&D independently |
| Display |
LED monitor |
| Input Device |
Keyboard, Mouse |
| Vision System |
| No. of Camera |
1 PCS (Head flight vision camera) |
| 2 PCS Mark camera |
| Mounting Precision |
CHIP±0.03mm QFP±0.025mm Cpk ≧1.0 (3σ) |
| Mounting Height |
≦16mm (Other height can be customized) |
| Mounting Speed |
98000 CPH(Under best condition) |
| Components |
0201~12MM packaging material and IC material(Optional fixed camera for 0201~35*35MM),Other component size can be customized |
| Components Space |
0.2mm |
| No. of Feeders Station |
104 PCS |
| No. of nozzles |
20 PCS |
| Power |
220AC 50HZ |
| Power Consumption |
1.5kw |
| Operating Environment |
23℃±3℃ |
| Transmission Speed |
＞1000mm/sec |
| Transmission Direction |
Single(left→ right or right→ left) |
| Transmission Mode |
Online drive |
| Position Mode |
Optical |
| Gas consumption |
0.4-0.6mpa (4-6kgf/cm2)600N/min |
| Electrical control |
Independent research and development by ETON |
| Motion control card module 1 set |
Independent research and development by ETON |
| X,Y,Z Axis Drive way |
High-end magnetic linear motor |
| Feeding way |
Intelligent feeder with double motor |
| Production management MES system interface |
Customized |
Company Introduction:
We are an experienced manufacturer of SMT. Our company has been established for ten years, the company has more than 300 employees, the company is a large-scale, is the top domestic enterprises.
1.10 years development history.
2.Independent R&D Exclusive Patented technology.

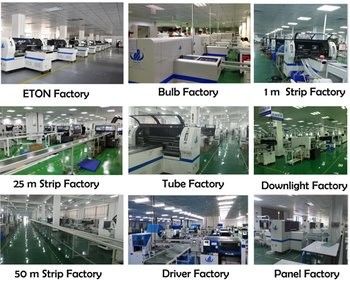

3.80% large and listed LED factory are our client.
4.Top 1 in high-speed pick and place machine in China.
Service:
We can provided you with excellent service.
Packaging:
As for the packing of the products, we use vacuum packing to reduce the damage of the products. After vacuum packing the machines, we use wooden boxes to cover them to ensure the safety of the machines.
FAQ:
Q: How to operate the machine?
A: We will provide online video to help you to operate, we also have professional overseas engineers to your factory provide install, training service until you can operate the machine adroitly.
Q: Does your machines have quality certificate?
A: All of the machines have passed CE,SIRA and CCC certificate and have own patent.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
Q: Is there a warranty on this, please?
A: We offer a one-year Warranty and free repair and replacement parts within one year.
Q: How can I get to know you better?
A: You can have a specific understanding of our company through our company's official website. After the epidemic, you can come to our company to know offline under safe conditions. Offline can make you have a deeper impression on our company.
