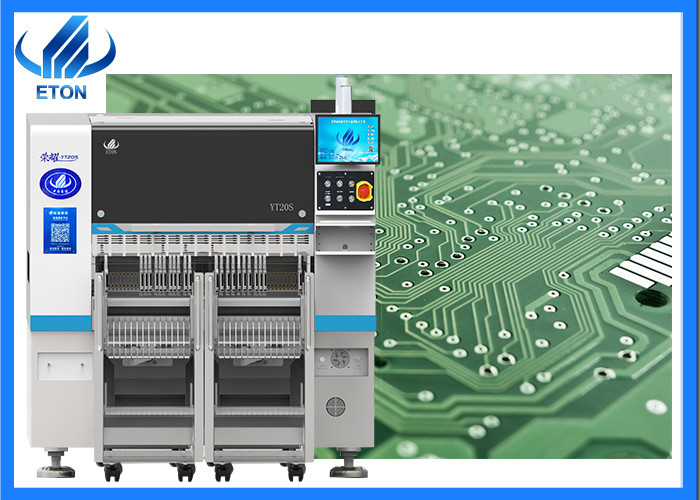

Machine main parameter
| Model |
YT20S |
| Dimension |
| Length |
1480mm |
| Width |
2680mm |
| Height |
1650mm |
| Total Weight |
2380kg |
| PCB |
| PCB Length Width |
Max:500*300mm(1200*450 option) Min:50*50mm |
| PCB Thickness |
0.5-5mm |
| PCB Clamping |
Cylinder clamping, track width adjustable |
| Mounting Mode |
Group picking and separate placingseparate picking and separate placing |
| O.S. |
| System |
Windows7 |
| Software |
R&D independently |
| Display |
LED monitor |
| Input Device |
Keyboard, Mouse |
| Vision System |
| No. of Camera |
1 PCS (Head flight vision camera) |
| 2 PCS Mark camera |
| Mounting Precision |
CHIP±0.03mm QFP±0.025mm Cpk ≧1.0 (3σ) |
| Mounting Height |
≦16mm (Other height can be customized) |
| Mounting Speed |
98000 CPH(Under best condition) |
| Components |
0201~12MM packaging material and IC material(Optional fixed camera for 0201~35*35MM),Other component size can be customized |
| Components Space |
0.2mm |
| No. of Feeders Station |
104 PCS |
| No. of nozzles |
20 PCS |
| Power |
220AC 50HZ |
| Power Consumption |
1.5kw |
| Operating Environment |
23℃±3℃ |
| Transmission Speed |
＞1000mm/sec |
| Transmission Direction |
Single(left→ right or right→ left) |
| Transmission Mode |
Online drive |
| Position Mode |
Optical |
| Gas consumption |
0.4-0.6mpa (4-6kgf/cm2)600N/min |
| Electrical control |
Independent research and development by ETON |
| Motion control card module 1 set |
Independent research and development by ETON |
| X,Y,Z Axis Drive way |
High-end magnetic linear motor |
| Feeding way |
Intelligent feeder with double motor |
| Production management MES system interface |
Customized |
Company Introduction:
Our company has been established for 10 years and has gained a good reputation at home and abroad. Just because we have 10 years of experience and fifty-two thousand square meters of industrial park, we are the top company in our country, we also offer free software updates and a year of free maintenance
Service:
We can provided you with excellent service.
Packaging:
As for the packing of the products, we use vacuum packing to reduce the damage of the products. After vacuum packing the machines, we use wooden boxes to cover them to ensure the safety of the machines.
FAQ
Q: Are you a trade company or a manufacturer?
A:We are an experienced manufacturer of SMT. Our company has been established for ten years, the company has more than 300 employees, the company is a large-scale, is the top domestic enterprises
Q: What's your delivery date?
A: The delivery date is about 30 days upon the down payment.
Q: Will you be participate the exhibition around the world?
A: Yes, our company go to many countries to participates in the exhibition,such as Egypt, India, Turkey, Delhi, Pakistan. If you have a chance to visit, you can get to know our company and our products better.
Q: What's your machine quality?
A: We have our own industrial park. There are production centre and R&D centre and quality inspection centre to guarantee the machine quality.
Q: Is there a warranty on this, please?
A: We offer a one-year Warranty and free repair and replacement parts within one year.
