Product details
- High-speed magnetic linear motor pick and place machine in led light SMT production line
- Dual arm four module,17 nozzles for each mounting part, part A or part B can be mounted separatly or synchronously.
- Producing 4 types materials at the same time with high capacity.
- Automatically fills components to missing coordinates
- MARK visual correction system
- Magnetic linear motor and servo motor,using Israeli technology,ensure the accuracy of X,Y and Z axis
- Component:LED3014,3020,3528,5050,capacitors,resistors,IC,bridge rectifiers.
- Application :available for 5M,50M or any length of flexible strip and Roll to Roll.
Machine parameters
| length |
3100mm |
| Width |
2300mm |
| Height |
1550mm |
| Total Weight |
1700kg |
| PCB Length Width |
250mm*any length |
| PCB Thickness |
0.5-1.5mm |
| Mounting Mode |
Group picking and separately placing |
| Mounting Height |
≦5mm |
| Mounting Speed |
250000CPH |
| Components |
LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc. |
| Components Space |
0.5mm |
| No. of Feeders Station |
68 PCS |
| No. of head |
68 PCS |
| Feeding way |
Electric feeder with double motor |
Description of the product
Producing with Producing 4 types materials at the same time with high capacity, available for 5M, 50M or any length of Flexible strip and Roll to roll.
Dual arm four module, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
Calibration automatically, high precision, available for RGB.
Exclusive patent technology: Group to pick and group to mount.

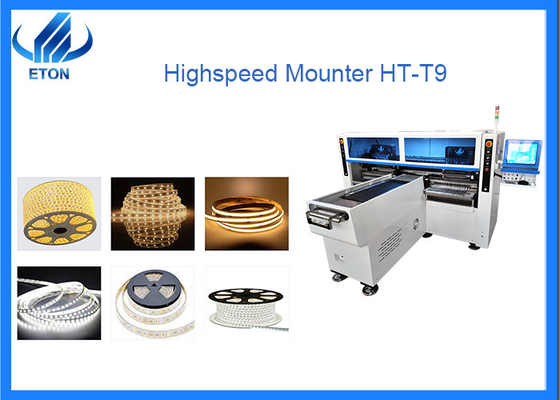

T9 is different from other high-speed machines. It is only for 250 * flexible strips of any length
