Machine details
|
High capacity
|

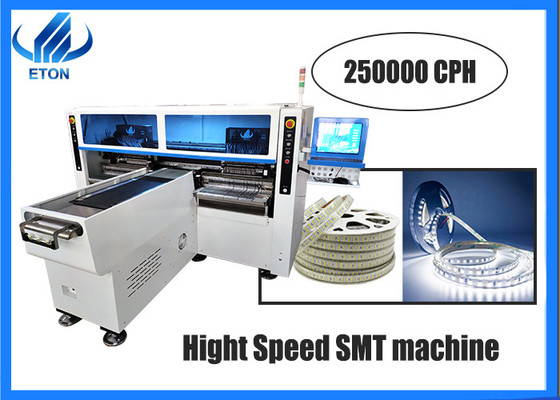

- High-speed magnetic linear motor pick and place machine in led light SMT production line
- Two mounting module,17 nozzles pasted on the PCB board at the same time,maximum mounting speed 250000 CPH
|
|
High precision
|
- Automatically fills components to missing coordinates
- MARK visual correction system
- Magnetic linear motor and servo motor,using Israeli technology,ensure the accuracy of X,Y and Z axis
|
|
Power functions
|
- Component:LED,capacitors,resistors,IC,shaped components,etc.
- Application:LED light,like flexible strip,tube,panel light.
|
|
Operation&maintenance
|
- Chinese and English graphical interface,easy to operate
- Free software upgrades for life,can be saved and edited files,arbitrary call
- Easy maintenance:easy maintenance,low cost of replacement parts,low maintenance cost.
|
Machine parameters
| length |
3100mm |
| Width |
2300mm |
| Height |
1550mm |
| Total Weight |
1700kg |
| PCB Length Width |
250mm*any length |
| PCB Thickness |
0.5-1.5mm |
| Mounting Mode |
Group picking and separately placing |
| Mounting Height |
≦5mm |
| Mounting Speed |
250000CPH |
| Components |
LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc. |
| Components Space |
0.5mm |
| No. of Feeders Station |
68 PCS |
| No. of head |
68 PCS |
| Feeding way |
Electric feeder with double motor |
Description of the product
Producing with Producing 4 types materials at the same time with high capacity, available for 5M, 50M or any length of Flexible strip and Roll to roll.
Dual arm four module, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
Calibration automatically, high precision, available for RGB.
Exclusive patent technology: Group to pick and group to mount.
T9 is different from other high-speed machines. It is only for 250 * flexible strips of any length
Packing and payment
Terms of payment: 30% depositing on the date of signing contract,70% payment before delivery
All machines are packed with vacuum and wooden packing
Step1:Film packaging.
Step2:Vacuum packaging.
Step3:Wooden box packaging
You can trust us, because we have professional and standard packaging to protect the machine.
Company quality principle
Our company is a leading manufacturer of automatic high-speed pick and place machine focusing on High efficiency Low consumption.ETON with more than 10 years experience in SMT machine field.And we have rated many awed,like Shenzhen high-tech enterprise,China high-tech enterprise,Industry Special Contribution Aware,etc.
25m flexible SMT automatic production line
Our industrial park
The factory belonging to our company has been successfully built, there is 50000 SQM,equipped with advanced processing and manufacturing centers, scientific research buildings, exhibition halls, etc., to ensure quality from the source and further standardize production processes.
Our service
- If you buy our machine,we will arrange engineers to install,debug and training you for free,until you learn to operate the machine.
- We have office in Mumbai and New Delhi,service is very convenient
- Besides India,we also have local engineers in Egypt,Turkey,can provide you with timely service.
- Chinese engineer provide online service
FAQ
If I have no experience,The machine is easy to use?
Yes,our machine is designed to use easily,usually spend 7 days to learn how to operate. we will arrange enginners to your factory for training and installation for free.
How is the breakdown rate of machine?
Our machine is very stable,the breakdown rate is less than 0.001;.
Is your software interface in English?
English interface and Chinese interface are both available.
Why your price is so high?
Because the quality, accuracy and performance of our machines are relatively good,different but better.
