Machine details
|
High capacity
|

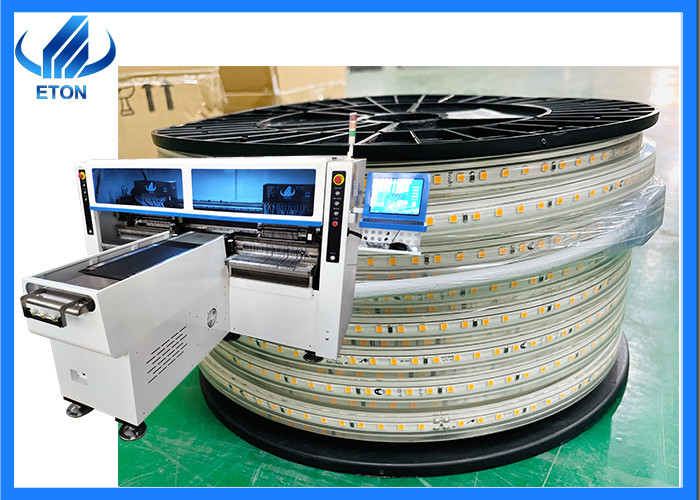

- High-speed magnetic linear motor pick and place machine in led light SMT production line
- Two mounting module,17 nozzles pasted on the PCB board at the same time,maximum mounting speed 250000 CPH
|
|
High precision
|
- Automatically fills components to missing coordinates
- MARK visual correction system
- Magnetic linear motor and servo motor,using Israeli technology,ensure the accuracy of X,Y and Z axis
|
|
Power functions
|
- Component:LED,capacitors,resistors,IC,shaped components,etc.
- Application:LED light,like flexible strip,tube,panel light.
|
|
Operation&maintenance
|
- Chinese and English graphical interface,easy to operate
- Free software upgrades for life,can be saved and edited files,arbitrary call
- Easy maintenance:easy maintenance,low cost of replacement parts,low maintenance cost.
|
Machine parameters
| length |
3100mm |
| Width |
2300mm |
| Height |
1550mm |
| Total Weight |
1700kg |
| PCB Length Width |
250mm*any length |
| PCB Thickness |
0.5-1.5mm |
| Mounting Mode |
Group picking and separately placing |
| Mounting Height |
≦5mm |
| Mounting Speed |
250000CPH |
| Components |
LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc. |
| Components Space |
0.5mm |
| No. of Feeders Station |
68 PCS |
| No. of head |
68 PCS |
| Feeding way |
Electric feeder with double motor |
Description of the product
Producing with Producing 4 types materials at the same time with high capacity, available for 5M, 50M or any length of Flexible strip and Roll to roll.
Dual arm four module, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
Calibration automatically, high precision, available for RGB.
Exclusive patent technology: Group to pick and group to mount.
T9 is different from other high-speed machines. It is only for 250 * flexible strips of any length
Transportation& Package
By sea
The advantages of sea transportation are convenience, cheapness, and strong carrying capacity
By railway
The advantages of shipping are economical and affordable, with large transportation capacity, which is more suitable for inland countries.
By air
The advantage of air transportation is that it is convenient and fast, which is more suitable for urgent items.
We use vacuum wooden box packaging
A leading manufacturer of automatic high-speed pick and place machine
The largest high-tech LED light making machine in China
We have more than 250+ invention patents, practical patents and software copyright
There is 50000 square meters modern intelligent industrial parks,equipped with an advanced processing and manufacturing center
There are fastest machine mounting speed in the world,the capacity reach 500000 CPH
25m flexible SMT automatic production line
Our after-sales service
- Maintenance period:1 year(during the period,any parts need to be repaired and replaced will be free.)
- Software are R&D independently and provide upgrade it for free a lifetime
- We provide free install and training
- Our company has service offices in Turkey and India,which can provide you with the greatest convenience.
Payment,service
- The payment method we usually support is T/T
- The delivery is within 30 days after receiving the deposit!
FAQ
If I have no experience,The machine is easy to use?
Yes,our machine is designed to use easily,usually spend 7 days to learn how to operate. we will arrange enginners to your factory for training and installation for free.
How is the breakdown rate of machine?
Our machine is very stable,the breakdown rate is less than 0.001;.
Is your software interface in English?
English interface and Chinese interface are both available.
Why your price is so high?
Because the quality, accuracy and performance of our machines are relatively good,different but better.
