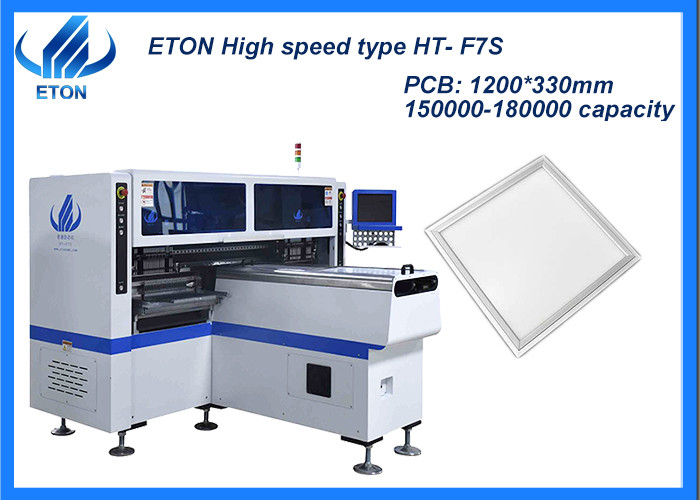

Linear LED lighting 180000 capacity high speed SMT placement machine
Production description
- Apply to the 0.6m, 0.9m, 1.2m rigid PCB and 0.5m, 1m LED flexible strip, producing with 4 types materials at the same time with high capacity, available for board with any proportion of LED chip and resistor.

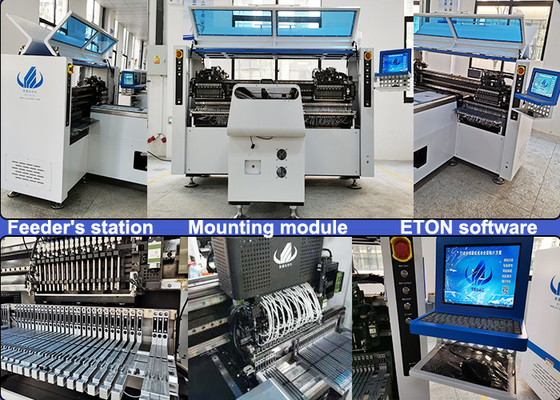

- Dual arm four module, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
- Calibration automatically, high precision, available for RGB.
- Exclusive patent technology: Group picking and group mount placing.
- IPC9850 capacity: 150000-180000 CPH
Machine parameter
| Model |
HT-F7S |
| Dimension |
2700*2300*1550mm |
| Total weight |
1700kg |
| PCB length width |
Max: 1200*330mm
Min: 100*100mm
|
| PCB thickness |
0.5-5mm |
| PCB clamping |
Adjustable pressure pneumatic |
| Mounting mode |
Group picking and group placing |
| Mounting precision |
±0.02mm |
| Mounting speed |
150000-180000 CPH |
| No. of feeders station |
68 PCS |
| No. of head |
34PCS |
Market
Our products had exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc. And here are some of our big customers:
SURYA, POLYCAB, FIEM, RK, GK, TECHNO LED, CALCOM, ACK , KENDAL, RangDong, UNISTAR, and so on.
Packages
Packing in film package and foam cotton, and covering vacuum bag within sturdy wooden boxes.
Keep a good quality of the machine when during transportation till the destination of our clients which is an imperative aspect for one of a suitable service for our clients to buy our machine, so making sure of a qualified and sturdy packing is a key mission for us, here are the specified steps for your reference:
Related machine

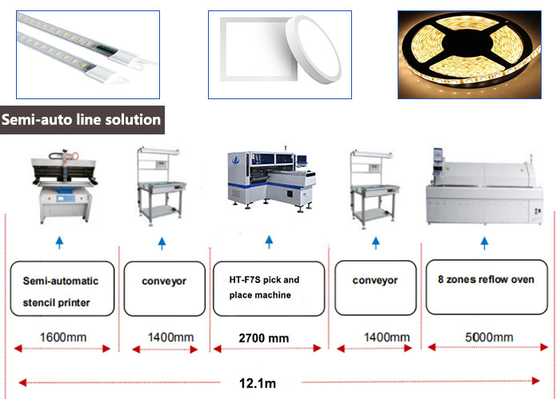

ETON is a leading SMT high speed pick and place machine manufacturer in China, and we also provide whole line solution with peripheral devices as stencil printer, conveyor, glue dispenser, transitional and reflow oven etc.
FAQ
Q. What is your actual speed of your products?
A. For the actual speed of the machine which is constrained by many factors, that related to the number of the components, the time to send PCB board and receive the board, etc. And is decide for the actual products and needs.
Q. How many components can your pick and place machine mount in a PCB board?
A. While this is for our clients needs and the size of the PCB board.
Q. Can you accept D/P or D/A as the payment term?
A. For our regular payment terms, we usually use T/T.
Q. How can I contact you to buy the goods in an efficient way?
A. Making enquiry of the products you want on the trading platform of Alibaba, Tradelink, foreign trade Express, or contact us with the social software as Whatsapp, Skype, etc.
Q. How can I look around your industrial park if I am on aboard?
A. If you have Chinese agent we can make an appointment to show you the environment, of course we also can make video call to show you the industrial park, or we will do some video to you if you need.
