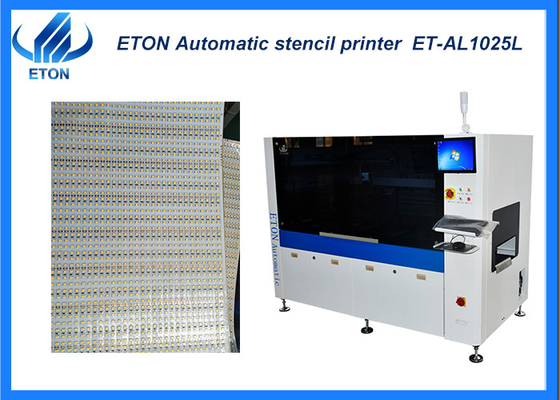

Shenzhen automatic stencil printer machine for roll to roll strip light
Description
●Programmable suspension printing head;
●Two sets of stepping motor drive, the pressure of front and rear scraper can be adjusted separately to ensure the inconsistency of front and rear printing caused by fatigue deformation of scraper material;
●Effectively control the stroke, improve the printing efficiency, and prevent the leakage of solder paste;
● Standard stainless steel scraper, unique design, improve the service life of the blade;
● Downward vision alignment system;
● CNC guide rail adjustment;
● Industrial controlled computer,Windows XP interface operating system;
● Built-in software diagnostic system;
● SMEMA interface.
Technical parameter
| Screen Frames |
Min Size |
850mm |
| Max Size |
550mm |
| Thickness |
25~45mm |
| FPCB Min Size |
50mm |
| FPCB Max Size |
260mm |
| FPCB Thickness |
0.5~5mm |
| FPCB Warpage |
Max. FPCB diagonal 1％ |
| Transport Height |
900±40mm |
| Transport Direction |
Left-Right |
| Transport Speed |
Max 1000mm/S Programmable (Adjustable) |
| Board Location |
Support System |
Platform jacking tension |
| Clamping System |
Edge clamp fixed |
| Print head |
Two independent motorized print heads |
| Squeegee Speed |
6~300mm/sec |
| Squeegee Pressure |
0~10Kg/cm2 |
| Squeegee Angle |
55°(Standard) |
| Squeegee Type |
Stainless steel(Standard), plastic |
| Stencil Separation Speed |
0.1~20mm/sec Programmable |
| Cleaning System |
Manual cleaning |
| Table Adjustment ranges |
X:±5mm;Y:±5mm;θ:±2° |
| Machine |
| Repeat Position Accuracy |
±0.01mm |
| Printing Accuracy |
±0.025mm |
| Cycle Time |
≤9s (Exclude Printing & Cleaning) |
| Air Required |
4.5~6Kg/cm2 |
| Power Input |
AC:220±10%,50/60HZ 1Φ 1.5KW |
| Control Method |
PC Control |
| Machine Dimensions |
1754(L)X1249(W)X1600(H)mm |
| Machine Weight |
Approx:600Kg |
| FPCB transport over plate height |
20mm |
Market
Our products had exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc. And here are some of our big customers:
SURYA, POLYCAB, FIEM, RK, GK, TECHNO LED, CALCOM, ACK , KENDAL, RangDong, UNISTAR, and so on.
Packages

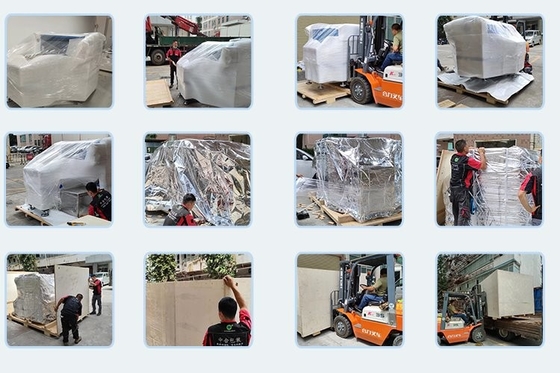

Our package step is follow the blowing:
STEP 1: Film packaging to prevent the dust and water;
STEP 2: Packing in a foam cotton stretch a film to protect the outside of the machine;
STEP 3: Vacuum paper package and moisture proof bag, to keep dry during the transportation;
STEP 4: Equip with sturdy wooden boxes to ensure the safety of the machine, then transportation by trucks to the specified port.
Delivery: by sea, air, land transport.
