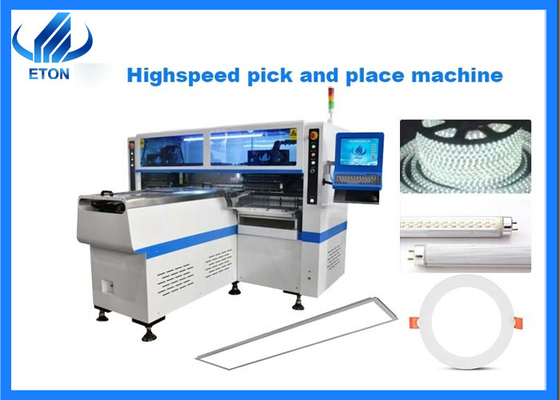

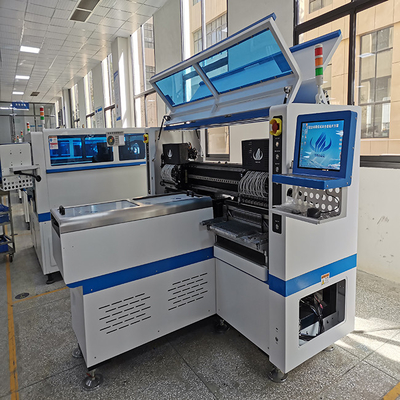

HT-F9 is dual arm magnetic linear LED highspeed pick and place machine,producing 4 types materials at the same time ,capacity reach 250000CPH .
Apply to the 0.6M,0.9M,1.2M rigid PCB and 0.5M,1M LED flexible strip.Producing with 4 types materials at the same time with high capacity,avaible for board with any proportion of led chip and resistor.

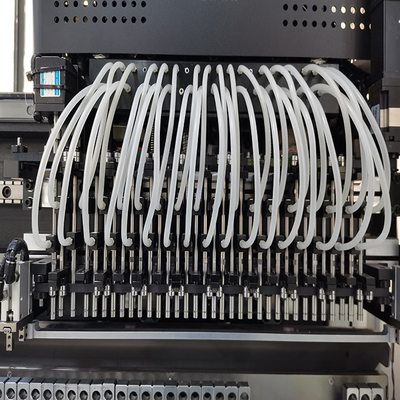

Dual arm four module,17 nozzles for each mounting part,part A/B/C/D can be mounted separately or synchronously.
Calibration automatically,high precision,available for RGB.
Exclusive patent technology: Group to take and group to mount.
Technical parameter
| length |
2700mm |
| width |
2300mm |
| height |
1550mm |
| Total weight |
1700kg |
| Mounting speed |
250000CPH |
| components |
LED3014/3020/3528/5050 and resistor,capacitor,bridge rectifiers |
| Electrical control |
Independent research and development by ETON |
| X,Y Axis driver way |
High-end magnetic linear motor+servo motor |
| Feeding way |
Electric feeder with double motor |
Company and exhibition
Shenzhen ETON Automation Equipment Co., Ltd., founded in 2011, is a provider focusing on the R & D, production and sales of SMT high-speed mounter and SMT peripheral automation equipment, as well as the manufacturing and process scheme of garment production. The company has SMT high-speed Mounter business unit, precision solder paste printing equipment business unit, high-speed precision dispensing defense business unit and SMT peripheral automatic makeup equipment business unit.
Our company has participated in many exhibitions abroad, including Thailand Exhibition, Turkey exhibition, India Mumbai exhibition, India Delhi exhibition, Pakistan exhibition, Egypt exhibition, etc. There are also domestic Guangzhou Guangya Exhibition, Shanghai Munich exhibition and Chongqing led exhibition.
Other machine
our pick and place machine is divided into multi-function machine and high-speed machine.we cna not only provide you with pick and place machine,but also provide you with printing machine,loading machine,unloading machine,conveyor,translational machine,refloe oven,etc.
service
FAQ
1:Are you a factory or trading company?
A:We are a professional manufacturer of mounter.And we have our own brand mounter production line.
2:Do you provide installation service?
A:We have engineer in India, Turkey, Egyp.
3:What is your delivery date?
The delivery date is about 20 days upon the full payment.
4:Does the price include nozzles and feeders?
A:We don't include nozzles and feeders,because each customer requires different nozzles and feeders.
5:Does your company only buy Mounter?
A;We also provide Send board machine ,pcb un-lodaer,semi-automatic stencil printer,automatic stencil printer,conveyor,pick and place machine.
