Machine main parameter

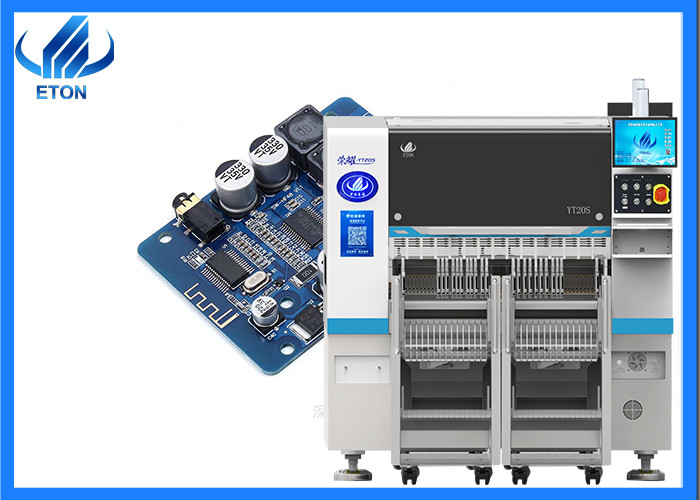

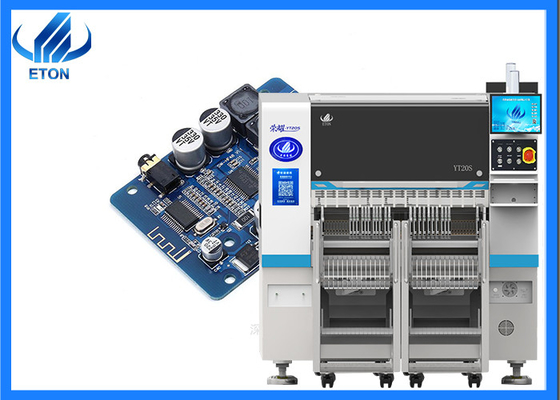

| Model |
YT20S |
| Dimension |
| Length |
1480mm |
| Width |
2680mm |
| Height |
1650mm |
| Total Weight |
2380kg |
| PCB |
| PCB Length Width |
Max:500*300mm(1200*450 option) Min:50*50mm |
| PCB Thickness |
0.5-5mm |
| PCB Clamping |
Cylinder clamping, track width adjustable |
| Mounting Mode |
Group picking and separate placingseparate picking and separate placing |
| O.S. |
| System |
Windows7 |
| Software |
R&D independently |
| Display |
LED monitor |
| Input Device |
Keyboard, Mouse |
| Vision System |
| No. of Camera |
1 PCS (Head flight vision camera) |
| 2 PCS Mark camera |
| Mounting Precision |
CHIP±0.03mm QFP±0.025mm Cpk ≧1.0 (3σ) |
| Mounting Height |
≦16mm (Other height can be customized) |
| Mounting Speed |
98000 CPH(Under best condition) |
| Components |
0201~12MM packaging material and IC material(Optional fixed camera for 0201~35*35MM),Other component size can be customized |
| Components Space |
0.2mm |
| No. of Feeders Station |
104 PCS |
| No. of nozzles |
20 PCS |
| Power |
220AC 50HZ |
| Power Consumption |
1.5kw |
| Operating Environment |
23℃±3℃ |
| Transmission Speed |
＞1000mm/sec |
| Transmission Direction |
Single(left→ right or right→ left) |
| Transmission Mode |
Online drive |
| Position Mode |
Optical |
| Gas consumption |
0.4-0.6mpa (4-6kgf/cm2)600N/min |
| Electrical control |
Independent research and development by ETON |
| Motion control card module 1 set |
Independent research and development by ETON |
| X,Y,Z Axis Drive way |
High-end magnetic linear motor |
| Feeding way |
Intelligent feeder with double motor |
| Production management MES system interface |
Customized |
Company Introduction:
Shenzhen ETON Automation Equipment Co. LTD. is a leading manufacturer of automatic high-speed pick and place machine focusing on “High efficiency Low consumption” in the word, meanwhile ETON is also the largest high-tech manufacturer in China with strong capability of design, R&D, manufacturing, sales and service.

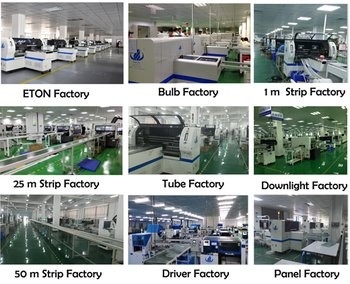

1.We have our own industrial park with an area of 50,000 square meters, which is specially used to develop and manufacture various SMT equipment.
2.More than 15 years LED lighting field experiences , provide the most suitable SMT program to every client.
3.Has own professional R&D team, has Indian engineer, Indian office,Egypt engineer, etc. Can provide support promptly.
Service:
Maintenance period 1 year
One year warranty. during warranty. any parts that need to be repaired and replaced will be free.
Software and hardware lifetime maintenance
Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates.
Visit customers regularly and gather information
Visit clients regularly. We attend the different exhibition in different cities every year, at the same time, we will visit local clients and support our service and collect feedback on customer suggestions in time.
Provide the latest information about technology and equipment
We give professional technology suggestions to our clients. And share the updated news with our clients
On-site service
We have some official site in India as Mumbai and New Delhi, also have site in Egypt, Turkey that can provide service timely with our engineers.
According to your needs, dedicated senior engineer will come to your factory for free install and training you how to operate the machine.
Packaging:
As for the packing of the products, we use vacuum packing to reduce the damage of the products. After vacuum packing the machines, we use wooden boxes to cover them to ensure the safety of the machines.
FAQ:
1.How long can the delivery date take?
If have stock the delivery date is about 20 days, others is according to the actual situation.
2.What is your usual payment term?
Our usual payment term is T/T, that requires to pay 30% in advance, and pay the balance off before the delivery of the goods.
3.What is your actual speed of your products?
For the actual speed of the machine which is constrained by many factors, that related to the number of the components, the time to send PCB board and receive the board, etc. And is decide for the actual products and needs.
