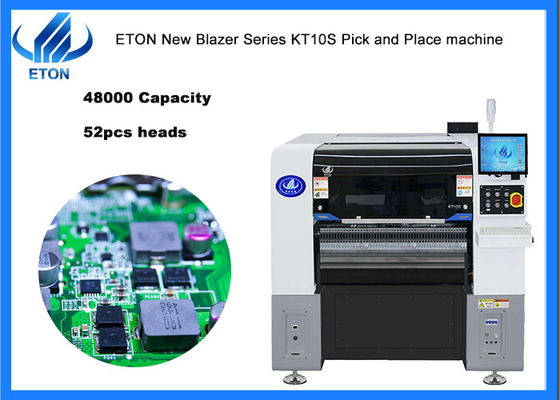

High Capacity 48000CPH LED Lighting Mounting SMT Pick And Place Machine With 52 Feeders

High Capacity 48000CPH LED Lighting Mounting SMT Pick And Place Machine With 52 Feeders
High Capacity 48000CPH LED Lighting Mounting SMT Pick And Place Machine With 52 Feeders

Large Image :  High Capacity 48000CPH LED Lighting Mounting SMT Pick And Place Machine With 52 Feeders

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CE,CCC,SIRA,ISO
Model Number: KT10S
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Packing in film package and foam cotton, and covering vacuum bag within sturdy wooden boxes.
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Warranty: 1 Year Applicable Components: 0402
Application: SMD Production Line,SMT Production Line,for SMT Machine Condition: New
Mounting Speed: 48000 CPH Usage: Circuit Board Assembly,SMT Mounting Machine,SMD
Feeders: 52 PCS (104 PCS Option) Pcb Thickness: 0.5-5 Mm
Highlight:

48000CPH SMT Pick And Place Machine

,

LED Lighting Mounting Pick Place Machine

,

High Capacity LED Lighting Mounting Machine

48000 capacity LED lighting mounting SMT pick and plce machine

Description
Machine main features

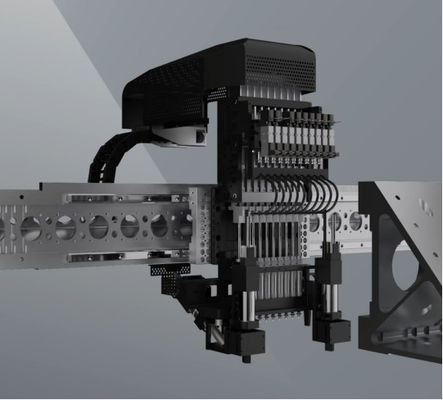

  • Single module X,Y,Z axis high-end magnetic linear motor, high precision than classic model
  • Y axis double drive gantry, higher speed more stability
  • The placement head adopt independent vacuum detection, improve the placement performance
  • Off-line programming, save time of changeover cycle
  • Equipped coordinate import function, more intelligent


Machine main parameter

ModelKT10S
Dimension1460*2015*1654mm
Total weight2080kg
PCB sizeMax:500*450mm(Length can be customized) Min:50*50mm
PCB thickness0.5-5mm
Mounting precisionCHIP±0.03mm, QFP±0.025mm, Cpk≧1.0(3σ)
Mounting speed48000 CPH(Optimal speed)
ComponentsLED, capacitor, resistors, shaped components,etc
Power consumption220AC 50HZ 1.5KW
Feeder station52 PCS(option 104 PCS), IC tray option

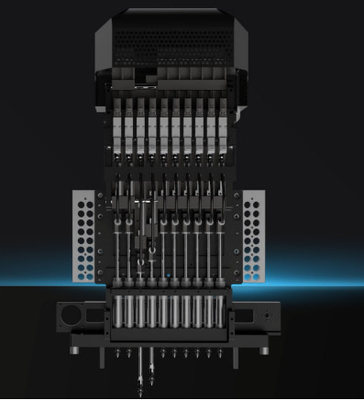

No. of head10 PCS

High Capacity 48000CPH LED Lighting Mounting SMT Pick And Place Machine With 52 Feeders 0

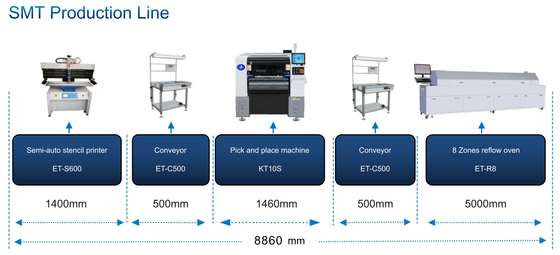

SMT Line solution
The SMT production line has two schemes: semi-automatic and fully automatic line. If you are just starting to do it, I suggest you do a semi-automatic production line, which can effectively save your cost.
High Capacity 48000CPH LED Lighting Mounting SMT Pick And Place Machine With 52 Feeders 1
Service
Pre-sale service
Provide suitable production plan
Advise on plant electrical equipment and layout
Sale service
Report machine status in time
Follow up and send test machine video
After-sales service
Software lifetime upgrade
24 hours to deal with problems online
Engineers can arrive on site to teach operation and debug the machine
Regular visit (one year warranty period, spare parts repair free; Once or twice a year after warranty)
High Capacity 48000CPH LED Lighting Mounting SMT Pick And Place Machine With 52 Feeders 2
Our Exhibitions
As an experienced company of trading SMT pick and place machine with more than 30 countries and regions aboard, Eton has participated in many exhibitions of foreign countries, such as India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc. And also we have took part in our domestic exhibition, like Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED light Exhibition, etc.
High Capacity 48000CPH LED Lighting Mounting SMT Pick And Place Machine With 52 Feeders 3
FAQ
Q.What is your merits of the machine to others production?
A. Initially, we have a strong R&D department for studying our productions, and our clients can enjoy free up-grade of the machine to get latest information about technology and equipment, besides, we have a 52000 square meters industrial park to serve the production, assembly, and commissioning of our machines.

Q. If I need a perfect line of the machine can you supply?
A. Yes, for the requirements of a whole line for production, we have professional equipment to make up for a perfect production line for your products, on account of we have a 50000 square meters of industrial park and excellent R&D staff, which can produce 50 sets of machine per month.

Q. How was your services?
A. We ensure our clients to enjoy an optimal experience of the service of communication and relevant needs of the machine for installation, maintenance and free up- grade.
