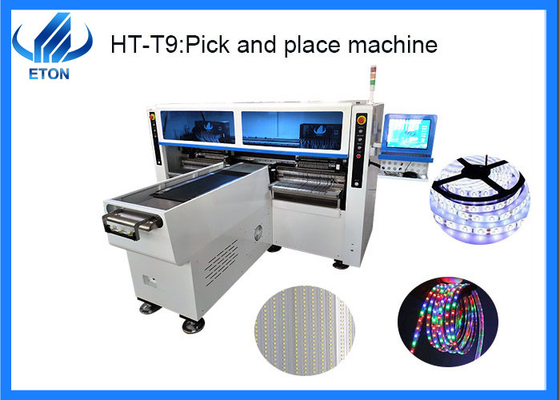

Machine details
|
High capacity
|
- High-speed magnetic linear motor pick and place machine in led light SMT production line

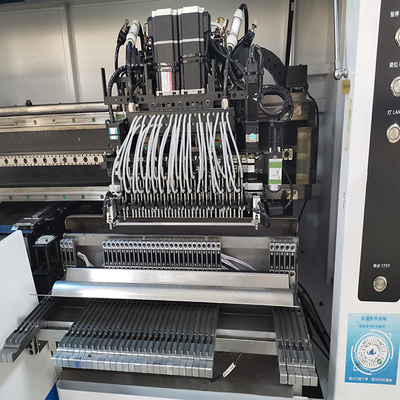

- Two mounting module,17 nozzles pasted on the PCB board at the same time,maximum mounting speed 250000 CPH
|
|
High precision
|
- Automatically fills components to missing coordinates
- MARK visual correction system
- Magnetic linear motor and servo motor,using Israeli technology,ensure the accuracy of X,Y and Z axis
|
|
Power functions
|
- Component:LED,capacitors,resistors,IC,shaped components,etc.
- Application:LED light,like flexible strip,tube,panel light.
|
|
Operation&maintenance
|
- Chinese and English graphical interface,easy to operate
- Free software upgrades for life,can be saved and edited files,arbitrary call
- Easy maintenance:easy maintenance,low cost of replacement parts,low maintenance cost.
|
Machine parameters
| length |
3100mm |
| Width |
2300mm |
| Height |
1550mm |
| Total Weight |
1700kg |
| PCB Length Width |
250mm*any length |
| PCB Thickness |
0.5-1.5mm |
| Mounting Mode |
Group picking and separately placing |
| Mounting Height |
≦5mm |
| Mounting Speed |
250000CPH |
| Components |
LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc. |
| Components Space |
0.5mm |
| No. of Feeders Station |
68 PCS |
| No. of head |
68 PCS |
| Feeding way |
Electric feeder with double motor |
Packing and payment
Terms of payment: 30% depositing on the date of signing contract,70% payment before delivery
All machines are packed with vacuum and wooden packing
Step1:Film packaging.
Step2:Vacuum packaging.
Step3:Wooden box packaging
You can trust us, because we have professional and standard packaging to protect the machine.
Company quality principle
ETON has invented the fastest automatic pick and place machine with speed 500000CPH. Since its establishment in 2011, ETON has been committed to the development and production of SMT placement machines and peripheral equipment in 2007. Rich experience in SMT Industry Line. ETON set up more than 15 years, we are leading manufacturer of SMT machine in China. Strong production capacity, ETON have more than 50000 square meter Industrial park in Jiangxi Province, machine capacity more than 50 units/month.
25m flexible SMT automatic production line
Automatic stencil printer machine with pick and place machine, loader, conveyor, unloader, reflow oven to be one automatic line. Automatic line save much labor cost compared with the semiautomatic line, also with higher printing precision could produce high quality electrical products. Here are the automatic SMT line solution layout:
Application
SMT Machine mounter apply to led filed, highspeed mounter T9 suitable for any length led strip light. At present, LED soft Light strips are not only used in the field of interior decoration lighting, but also in urban lighting, landscape lighting, commercial lighting and a Some special lighting collars are only used in the field of interior decoration lighting, but also in urban lighting, landscape lighting, and commercial lighting. And some special lighting fields are very popular.
Our industrial park
The factory belonging to our company has been successfully built, there is 50000 SQM,equipped with advanced processing and manufacturing centers, scientific research buildings, exhibition halls, etc., to ensure quality from the source and further standardize production processes.
Our service
- If you buy our machine,we will arrange engineers to install,debug and training you for free,until you learn to operate the machine.
- We have office in Mumbai and New Delhi,service is very convenient
- Besides India,we also have local engineers in Egypt,Turkey,can provide you with timely service.
- Chinese engineer provide online service
FAQ
Why should you buy from us not from other suppliers?
We are high-tech professional manufacturer of SMT machine with more than 10 years with good quality and reputation. We have rich experience in helping client to start new factory and new line.
"Professional, high-effective, cost-saving" are our advantages.
Are you a trade company or a manufacturer?
We are an professional manufacturer specialized in Screen Printer,SMT Machine, Pick and Place Machine, Reflow Oven, SMT Production line and other SMT Products. Also we have 52000 square meter Industrial Park.
What is your payment terms? What about the trade term?
100% payment before delivery or 50% deposit in advance and the rest before shipment. T/T is OK. You can choose FOB Shenzhen.
