Machine details
|
High capacity
|

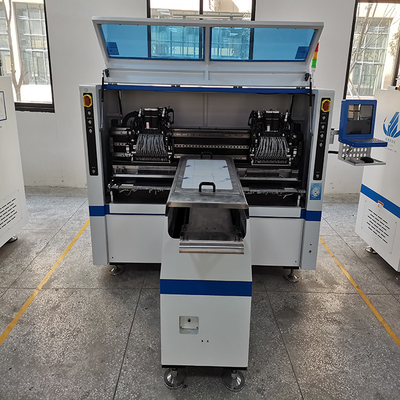

- High-speed magnetic linear motor pick and place machine in led light SMT production line

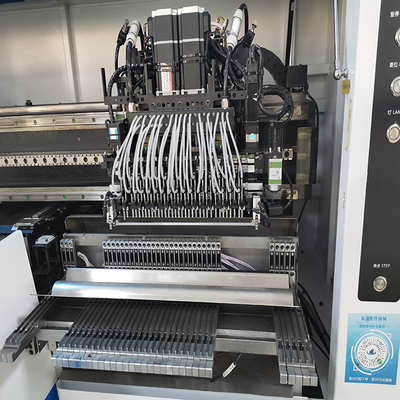

- Two mounting module,17 nozzles pasted on the PCB board at the same time,maximum mounting speed 250000 CPH
|
|
High precision
|
- Automatically fills components to missing coordinates
- MARK visual correction system
- Magnetic linear motor and servo motor,using Israeli technology,ensure the accuracy of X,Y and Z axis
|
|
Power functions
|
- Component:LED,capacitors,resistors,IC,shaped components,etc.
- Application:LED light,like flexible strip,tube,panel light.
|
|
Operation&maintenance
|
- Chinese and English graphical interface,easy to operate
- Free software upgrades for life,can be saved and edited files,arbitrary call
- Easy maintenance:easy maintenance,low cost of replacement parts,low maintenance cost.
|
Machine parameters
| length |
3100mm |
| Width |
2300mm |
| Height |
1550mm |
| Total Weight |
1700kg |
| PCB Length Width |
250mm*any length |
| PCB Thickness |
0.5-1.5mm |
| Mounting Mode |
Group picking and separately placing |
| Mounting Height |
≦5mm |
| Mounting Speed |
250000CPH |
| Components |
LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc. |
| Components Space |
0.5mm |
| No. of Feeders Station |
68 PCS |
| No. of head |
68 PCS |
| Feeding way |
Electric feeder with double motor |
Ship and package
1) shipping: Within 30 days after payment
2) Packaging: Standard export package or customized package
Our attitude
Not only we will provide the fastest, most stable and most complete LED pick and place machine for you, but also we can make the most suitable plan for you to save labor cost.
Company quality principle
ETON has invented the fastest automatic pick and place machine with speed 500000CPH. Since its establishment in 2011, ETON has been committed to the development and production of SMT placement machines and peripheral equipment in 2007. Rich experience in SMT Industry Line. ETON set up more than 15 years, we are leading manufacturer of SMT machine in China. Strong production capacity, ETON have more than 50000 square meter Industrial park in Jiangxi Province, machine capacity more than 50 units/month.
25m flexible SMT automatic production line
Automatic stencil printer machine with pick and place machine, loader, conveyor, unloader, reflow oven to be one automatic line. Automatic line save much labor cost compared with the semiautomatic line, also with higher printing precision could produce high quality electrical products. Here are the automatic SMT line solution layout:
Application
SMT Machine mounter apply to led filed, highspeed mounter T9 suitable for any length led strip light. At present, LED soft Light strips are not only used in the field of interior decoration lighting, but also in urban lighting, landscape lighting, commercial lighting and a Some special lighting collars are only used in the field of interior decoration lighting, but also in urban lighting, landscape lighting, and commercial lighting. And some special lighting fields are very popular.
Certification
ETON obtains a number of intellectual property technologies, including 9 invention patents, 112 Practical patents, 12 software copyrights.ETON is rated as"Shenzhen high-tech enterprise" "Guangdong high-tech enterprise" "China high- tech enterprise""Shenzhen TOP Brand" "2015 LED Technology Innovation Award" "The 4th China LED First Innovation Award" "Industry Special Contribution Award" etc.
Our service
Before buying machine
1) Professional sales manager of LED SMT machine, provide professional suggestion and service to you !
2) 24 hours online service and technical support, solve your questions quickly!
3) Sound company organization and working system, guarantee you a fast delivery!
4) Design and provide the whole SMT processing lines for you based on your budget , workshop covering area with best prices!
After buying machine
1) 1 year free warranty
2) Visit customers regularly and gather information.
3) Provide latest information about technology and equipment.
Exhibition
ETON is the leading manufacturer of global op to-electronic high-speed pick and place machine, the products are exported to more than 20 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt, Turkey, Russia, Brazil etc. We go to the exhibition every year. Our team is professional in the SMT field. And We go to the exhibition every year.
FAQ
Why should you buy from us not from other suppliers?
We are high-tech professional manufacturer of SMT machine with more than 10 years with good quality and reputation. We have rich experience in helping client to start new factory and new line.
"Professional, high-effective, cost-saving" are our advantages.
Are you a trade company or a manufacturer?
We are an professional manufacturer specialized in Screen Printer,SMT Machine, Pick and Place Machine, Reflow Oven, SMT Production line and other SMT Products. Also we have 52000 square meter Industrial Park.
What is your payment terms? What about the trade term?
100% payment before delivery or 50% deposit in advance and the rest before shipment. T/T is OK. You can choose FOB Shenzhen.
