Machine details
|
High capacity
|

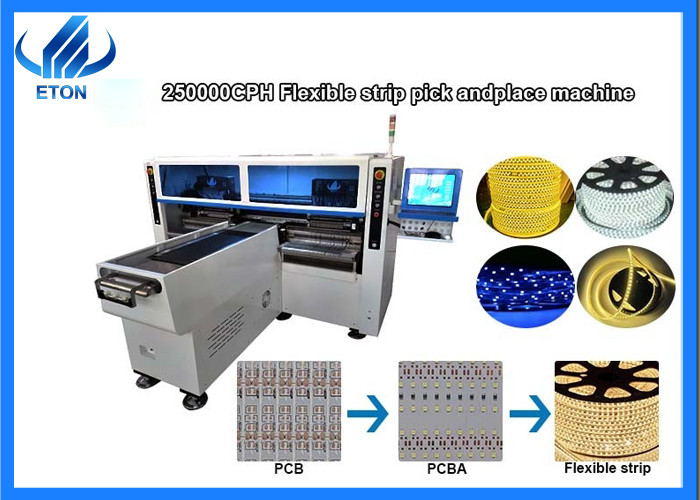

- High-speed magnetic linear motor pick and place machine in led light SMT production line
- Two mounting module,17 nozzles pasted on the PCB board at the same time,maximum mounting speed 250000 CPH
|
|
High precision
|
- Automatically fills components to missing coordinates
- MARK visual correction system
- Magnetic linear motor and servo motor,using Israeli technology,ensure the accuracy of X,Y and Z axis
|
|
Power functions
|
- Component:LED,capacitors,resistors,IC,shaped components,etc.
- Application:LED light,like flexible strip,tube,panel light.
|
|
Operation&maintenance
|
- Chinese and English graphical interface,easy to operate
- Free software upgrades for life,can be saved and edited files,arbitrary call
- Easy maintenance:easy maintenance,low cost of replacement parts,low maintenance cost.
|
Machine parameters
| length |
3100mm |
| Width |
2300mm |
| Height |
1550mm |
| Total Weight |
1700kg |
| PCB Length Width |
250mm*any length |
| PCB Thickness |
0.5-1.5mm |
| Mounting Mode |
Group picking and separately placing |
| Mounting Height |
≦5mm |
| Mounting Speed |
250000CPH |
| Components |
LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc. |
| Components Space |
0.5mm |
| No. of Feeders Station |
68 PCS |
| No. of head |
68 PCS |
| Feeding way |
Electric feeder with double motor |
Ship and package
1) shipping: Within 30 days after payment
2) Packaging: Standard export package or customized package
Our attitude
Not only we will provide the fastest, most stable and most complete LED pick and place machine for you, but also we can make the most suitable plan for you to save labor cost.
Company quality principle
ETON has invented the fastest automatic pick and place machine with speed 500000CPH. Since its establishment in 2011, ETON has been committed to the development and production of SMT placement machines and peripheral equipment in 2007. Rich experience in SMT Industry Line. ETON set up more than 15 years, we are leading manufacturer of SMT machine in China. Strong production capacity, ETON have more than 50000 square meter Industrial park in Jiangxi Province, machine capacity more than 50 units/month.
25m flexible SMT automatic production line
Automatic stencil printer machine with pick and place machine, loader, conveyor, unloader, reflow oven to be one automatic line. Automatic line save much labor cost compared with the semiautomatic line, also with higher printing precision could produce high quality electrical products. Here are the automatic SMT line solution layout:
Application
SMT Machine mounter apply to led filed, highspeed mounter T9 suitable for any length led strip light. At present, LED soft Light strips are not only used in the field of interior decoration lighting, but also in urban lighting, landscape lighting, commercial lighting and a Some special lighting collars are only used in the field of interior decoration lighting, but also in urban lighting, landscape lighting, and commercial lighting. And some special lighting fields are very popular.
Our clients
Our products are exported to more than 20 countries and regions, we have cooperated with many big companies in Turkey, India, Pakistan, Egypt, South Africa and other regions, such as SURYA, Calcom, TCL, KENDAL, Signify, Havells, POLYCAB, etc. At the same time, our machines are suitable for all kinds of LED lights and LED electronic fields.
Related machine
We can provide a whole SMT production line,led light production line:
1.Pick and place machine
2. Loader machine
3. Conveyor machine
4. Stencil printer machine
5. Reflow oven machine
6. Unloader machine
7. Solder paste mixer
8. Roll to roll led strip light assembly machine
Exhibition
ETON is the leading manufacturer of global op to-electronic high-speed pick and place machine, the products are exported to more than 20 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt, Turkey, Russia, Brazil etc. We go to the exhibition every year. Our team is professional in the SMT field. And We go to the exhibition every year.
FAQ
Q. What is your actual speed of your products?
A. For the actual speed of the machine which is constrained by many factors, that related to the number of the components, the time to send PCB board and receive the board, etc. And is decide for the actual products and needs.
Q.What is your merits of the machine to others production?
A. Initially, we have a strong R&D department for studying our productions, and our clients can enjoy free up-grade of the machine to get latest information about technology and equipment, besides, we have a 52000 square meters industrial park to serve the production, assembly, and commissioning of our machines.
