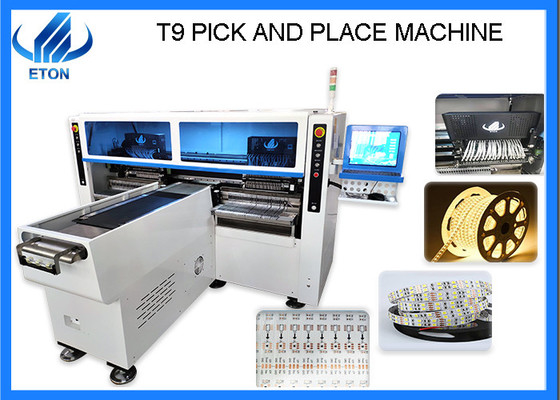

Machine details
|
High capacity
|
- High-speed magnetic linear motor pick and place machine in led light SMT production line
- Two mounting module,17 nozzles pasted on the PCB board at the same time,maximum mounting speed 250000 CPH
|
|
High precision
|
- Automatically fills components to missing coordinates
- MARK visual correction system
- Magnetic linear motor and servo motor,using Israeli technology,ensure the accuracy of X,Y and Z axis
|
|
Power functions
|
- Component:LED,capacitors,resistors,IC,shaped components,etc.
- Application:LED light,like flexible strip,tube,panel light.
|
|
Operation&maintenance
|
- Chinese and English graphical interface,easy to operate
- Free software upgrades for life,can be saved and edited files,arbitrary call
- Easy maintenance:easy maintenance,low cost of replacement parts,low maintenance cost.
|
Machine parameters
| length |
3100mm |
| Width |
2300mm |
| Height |
1550mm |
| Total Weight |
1700kg |
| PCB Length Width |
250mm*any length |
| PCB Thickness |
0.5-1.5mm |
| Mounting Mode |
Group picking and separately placing |
| Mounting Height |
≦5mm |
| Mounting Speed |
250000CPH |
| Components |
LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc. |
| Components Space |
0.5mm |
| No. of Feeders Station |
68 PCS |
| No. of head |
68 PCS |
| Feeding way |
Electric feeder with double motor |

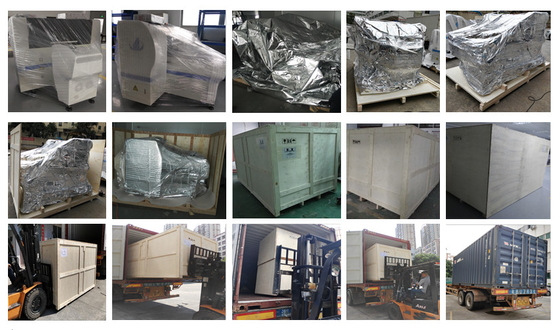

Ship and package
It takes about 3 working days to arrive your address by DHL, TNT, FEDEX. And it take about 25-35 workdays to arrive your address by sea.
Professional goods shipping forwarder.
Company quality principle
1.10 years development history.
2.Independent R&D Exclusive Patented technology.
3.80% large and listed LED factory are our client.
4.Top 1 in high-speed pick and place machine in China.
5.We can provide you with the whole production line.
6.Our software is R&D independently.We can offer software upgrade for lifetime for free
7.We have 50,000 square meters of industrial park. The production strength is abundant, occupies the first place in the domestic profession.
25m flexible SMT automatic production line
Automatic stencil printer machine with pick and place machine, loader, conveyor, unloader, reflow oven to be one automatic line. Automatic line save much labor cost compared with the semiautomatic line, also with higher printing precision could produce high quality electrical products. Here are the automatic SMT line solution layout:
Application
SMT Machine mounter apply to led filed, highspeed mounter T9 suitable for any length led strip light. At present, LED soft Light strips are not only used in the field of interior decoration lighting, but also in urban lighting, landscape lighting, commercial lighting and a Some special lighting collars are only used in the field of interior decoration lighting, but also in urban lighting, landscape lighting, and commercial lighting. And some special lighting fields are very popular.

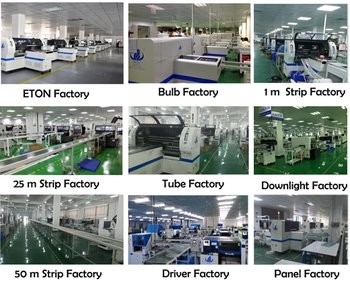

Our clients
Related machine
We can provide a whole SMT production line,led light production line:
1.Pick and place machine
2. Loader machine
3. Conveyor machine
4. Stencil printer machine
5. Reflow oven machine
6. Unloader machine
7. Solder paste mixer
8. Roll to roll led strip light assembly machine
Exhibition
The features of ETON LED chip mounter
1. ETON is long history and good experience at led chip mounter machine, especially the high speed mounter and super high speed mounter. We got more than 90% big led factory market in China. Many big Chinese brand are our clients, such as the Yankon, Lifud, MLS, Foshan Lighting, NVC, etc.
2. ETON Machine is cheaper compared with same capacity. We have different speed module, like the 40000 cph, 80000 cph, 180000 cph, 250000 cph and 500000cph. With more choose if you cooperation with us.
3.ETON machine is multifunctional and intelligent. Suitable for all kinds of led chip and electrical components, such as the IC, Resistor, Capacitor, Terminal , Shaped components, etc
4. ETON machine could be customized according to your product design with strong R&D power.
