Technical parameter
| Dimension |
L*W*H 2550*1650*1550MM |
| Weight |
1700kg |
| Mounting Heads |
12 Heads |
| No. of Feeder Stations |
28 Feeders |
| Components |
LED, capacitors, resistors, shaped components, IC, etc. |
| Mounting Speed |
45000CPH |
| Components Size |
Max height:15MM Min:0402 |
| Power |
380V 50Hz |
| X.Y Axis Driving |
High-end magnetic Linear motor + servo motor |

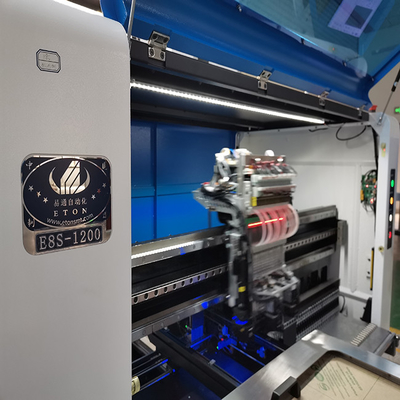

Machine Parts
Application

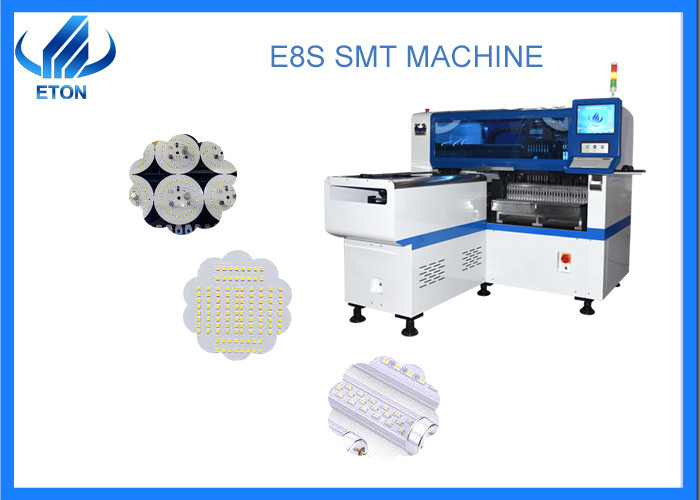

Multi-functional machine can mount many kinds of products, such as DOB, bulb, lens, linear bulbs, Led corn light, flexible light
strip, power driver, panel light, ceiling light,electric board, display screen, down-light,streetlight, etc.

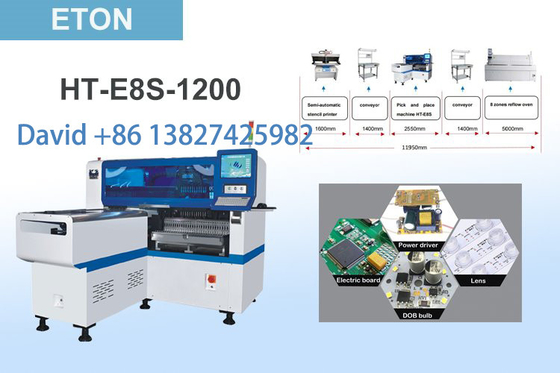

HT-E8S-1200 is Multifunctional fully automatic pick and place machine.
12 nozzle heads can pick components at the same time.
Use Drag chain adopt high-end magnetic linear motor Imported from Germany IGUS.
2 sets of imported camera can vision for fight identification, mark correction.
It is suitable for kinds of product to produce, such as: power driver, electric board, lens, DOB bulb, linear bulb, household appliance etc.
Main features
Drive system: high-end magnetic linear motor + servo motor.
Component: Min size 0402, Max height 18mm.
Vision system: 2 sets of imported camera vision alignment flight identification, mark correction.
Loading system: Non-stop material re-loading function.
Coordinates: Auto-optimization after coordinates generated.
Up to 12 nozzles head: can group picking and separately placing, separately picking and separately placing.
Feeding system: Electronic feeder feeding system.
Company show
We are one of leading manufacturer of SMT machine in China. Pick and place machine is our main product, which have multifunctional and high speed machine. Also, we provide SMT line solution.
We have over 10 LED lighting field experience sharing, provide the most suitable program to every clients, eg: India, Vietnam, Tunisia, Egypt, Turkey , Russia, Brazil, etc.
Professional R&D Team
Certificate
Top Brand in China
Free install & training
Software upgrade freely whole lifetime
Exhibition show
Our company has many exhibition, domestic and foreign. For example: India, Istanbul, Turkey, Guangzhou Guanya, Chongqin LED lighting, etc.
Related machine
Such as: pick and place machine, reflow oven, loader, conveyor, etc.
| Q: Can we customize the machine? |
| A: Sure, all of our machine can be customized. |
| Q: Is it easy to operate ? |
| A: Yes, the soft language is English or Chinese. And we can provide free install and training. If there is any doubt in the process of operating the machine, please feel free contact us. In addition, we have local engineer in Turkey, India, Egypt . |
| Q:How about the warranty |
| A: We support 1 year warranty from delivery and lifetime maintenance service. Provide one to one after-sale service. |
| Q: Do you have the product in stock? |
| A: Sometimes we have some in stock for ship, but we need do machine test before shipping. Usually, the delivery date is about 20 days upon the full payment. |
